The Ant Esports VM45 is engineered for gamers and creators who want high performance in a compact Micro-ATX footprint without compromising cooling or aesthetics. The case features a premium brushed-finish front mesh for unrestricted airflow, complemented by a tempered glass side panel that puts your entire build on display.
With four pre-installed cooling fans, support for multiple radiators, and excellent cable management options, the VM45 is ready to power next-generation gaming rigs and high-efficiency workstations. Designed for space-saving environments such as home offices, studio desks, or compact gaming setups, the VM45 delivers exceptional thermals and stylish presentation in one sleek package.

Whether you're building your first PC or upgrading to a more efficient form factor, the VM45 provides the perfect balance of performance, compatibility, and clean modern aesthetics.

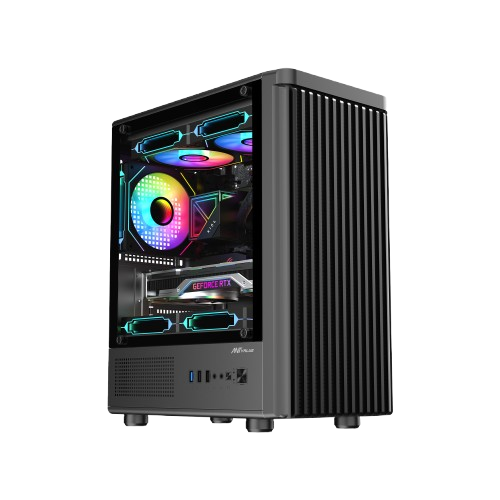

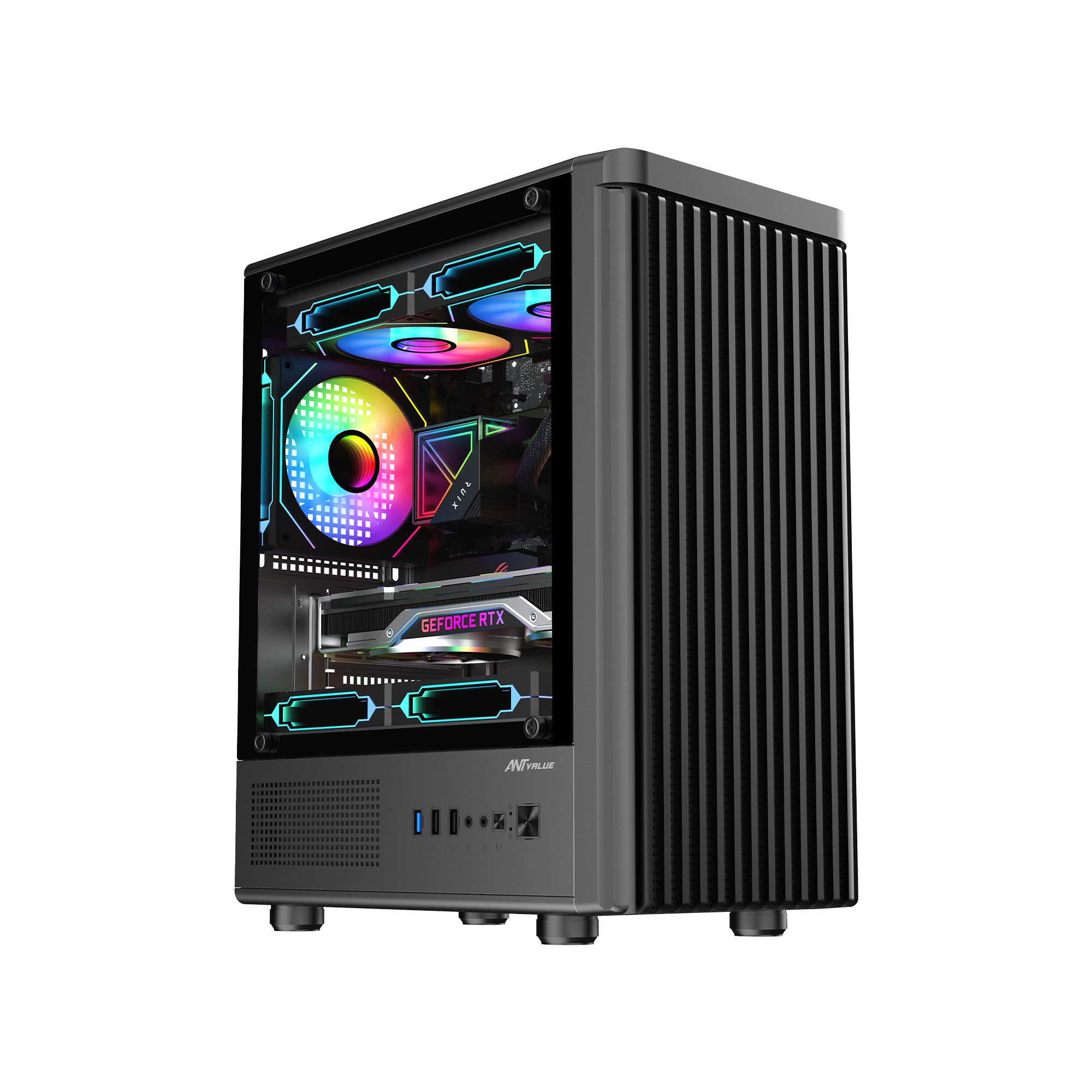

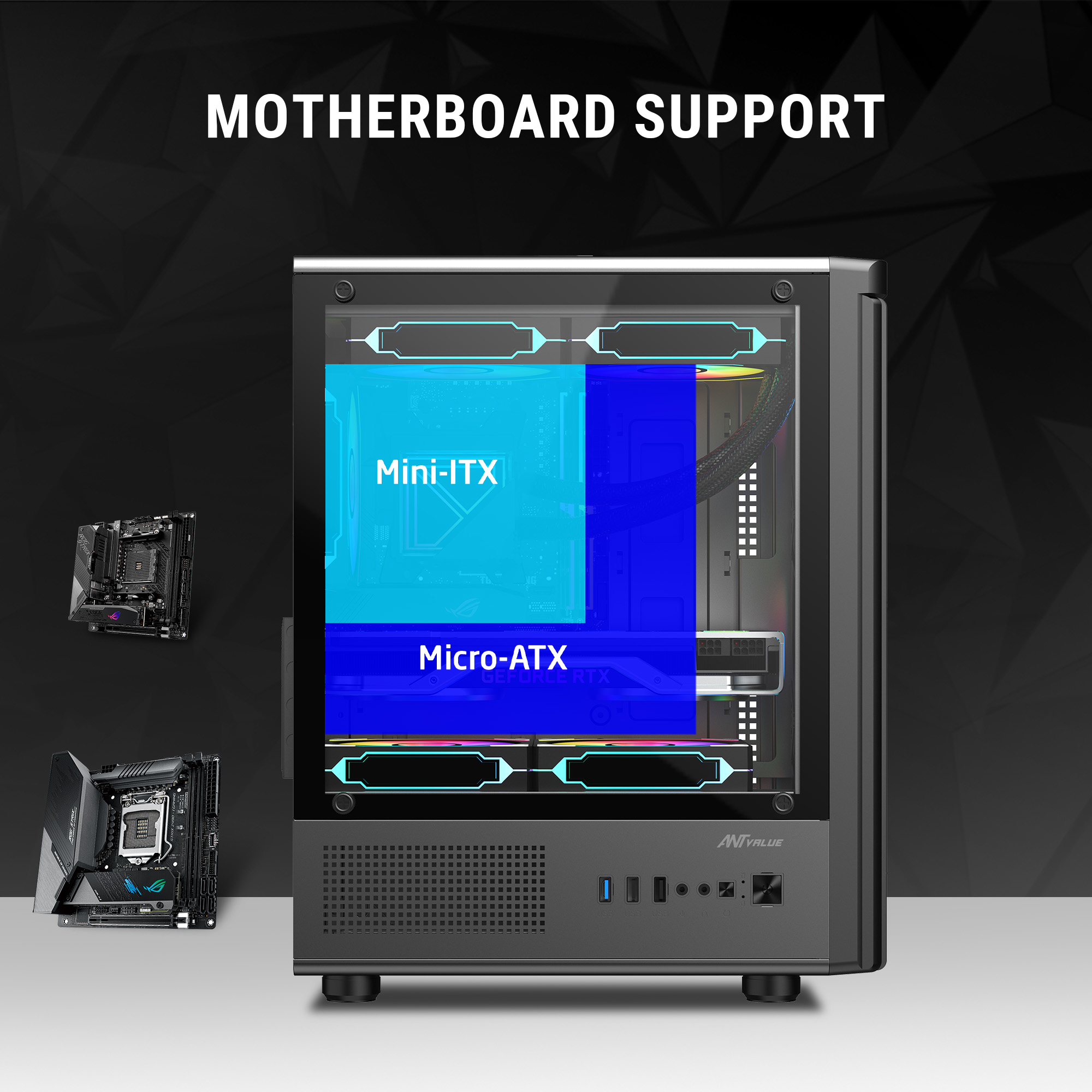

The Ant Esports VM45 is a Micro-ATX/ITX case designed for users who want strong cooling ability and clean aesthetics in a space-efficient frame. At just 295 × 190 × 405 mm, it fits easily on desks or tight spaces while still supporting high-performance hardware.

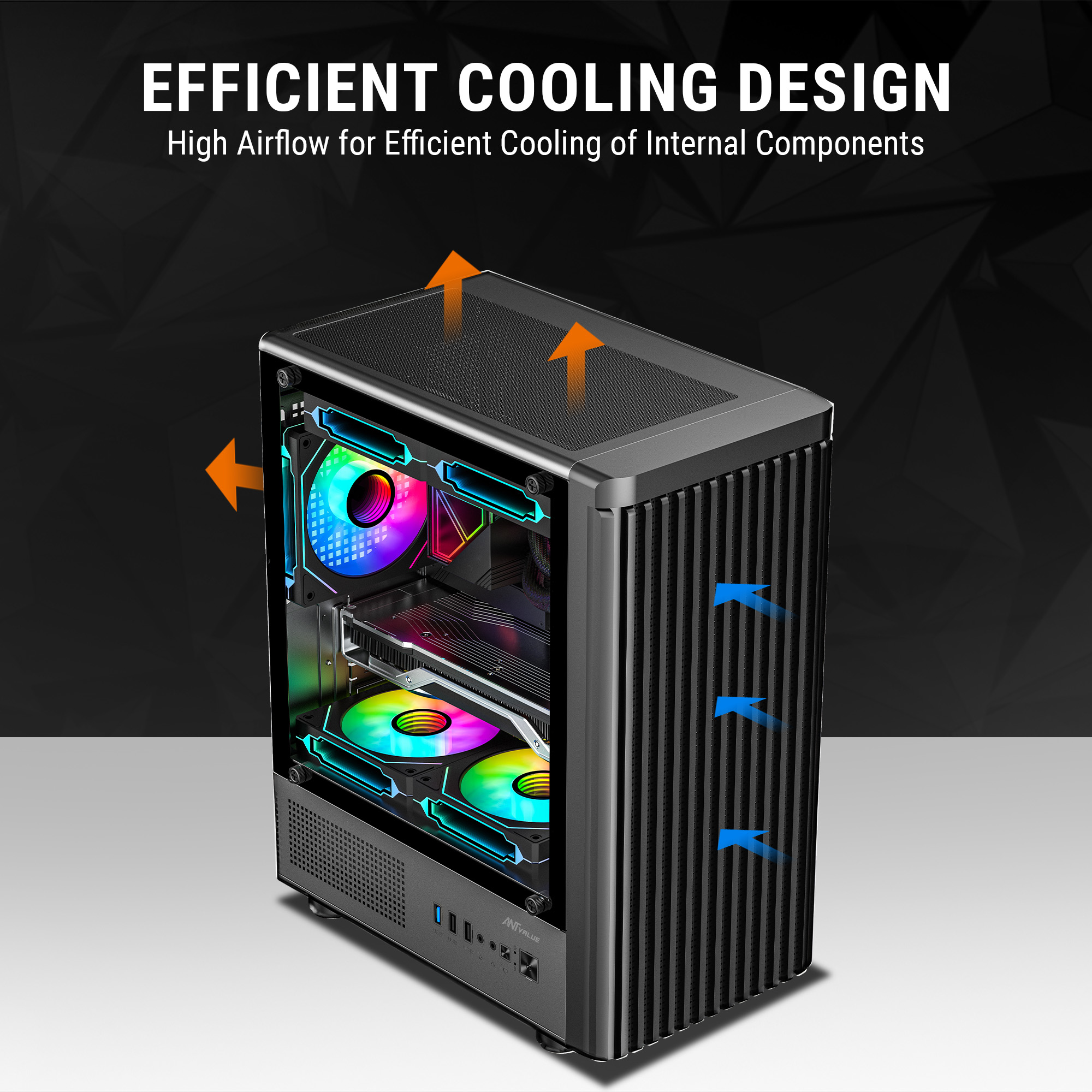

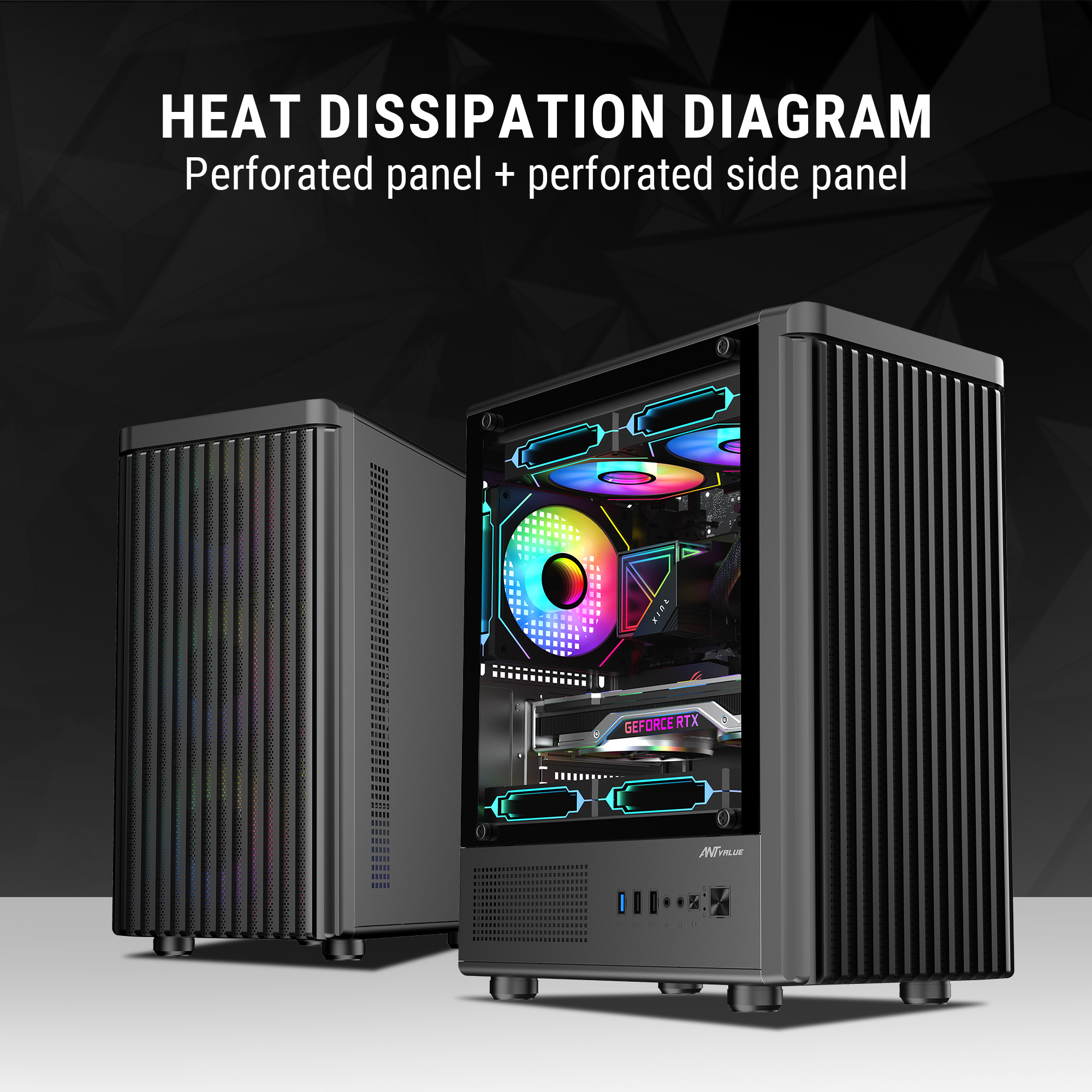

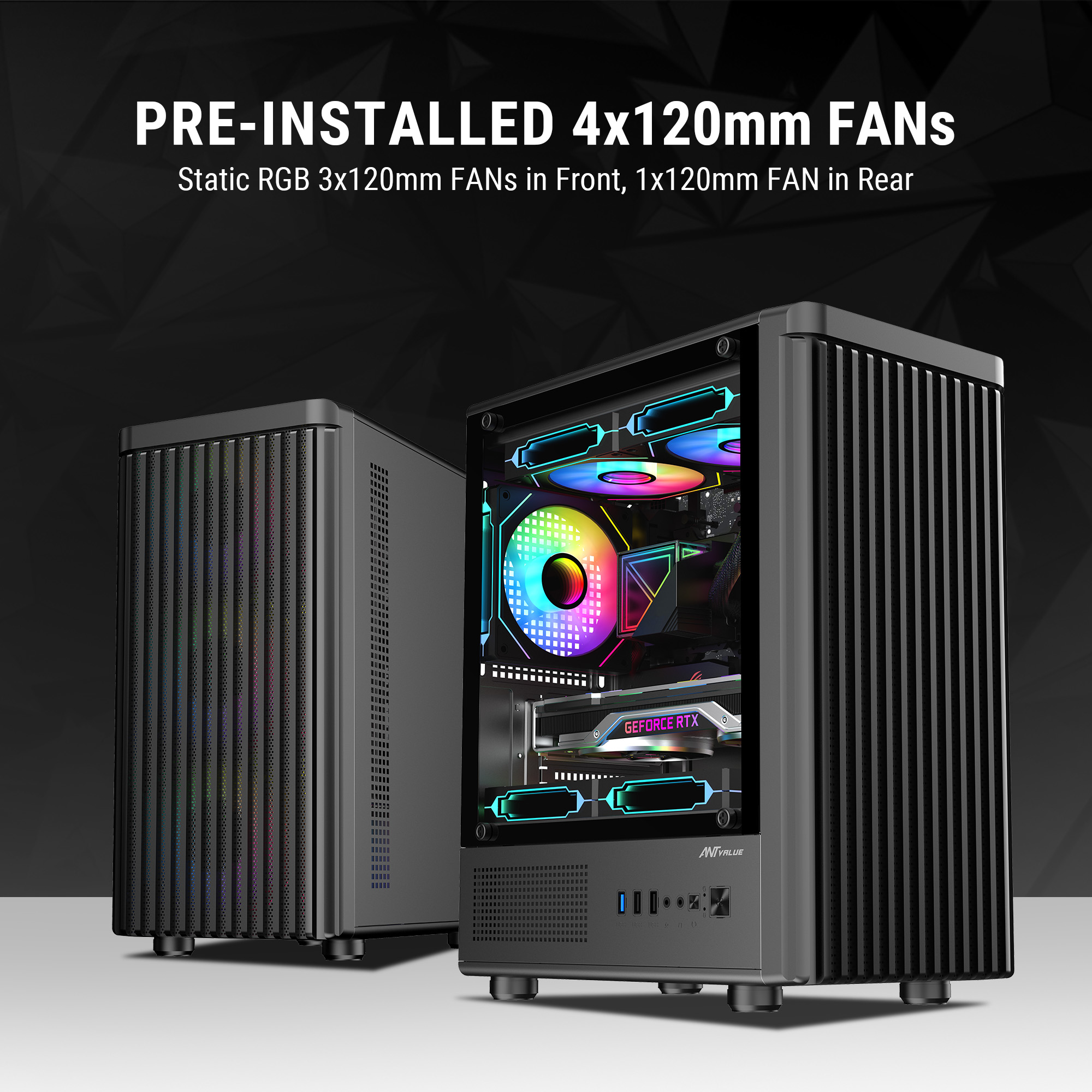

Equipped with three 120mm front intake fans and one 120mm exhaust fan, the case ensures optimal airflow right out of the box. Additional fan mounts on the top and bottom let users further enhance thermal performance, while support for a 240mm top radiator makes the VM45 liquid-cooling ready.

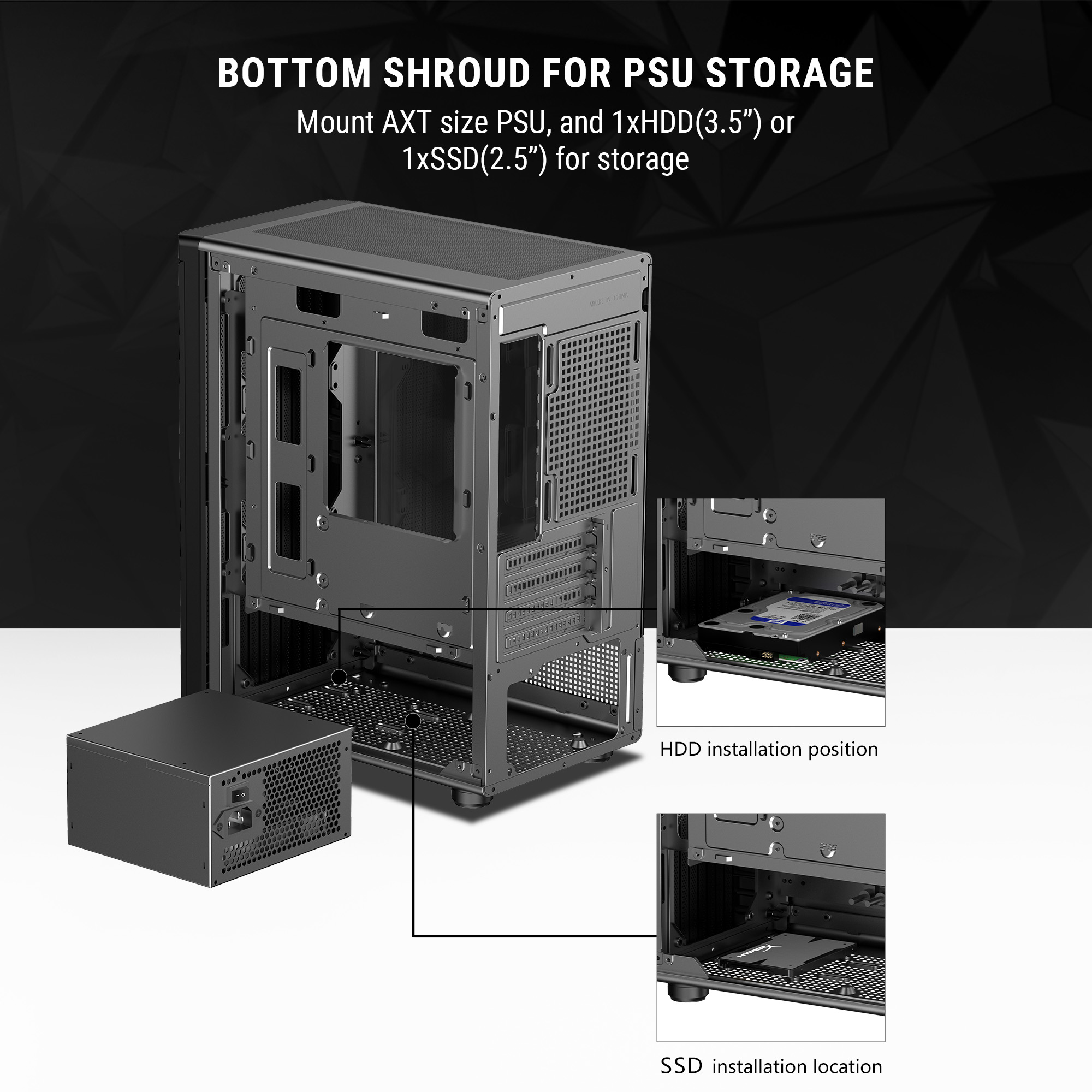

Inside, the case supports 1 HDDs + 1 SSDs, GPUs up to 280mm, and CPU coolers up to 160mm, giving users enough flexibility for most mainstream and enthusiast configurations.

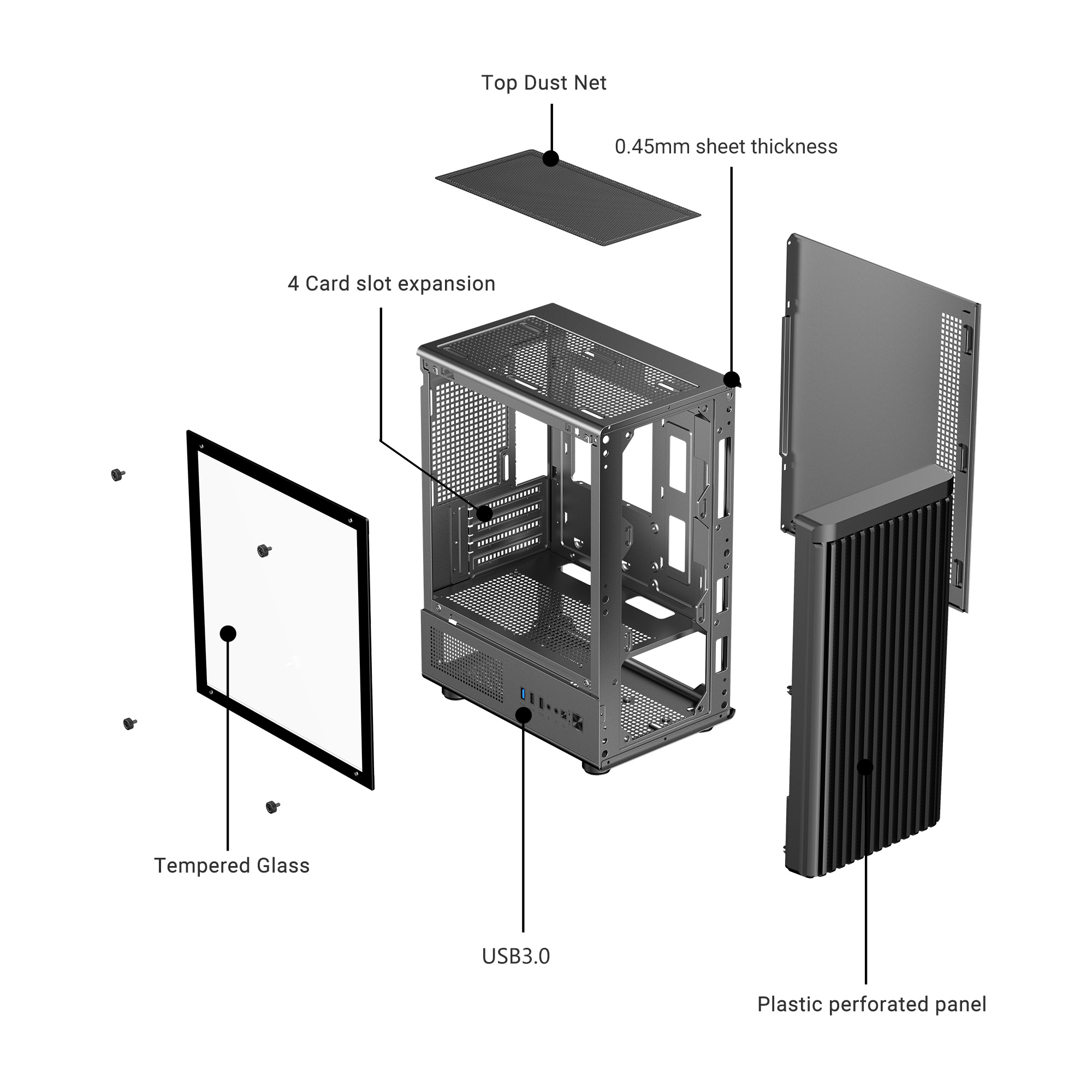

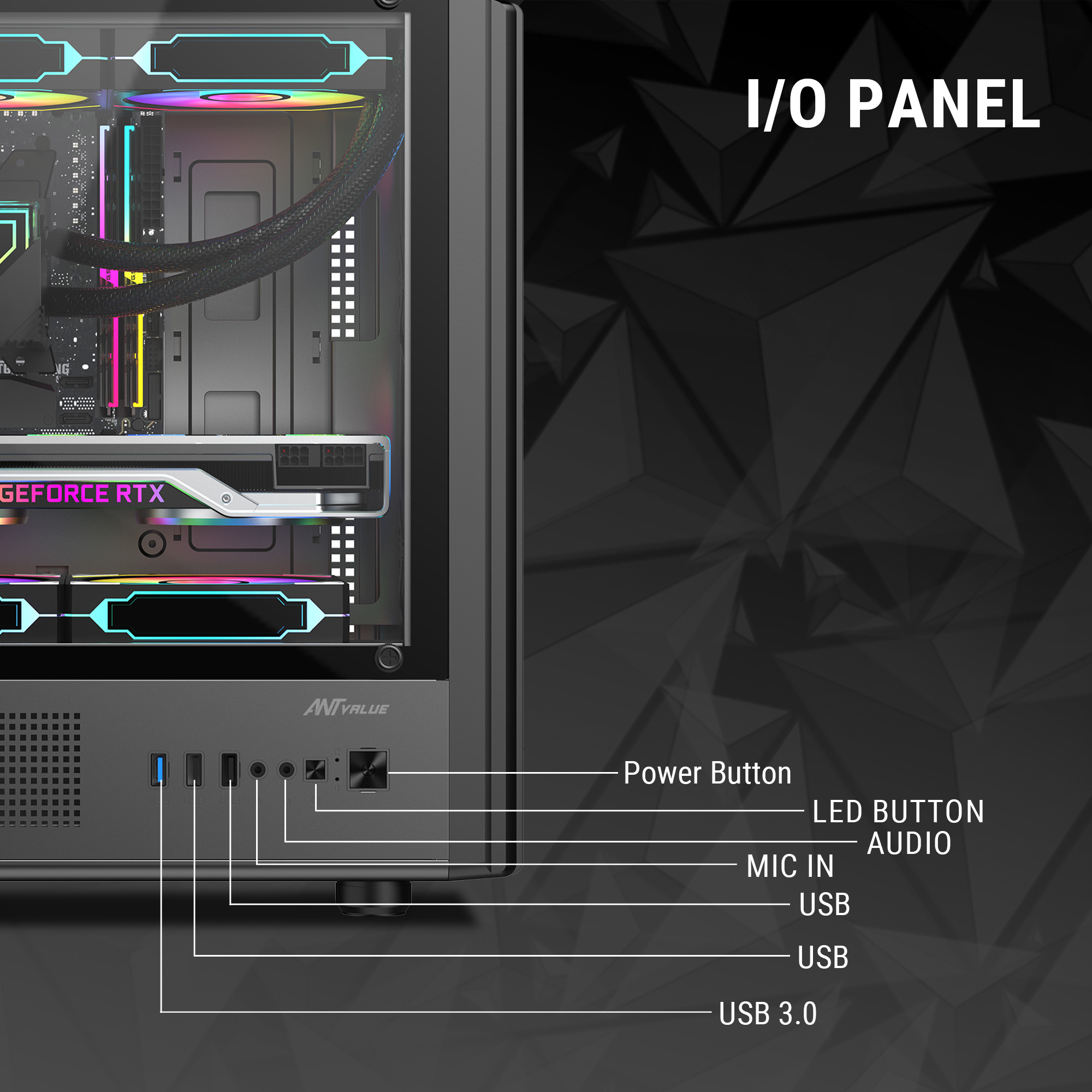

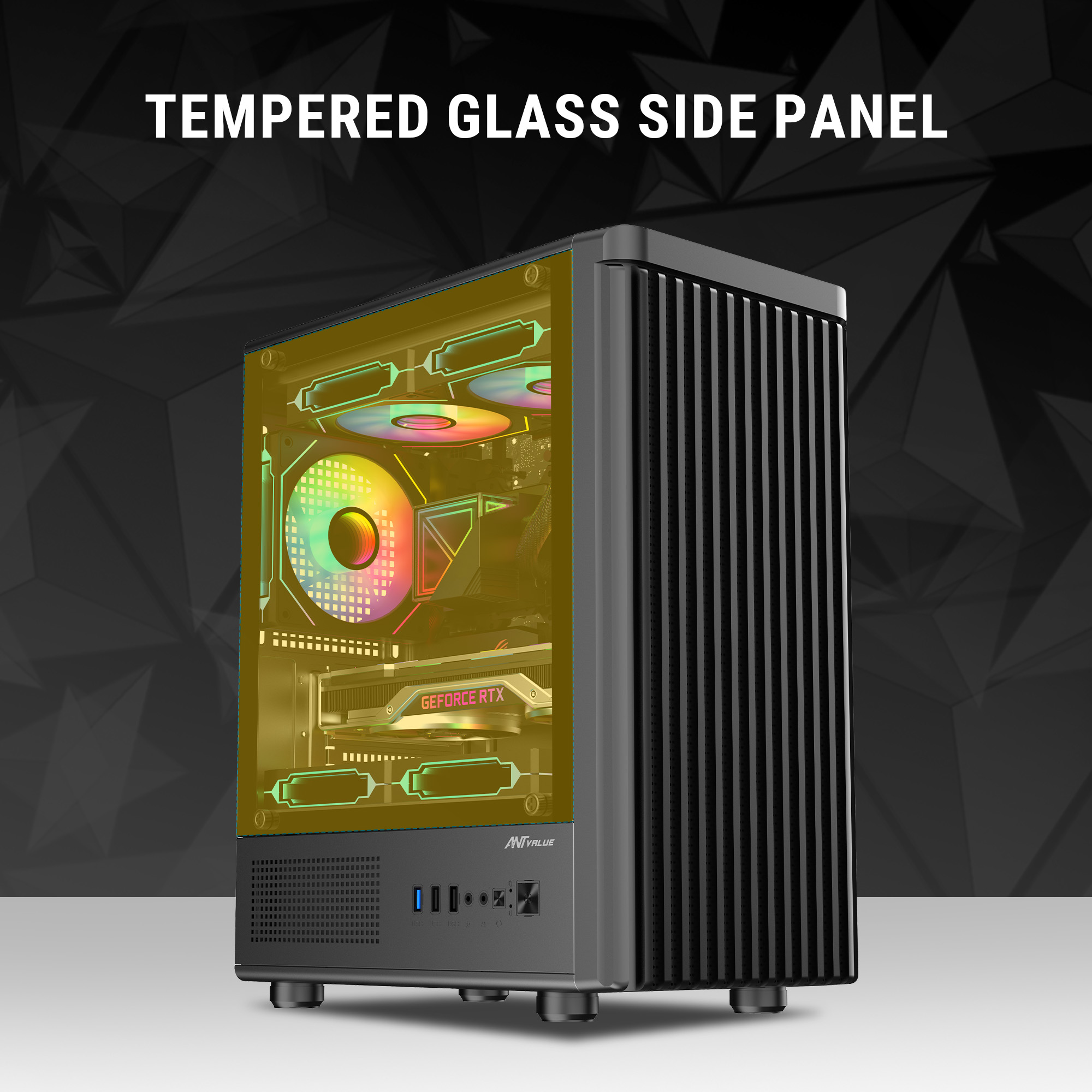

The tempered glass side panel adds a premium touch, offering a full view of the RGB components inside. The front I/O includes USB 3.0, USB 2.0, HD Audio, Mic input, Power & Reset buttons, and dedicated drive indicators, ensuring convenient, modern connectivity.

The Ant Esports VM45 is the perfect blend of airflow, compact design, and stylish presentation—ideal for gamers, creators, and everyday PC users.

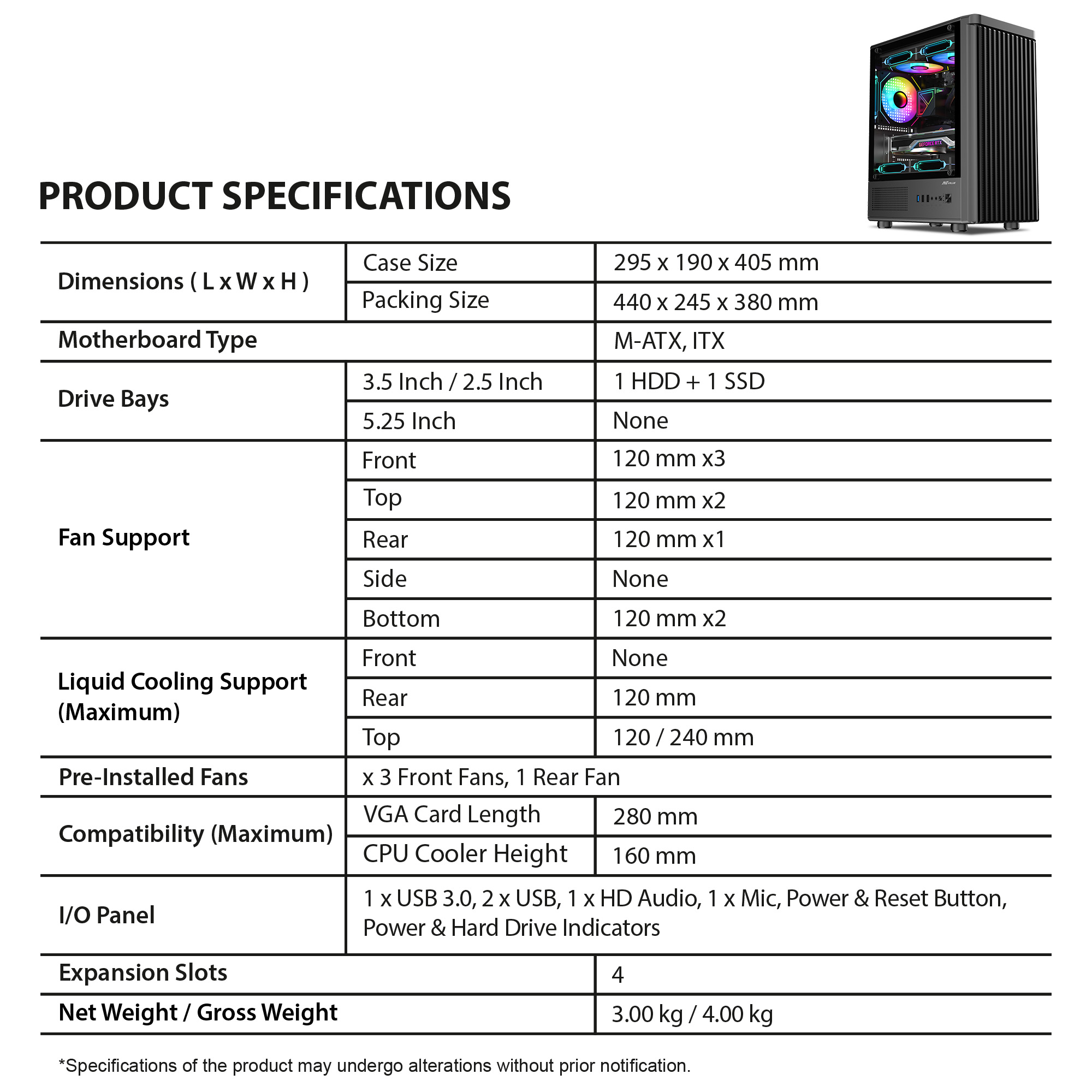

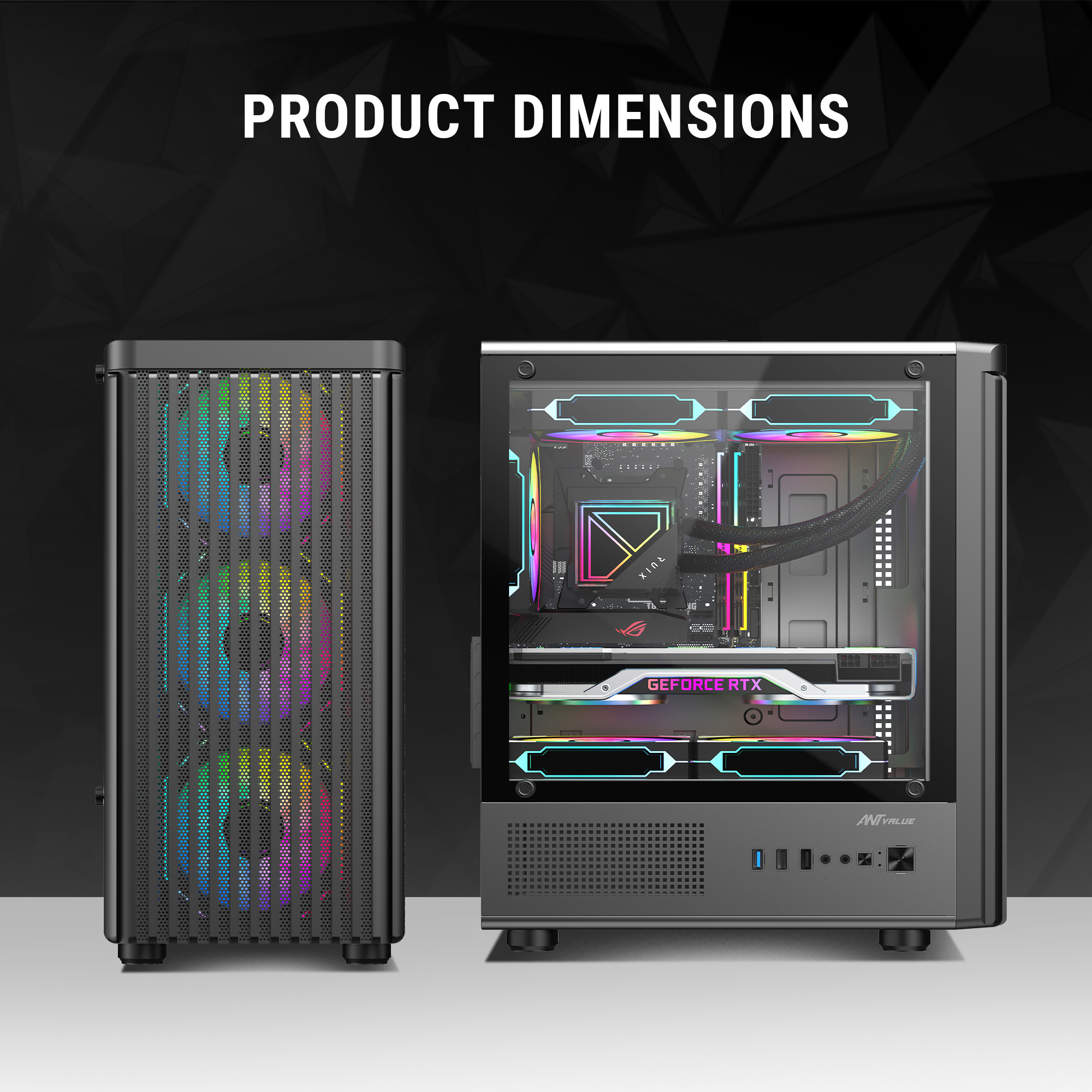

Dimensions (L x W x H)
Case Size295 x 190 x 405 mm
Packing Size440 x 245 x 380 mm

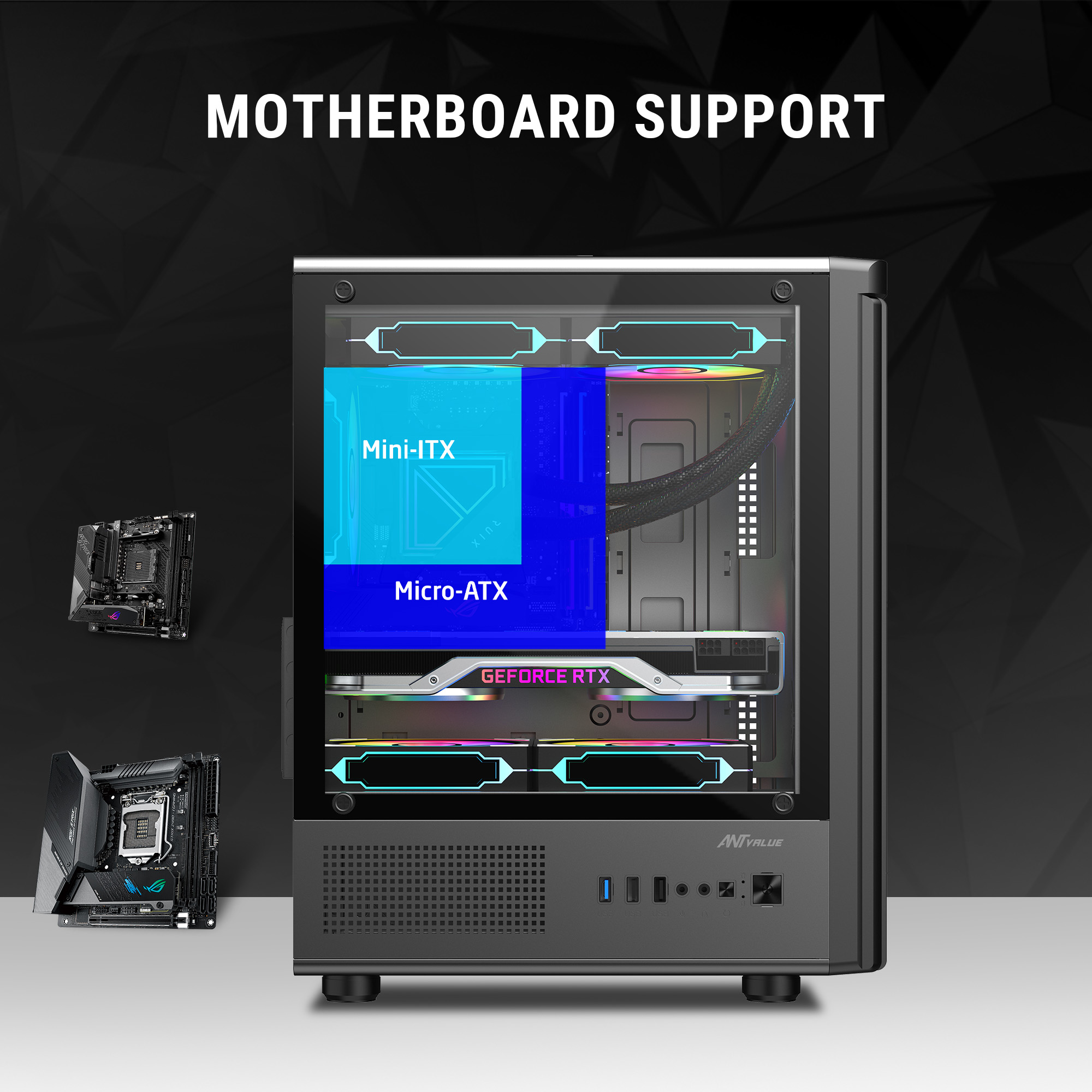

Motherboard TypeM-ATX, ITX
Drive Bays

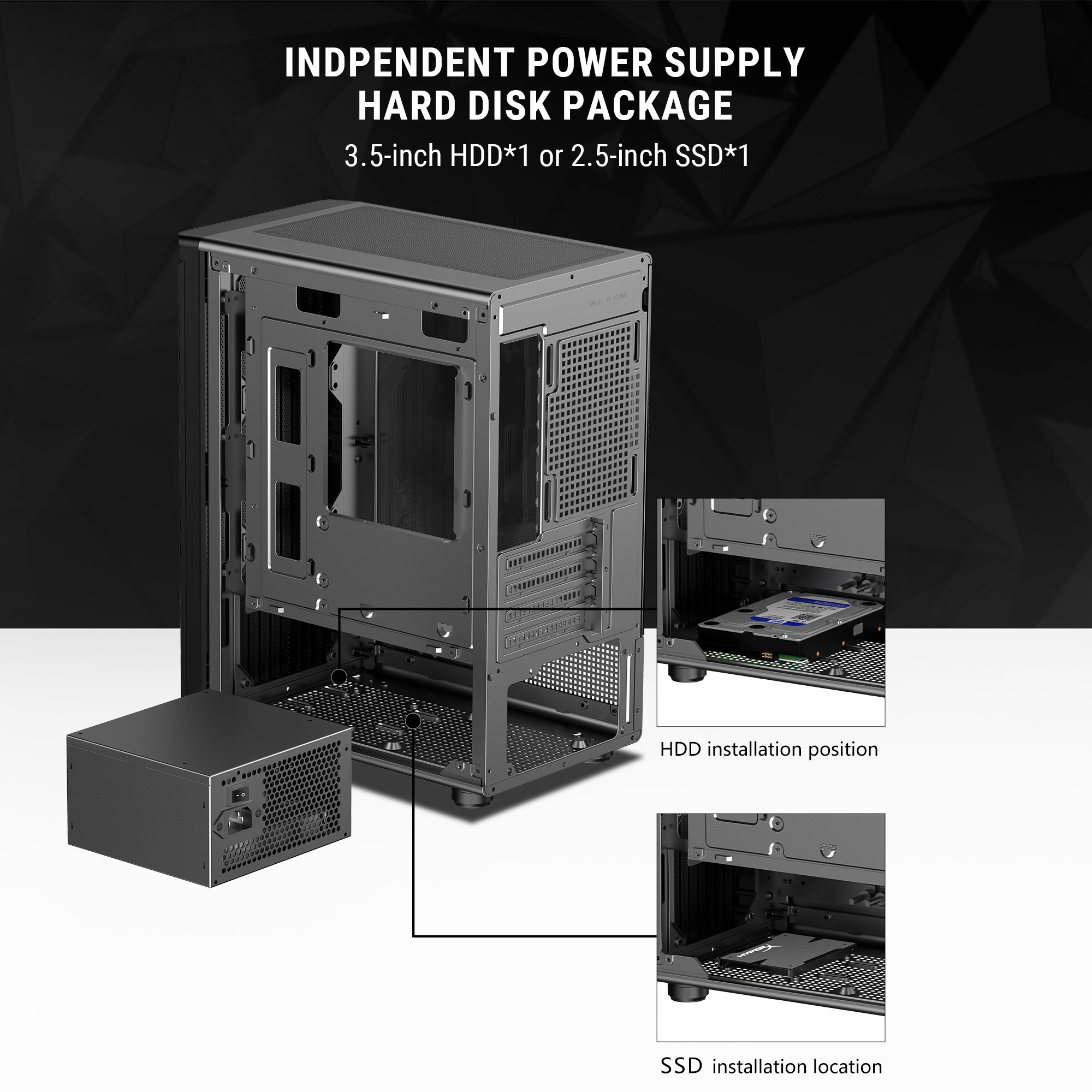

3.5 Inch / 2.5 Inch1 HDD + 1 SSD
5.25 InchNone

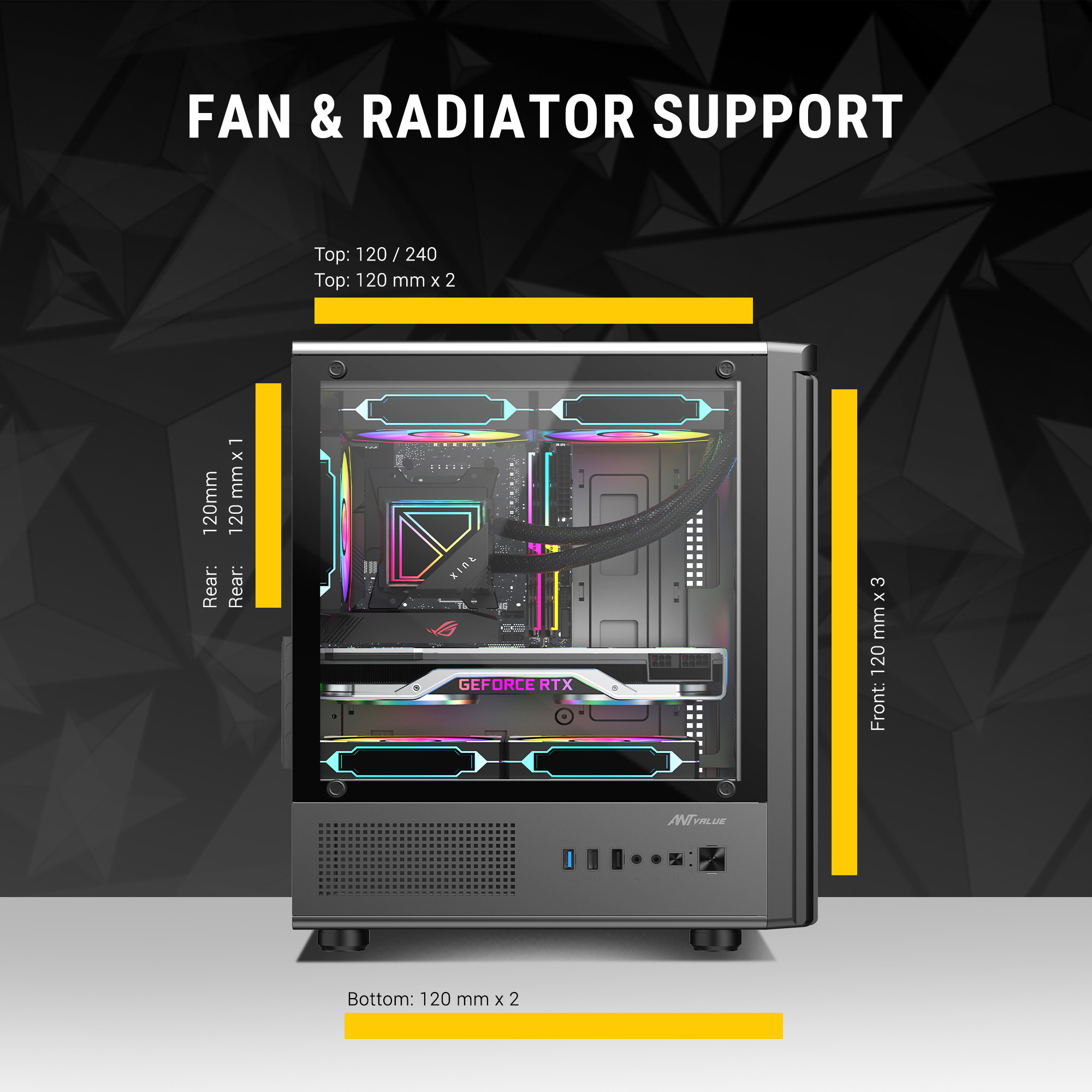

Fan Support
Front120 mm x3
Top120 mm x2
Rear120 mm x1
SideNone
Bottom120 mm x2
Liquid Cooling Support (Maximum)
FrontNone
Rear120 mm

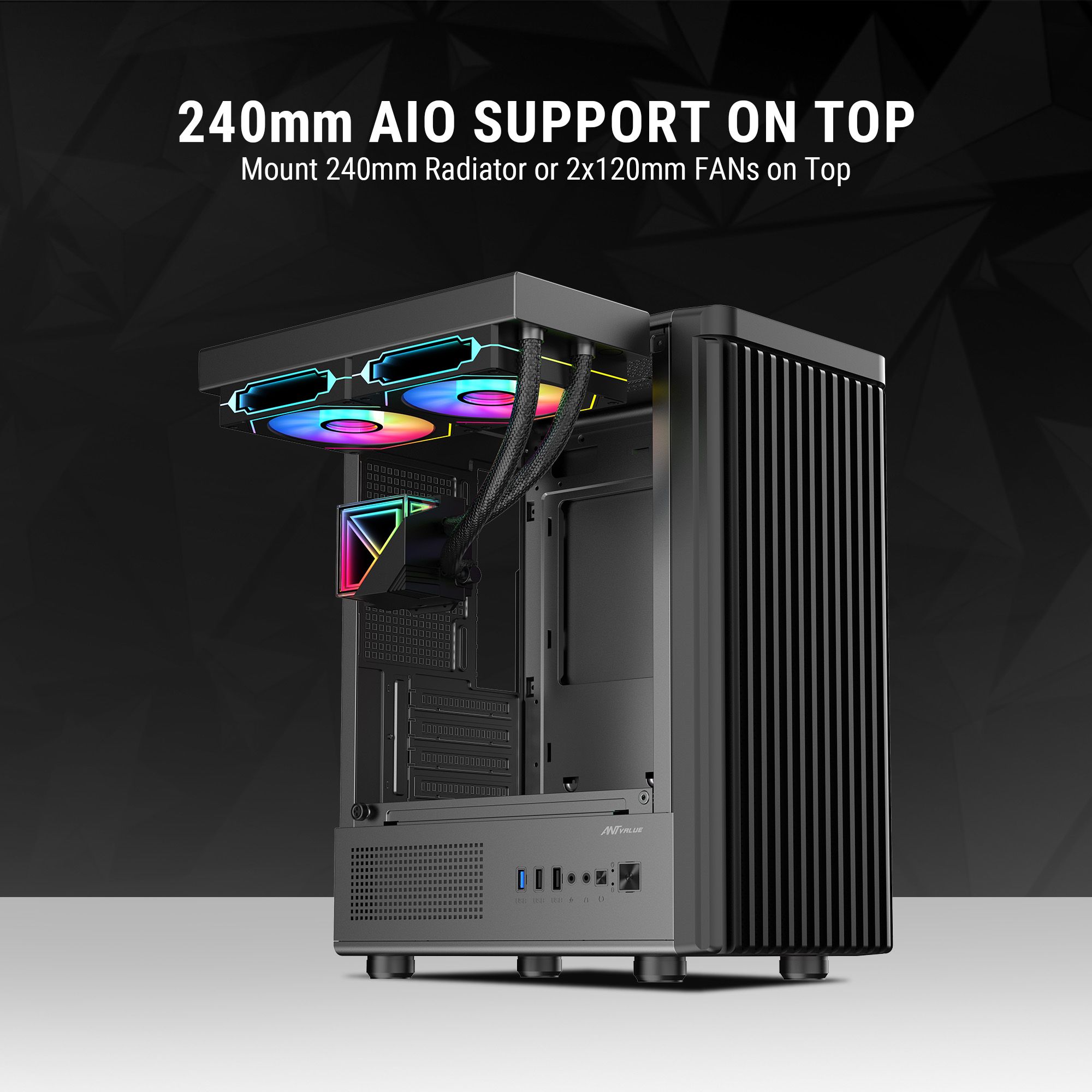

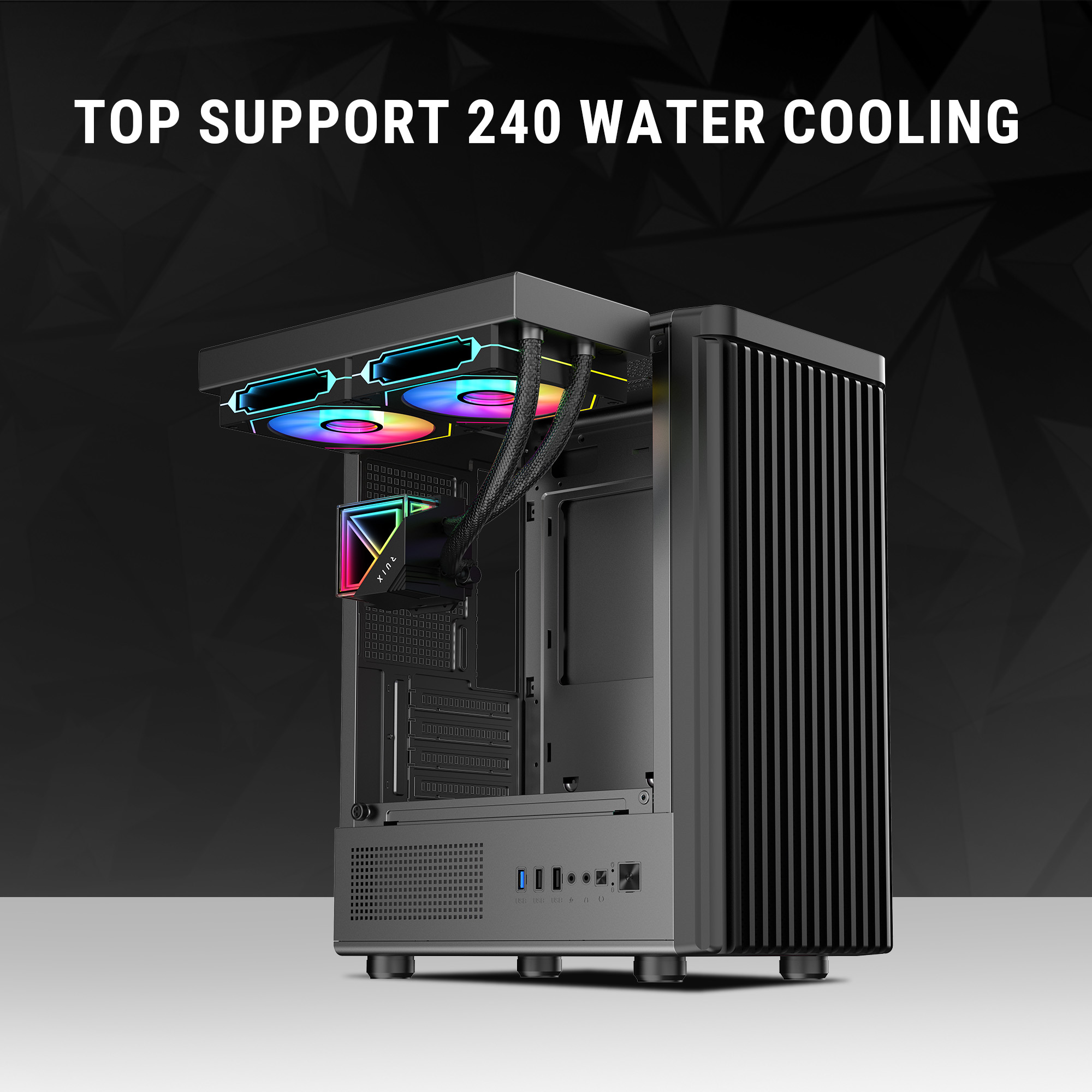

Top120 / 240 mm
Pre-Installed Fansx 3 Front Fans, 1 Rear Fan
Compatibility (Maximum)
VGA Card Length280 mm
CPU Cooler Height160 mm

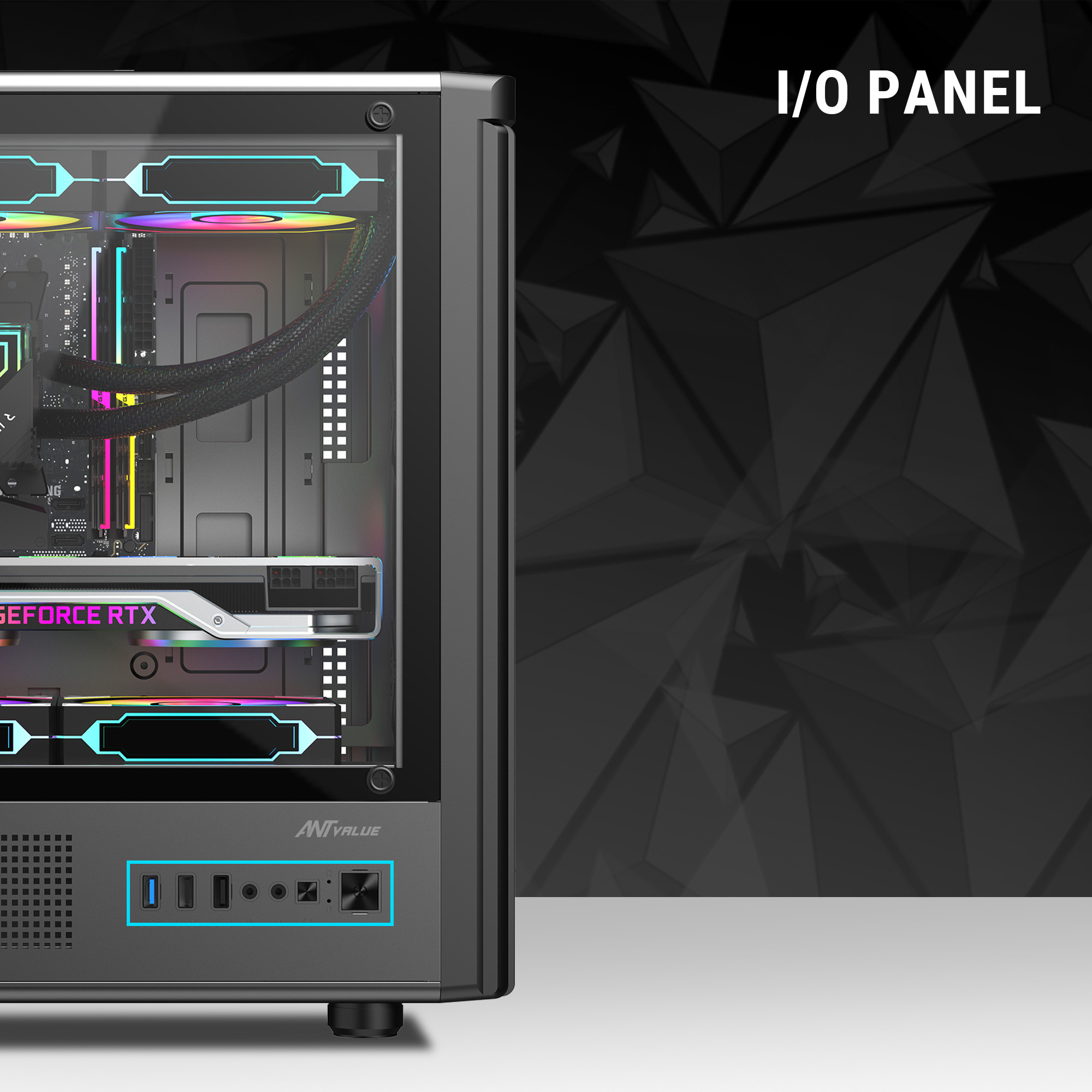

I/O Panel1 x USB 3.0, 2 x USB, 1 x HD Audio, 1 x Mic, Power & Reset Button, Power & Hard Drive Indicators

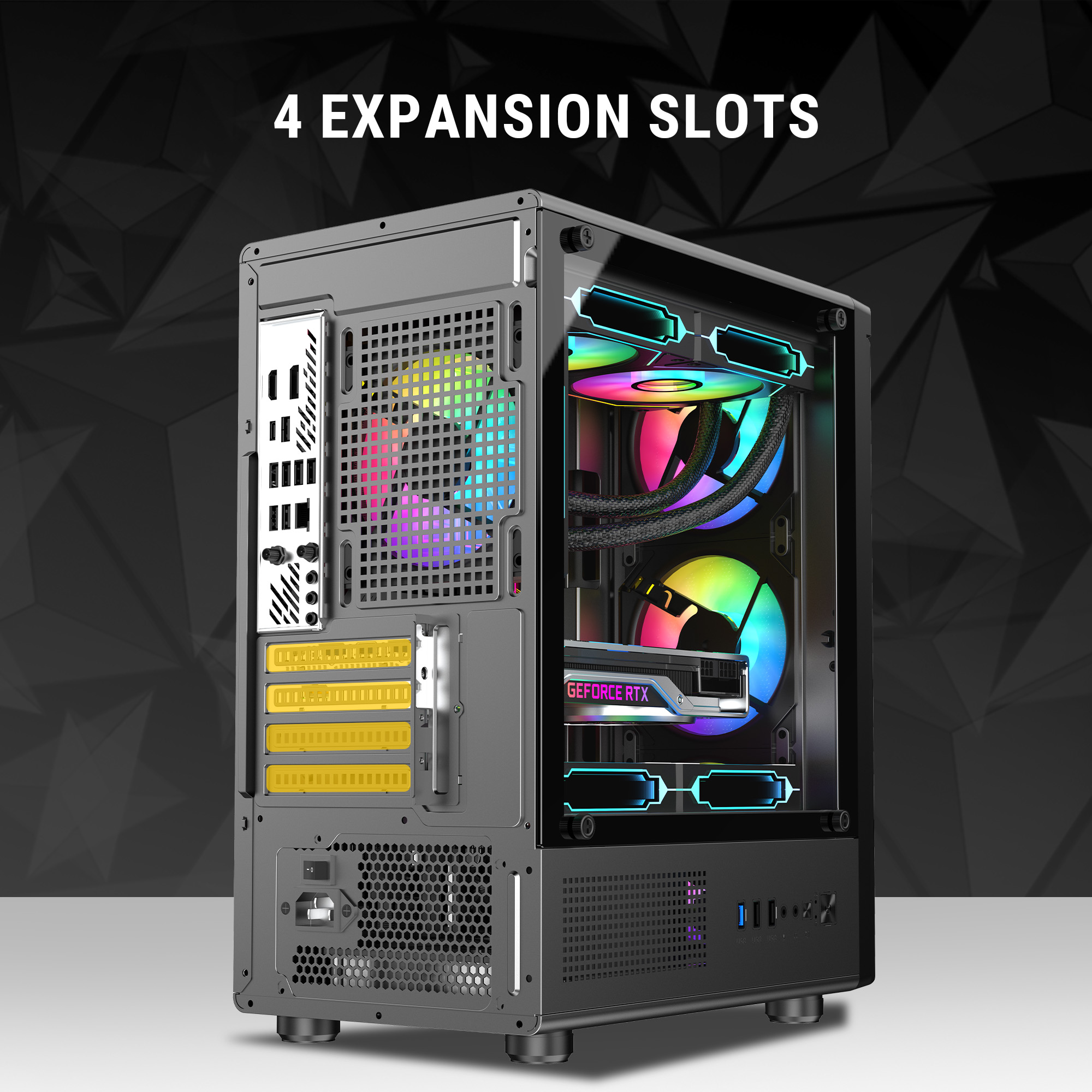

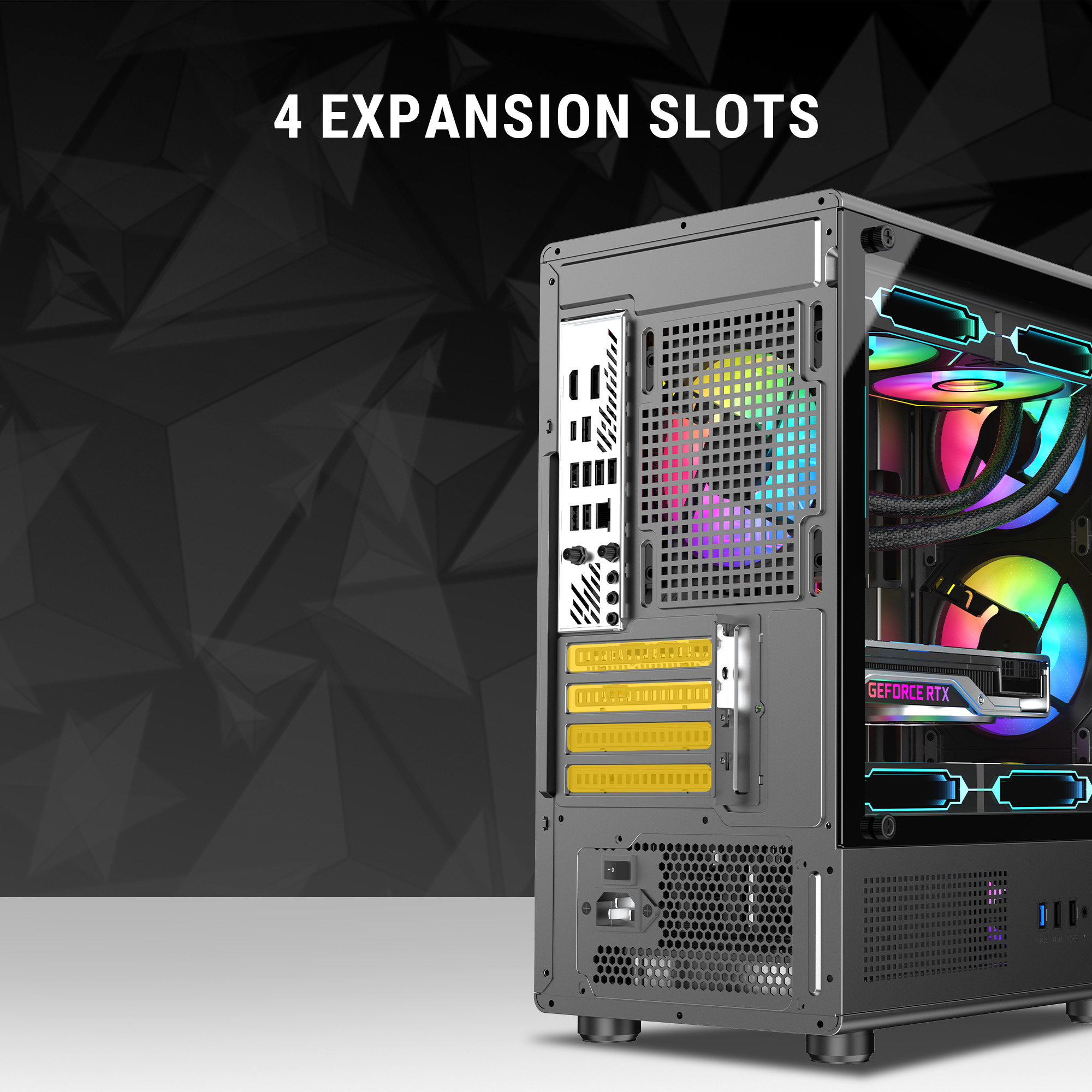

Expansion Slots4
Net Weight / Gross Weight3.00 kg / 4.00 kg
Warranty Summary
  • 1 Year from the date of purchase
Covered in Warranty
  • Warranty is applicable on manufacturing defects (If any) for 1 Year from the date of purchase.
Not Covered in Warranty
  • Unauthorized tampering, modification or repair physical damage; water Damage or any other damage due to heat, humidity, moisture and mishandling doing operations
Service Type
  • Warranty claim along with the necessary contact information required: RMA Portal – www.antesportsrma.com
