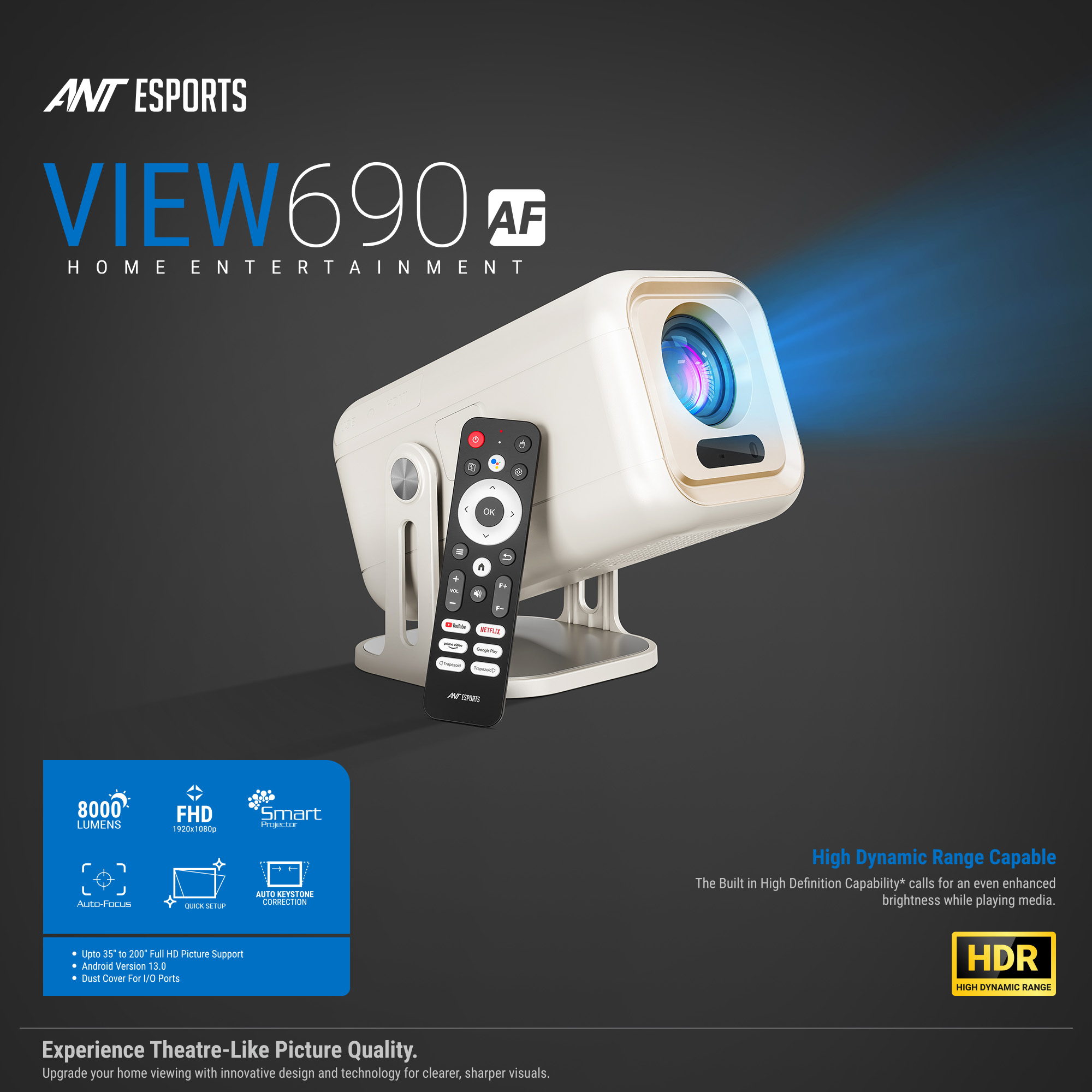

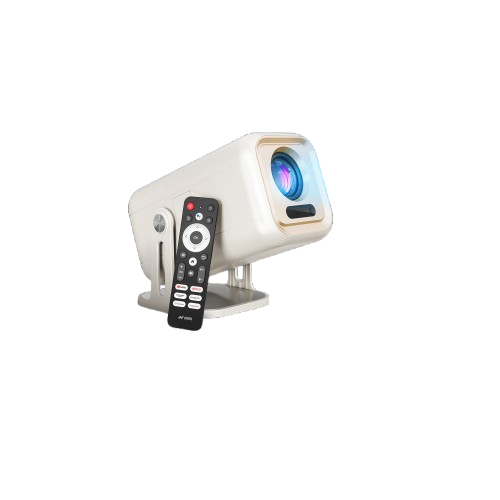

Model No.View 690 AF
Operating SystemAndroid 13.0
ProcessorQuad-Core Amlogic T950s Processor
RAM/ROM1GB/8GB
Projection TechnologyLCD Tech
Projector Light SourceLED
Light Source Lifespan50000H
Brightness8000 Lumens
Lamp TypeLED
Resolution1920x1080p
Picture Size (Max.)35” – 200” (88cm – 508cm)
Contrast Ratio1200:1
Projection Ratio1.3 : 1
Projection Distance1.4-5M
Aspect Ratio16:9
Focus ModeAuto Focus
Projection ModeFront / Rear / Hoisting
Language SupportMultilingual
Video FormatDAT/MPEG/MPG/TS/MP4/AVI/MOV/MKV etc
Audio FormatMP2/MP3/WAV/OGG/FLAC/AAC/M4A etc
Image FormatJPG/BMP/PNG etc

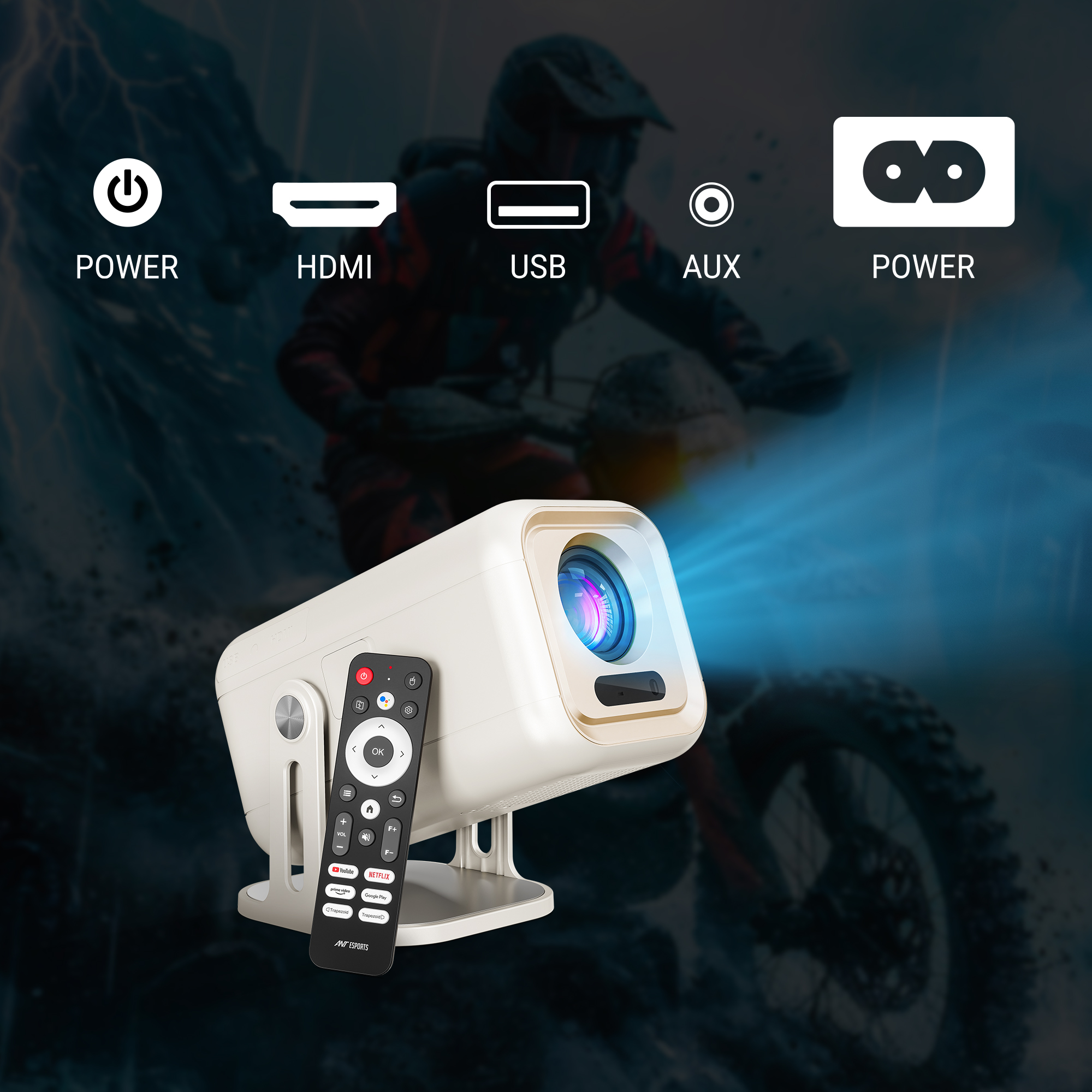

PortsUSB x1, HDMI x1, HD Audio x1

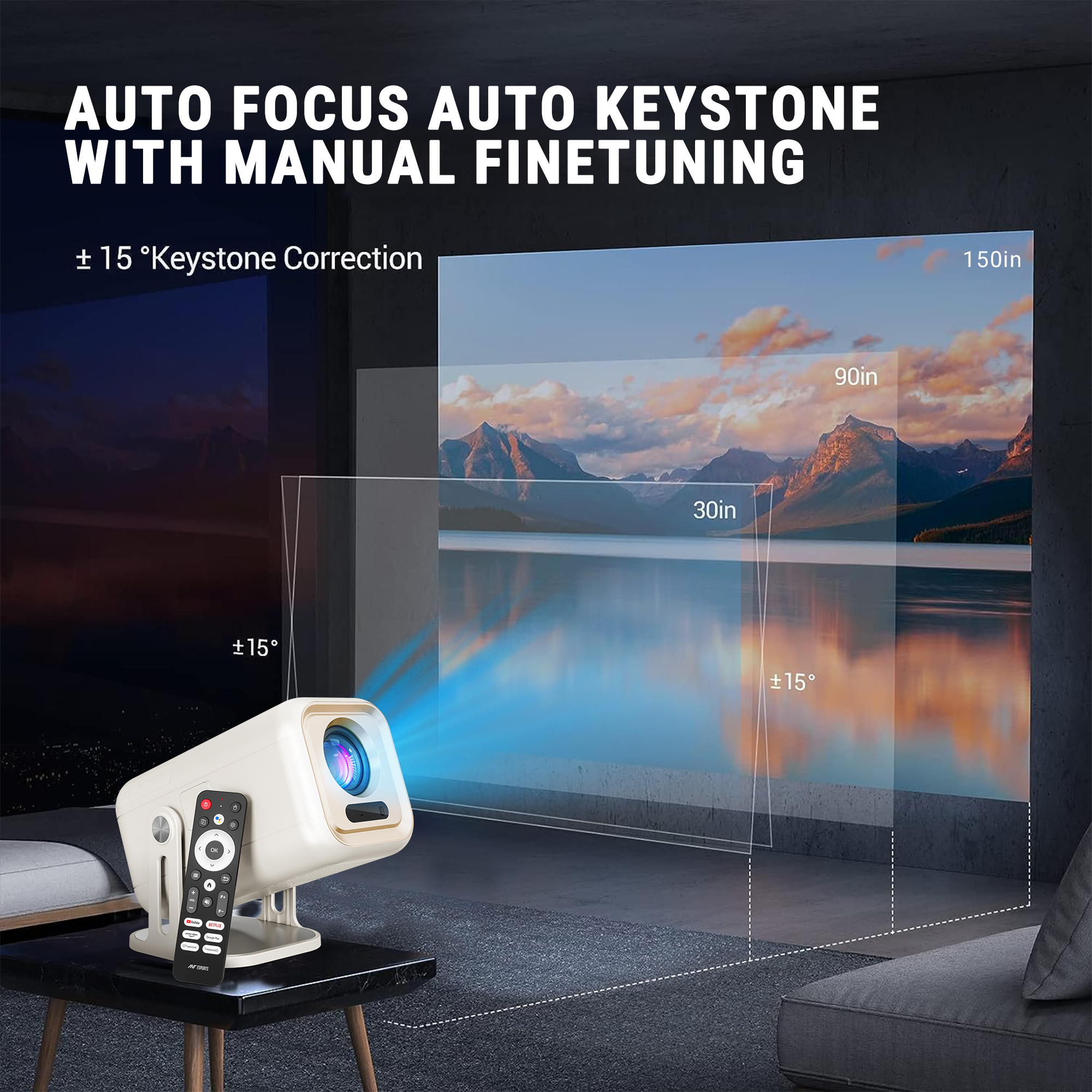

Keystone CorrectionAuto (Both Horizontal & Vertical)
Mode Of OperationInfrared/Wireless BT Remote Control

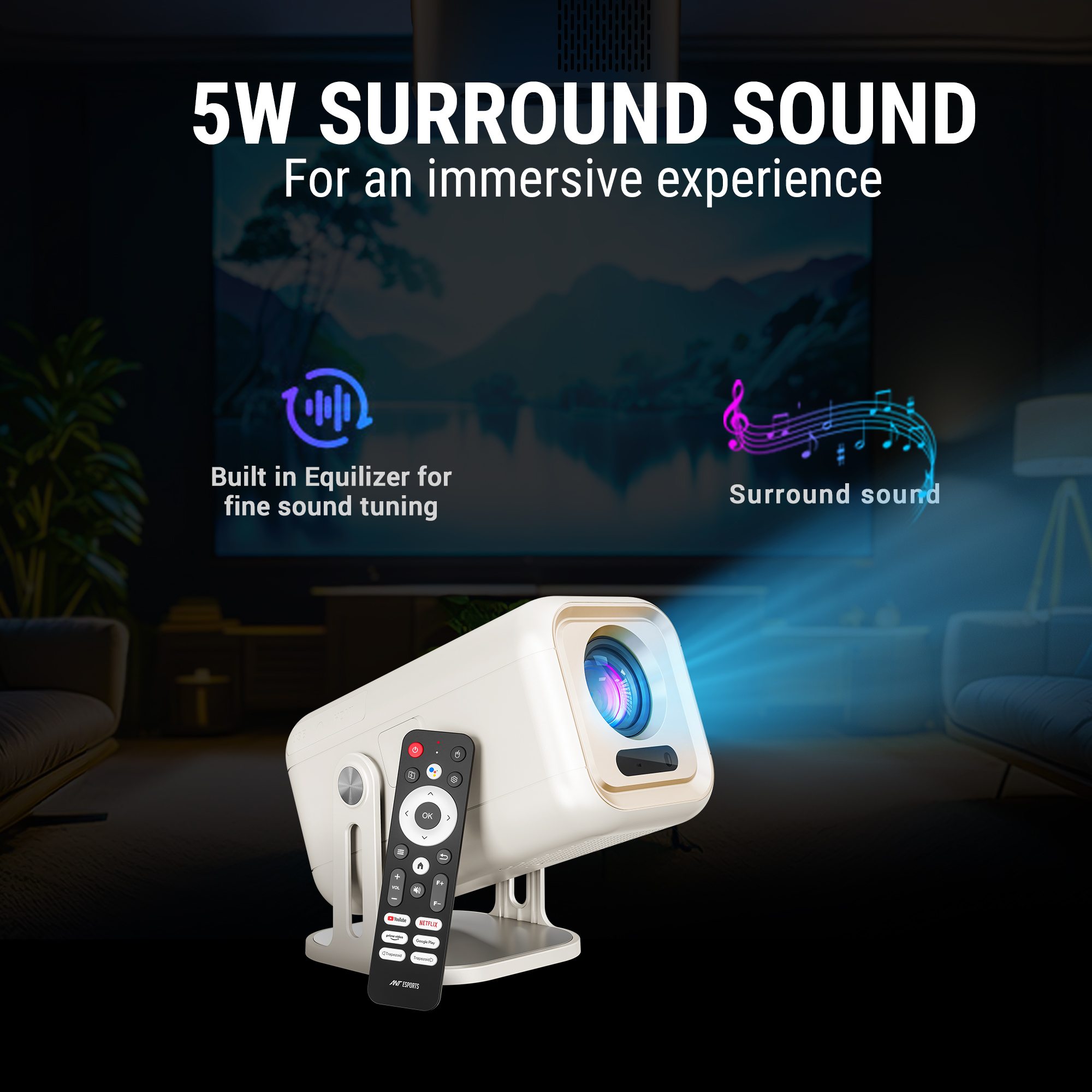

Built-In Speaker5W
Overall Power70W
Supply Voltage100~250V 50/60Hz
ColorPearl White
MaterialABS
WiFi802.11b/g/n (Dual Band)
Wireless BT5.0
Product Dimensions232x141x127mm
Box Dimensions256x147x220mm
Product Net Weight0.98 KG
Product Gross Weight1.90 KG
In The Box1x Projector, x1 Manual, x1 Remote, x1 Power Cable, x1 HDMI Cable, x1 120 Inch Screen
Warranty Summary
  • 1 Year from the date of purchase
Covered in Warranty
  • Warranty is applicable on manufacturing defects (If any) for 1 Year from the date of purchase.
Not Covered in Warranty
  • Unauthorized tampering, modification or repair physical damage; water Damage or any other damage due to heat, humidity, moisture and mishandling doing operations
Service Type
  • Warranty claim along with the necessary contact information required: RMA Portal – www.antesportsrma.com
