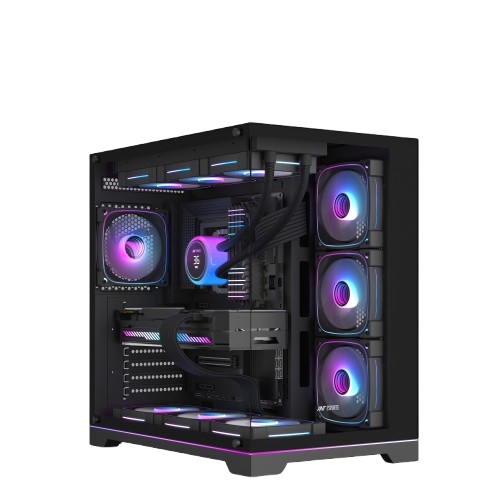

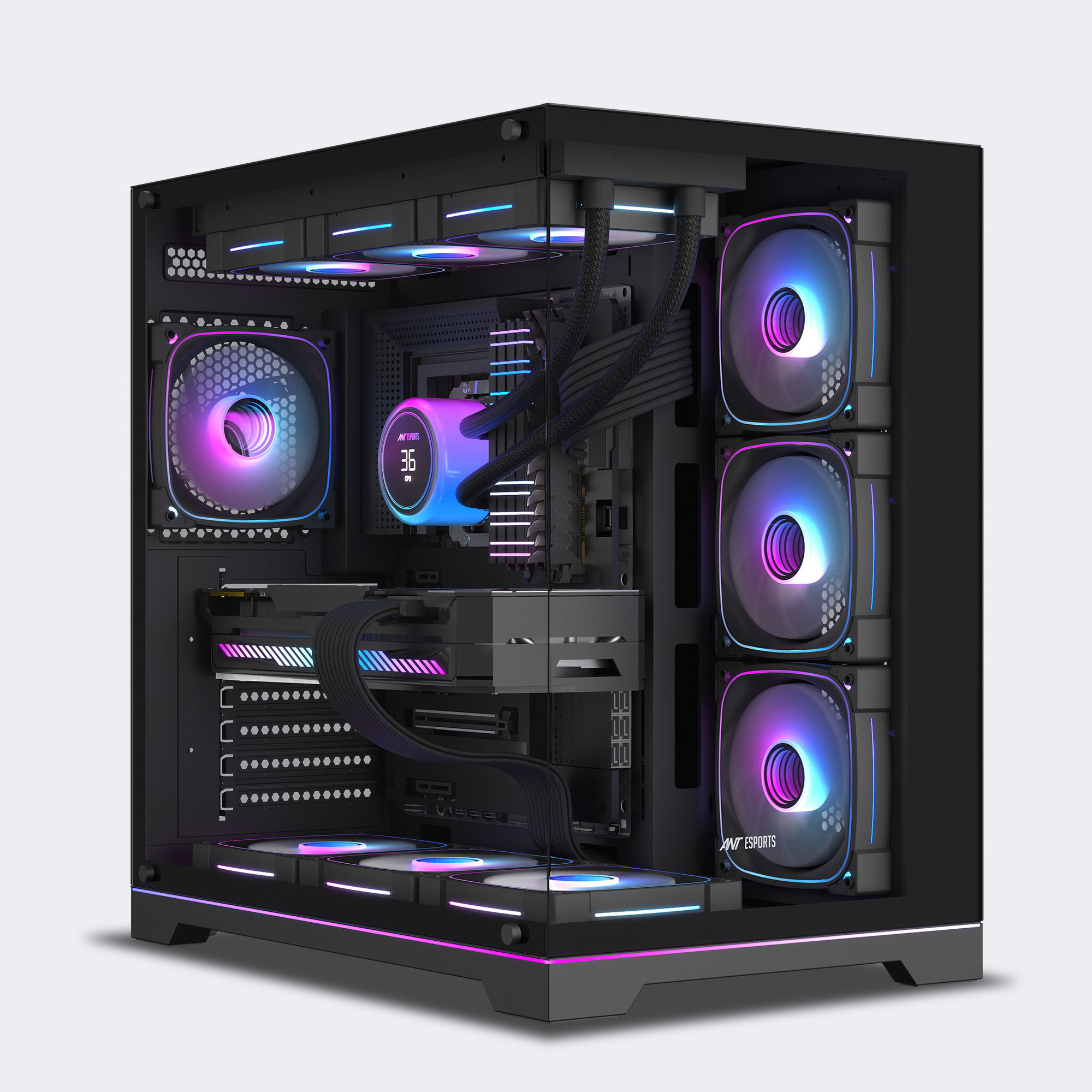

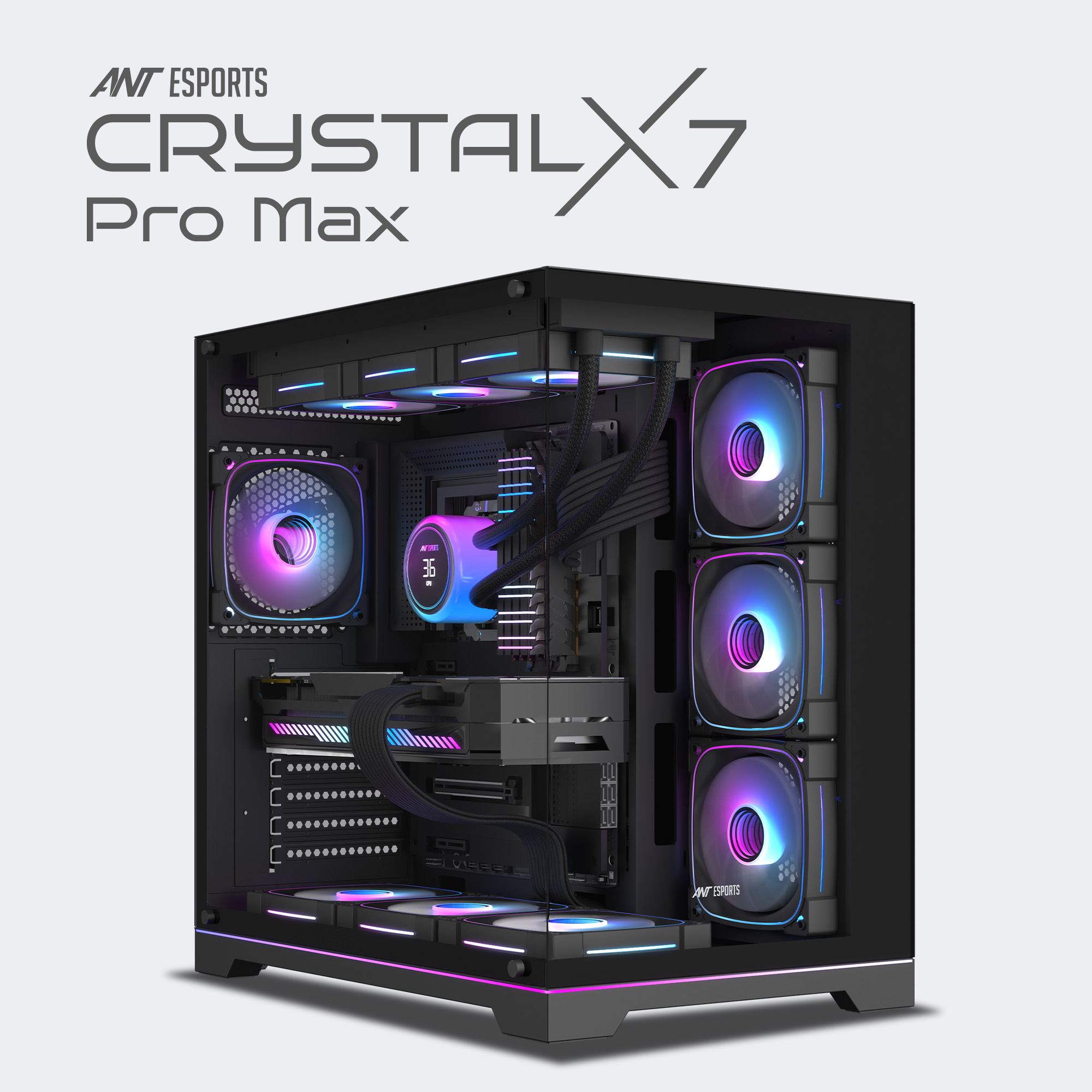

Experience the perfect blend of innovation, cooling performance, and visual brilliance with the Ant Esports Crystal X7 Pro Max. Designed for gamers and PC enthusiasts, this mid-tower cabinet delivers exceptional airflow, premium build quality, and a panoramic showcase of your high-end components through its dual tempered glass panels.

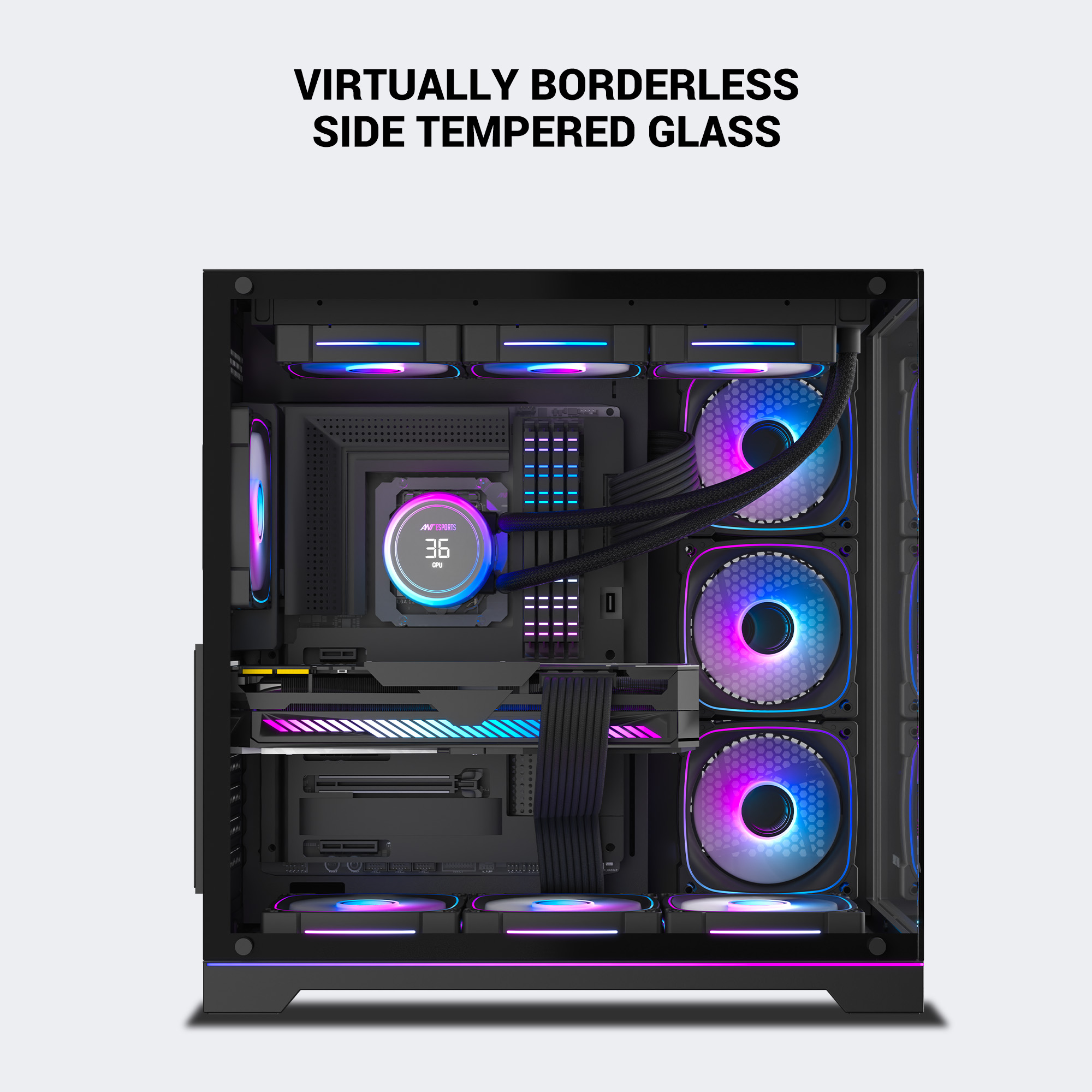

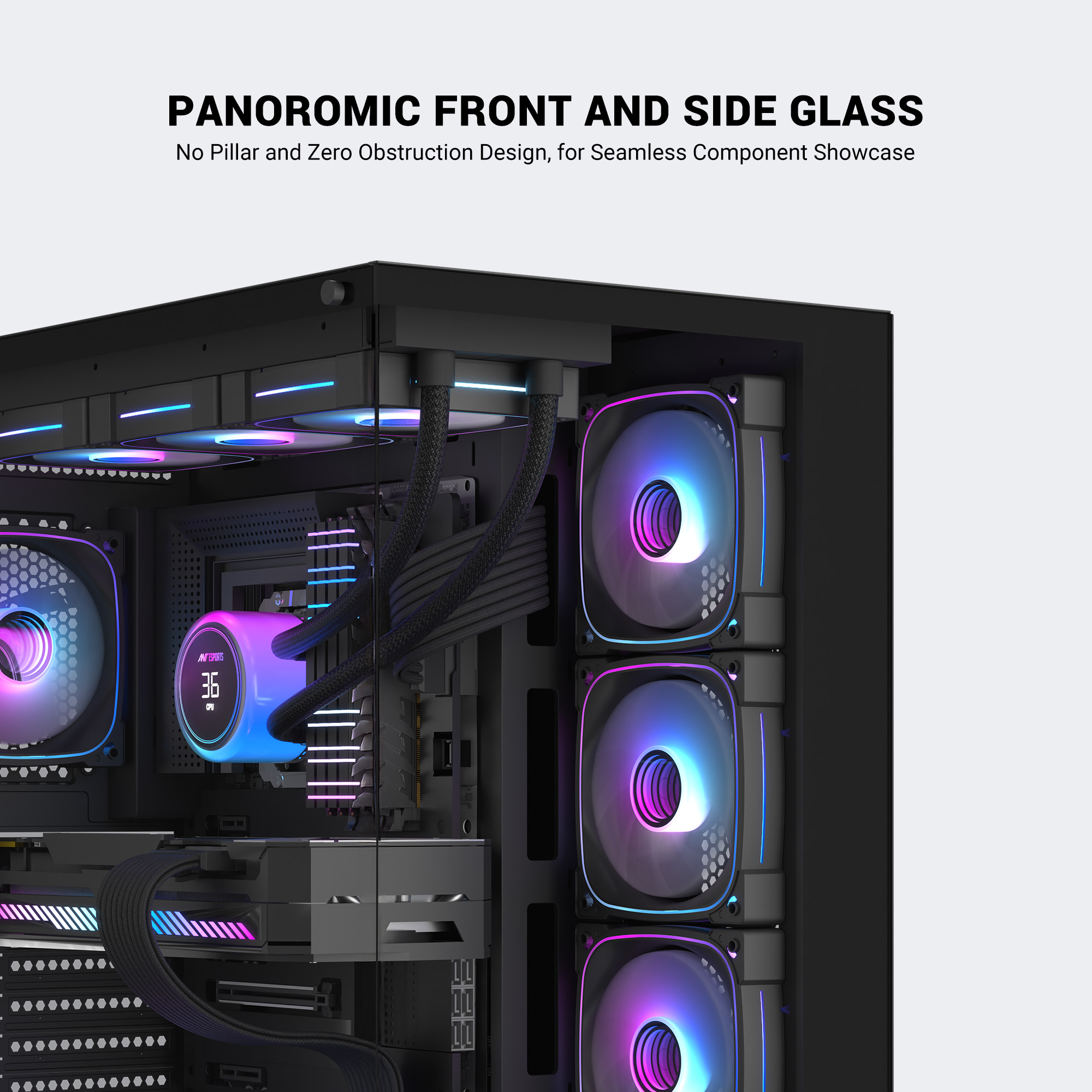

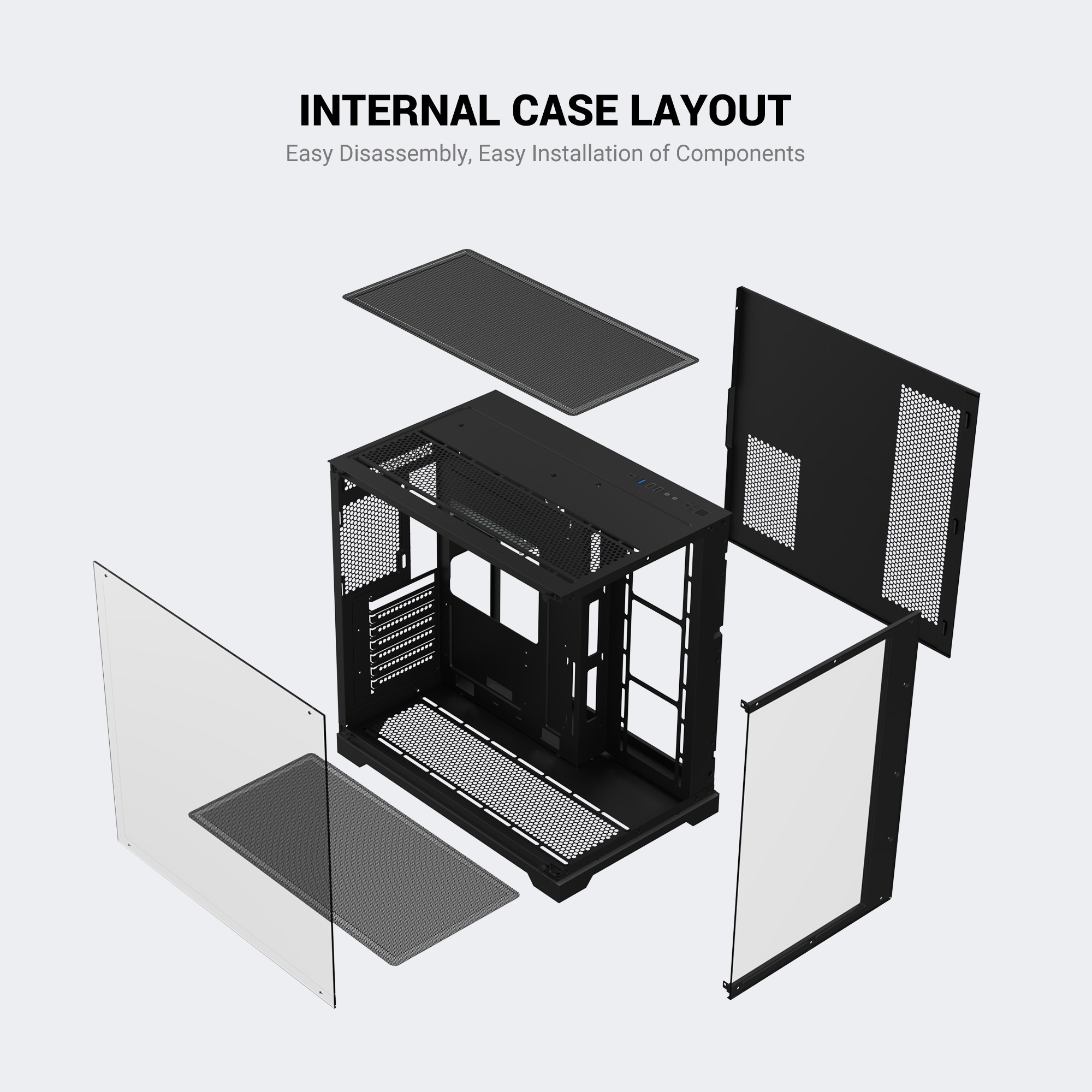

Built with steel and tempered glass, the Crystal X7 Pro Max offers unmatched durability while letting you flaunt your components with style. The dual-chamber layout ensures neat cable management and efficient airflow throughout the system.

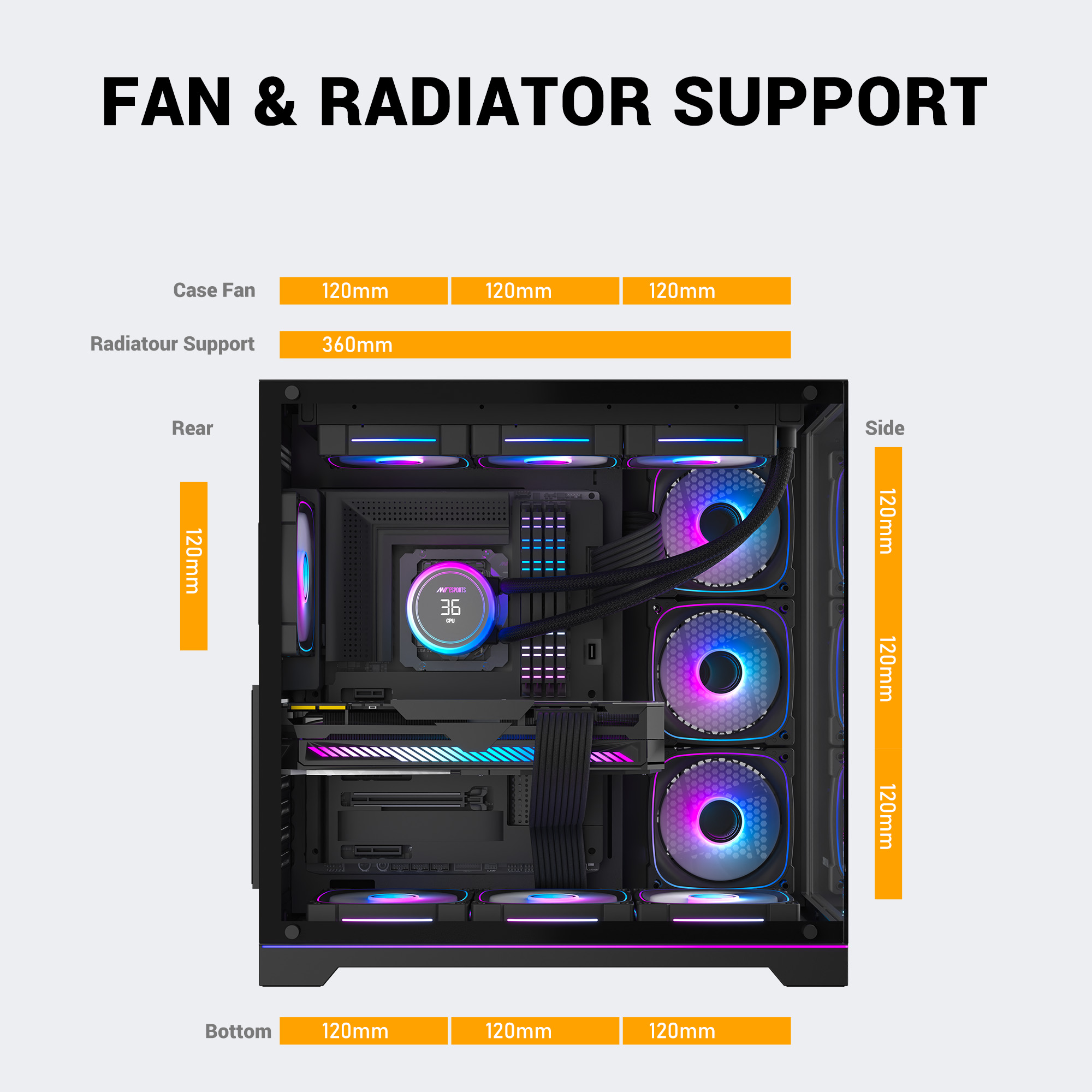

With support for up to 10 fans and multiple liquid cooling configurations, the Crystal X7 Pro Max keeps your system cool under the most demanding loads.

  • Top: 3 × 120mm fans / up to 360mm radiator

  • Side: 3 × 120mm fans / up to 360mm radiator

  • Bottom: 3 × 120mm fans

  • Rear: 1 × 120mm fan (pre-installed)

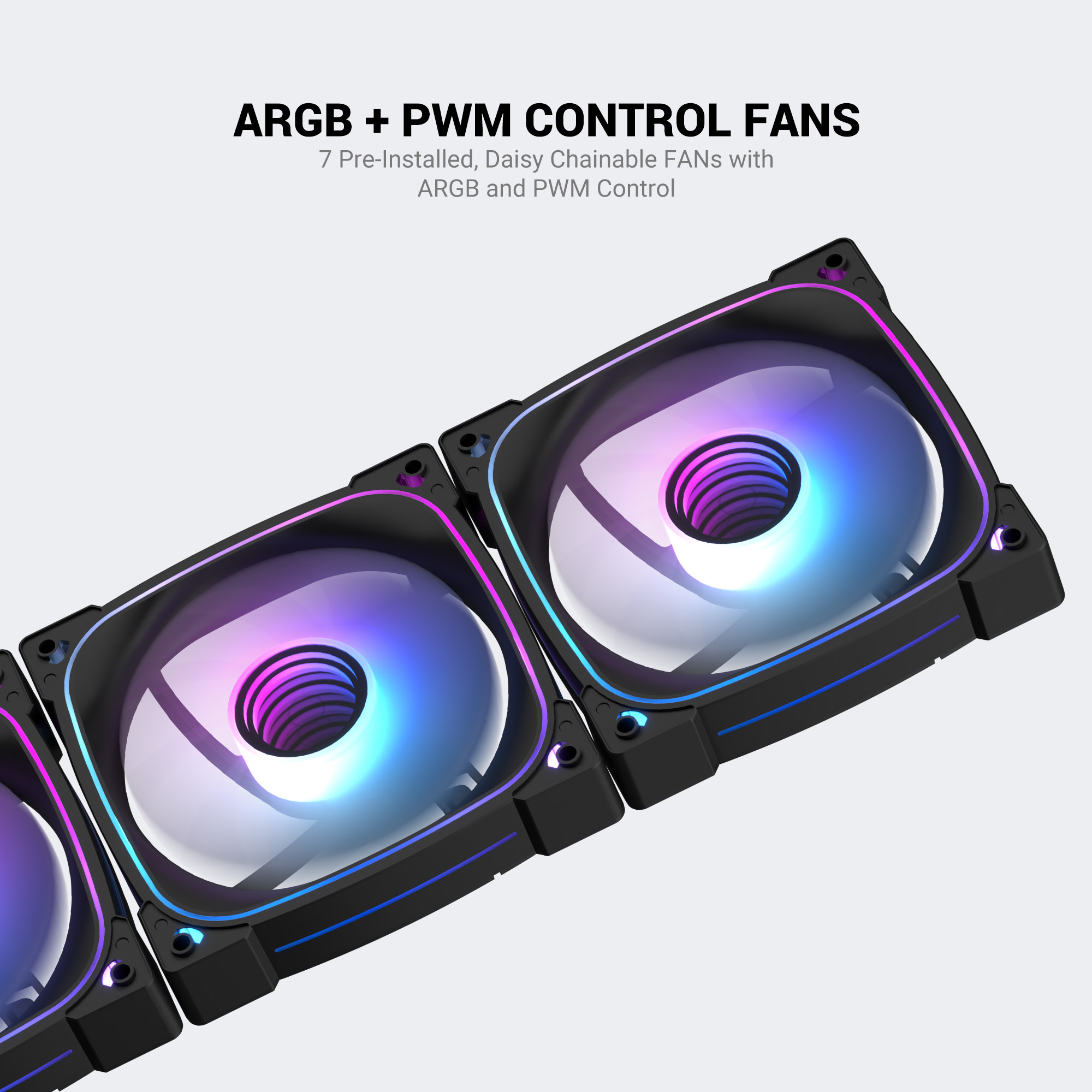

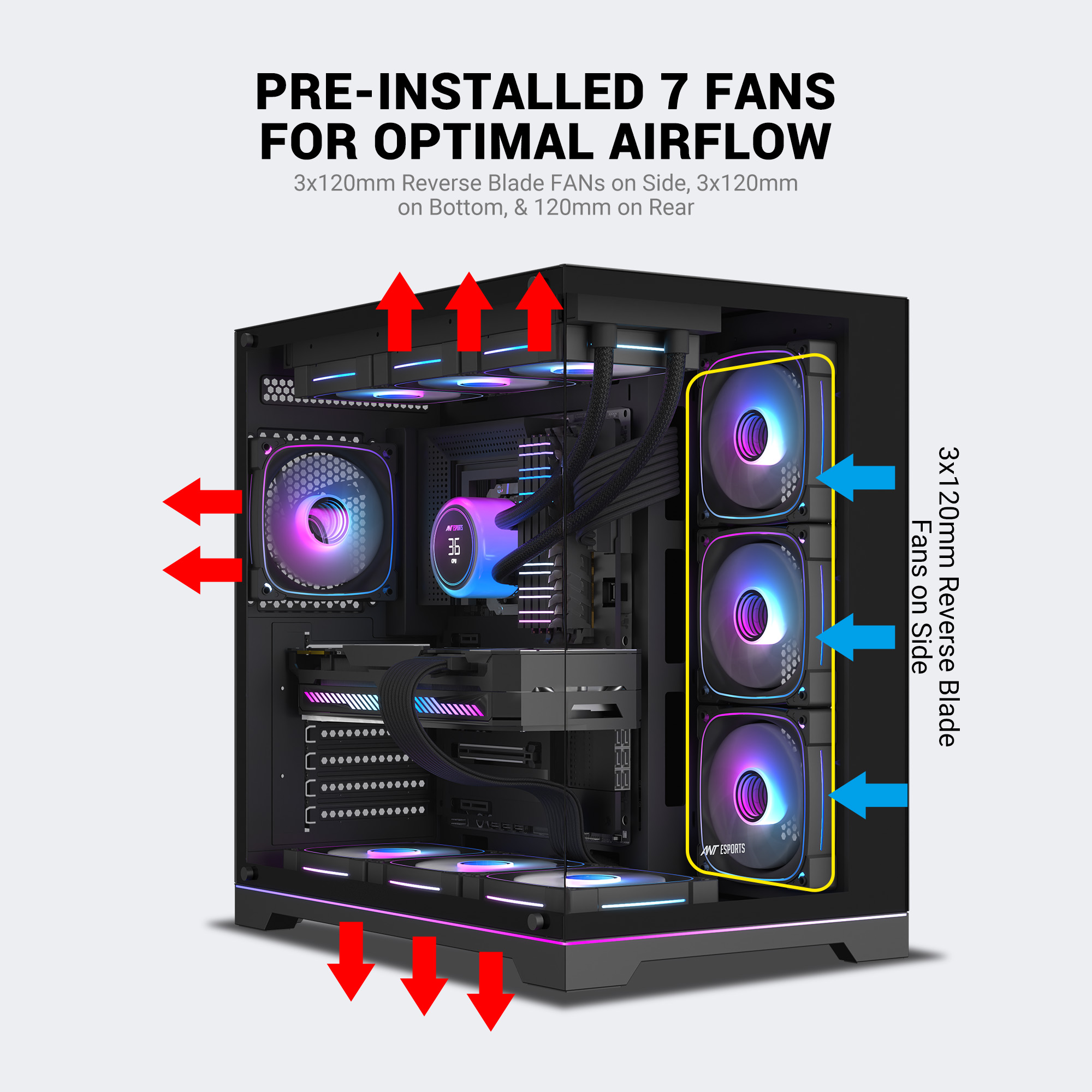

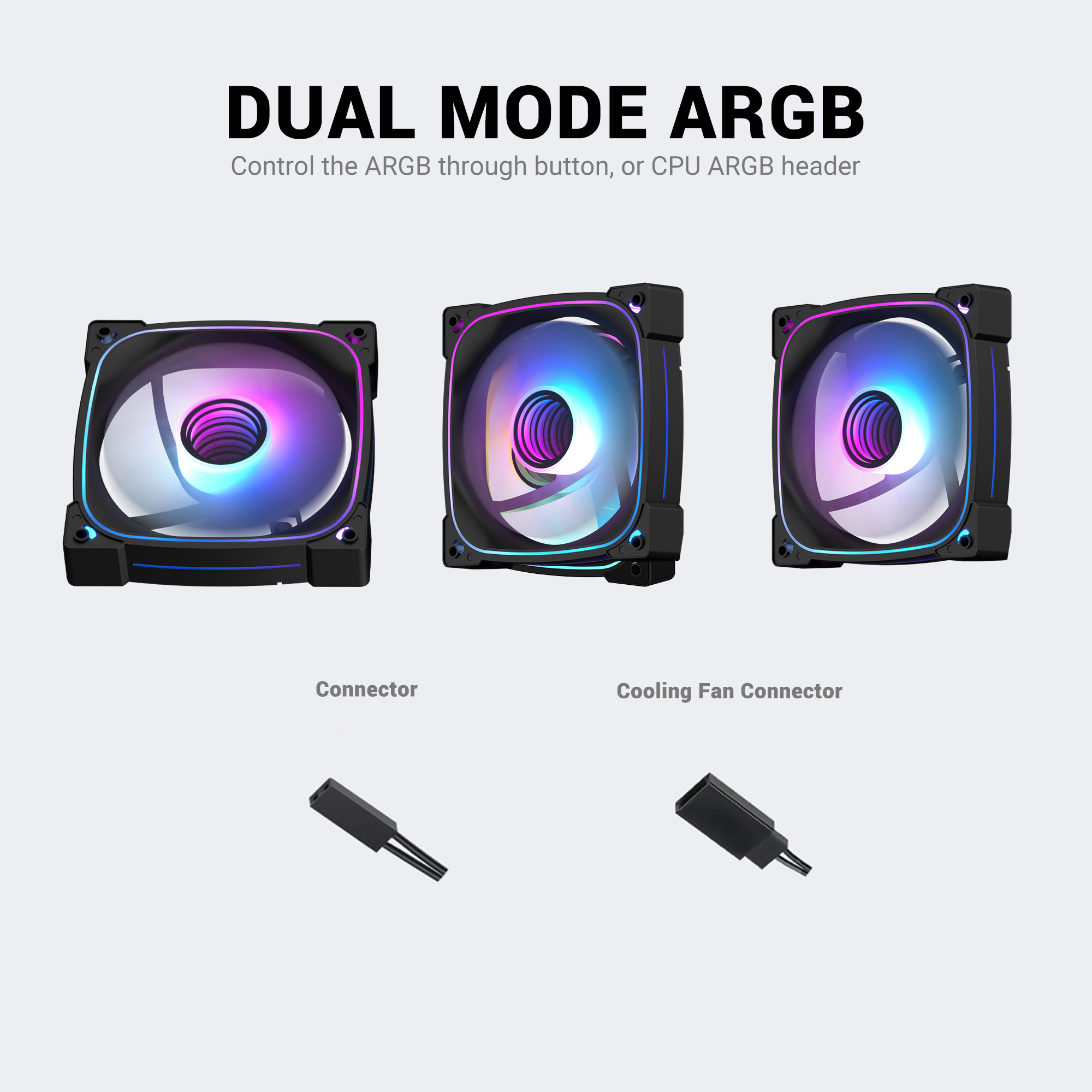

Pre-installed with 3 Reverse Blade Side Fans, 3 Bottom Fans, and 1 Rear Fan, the X7 Pro Max ensures powerful airflow right out of the box.

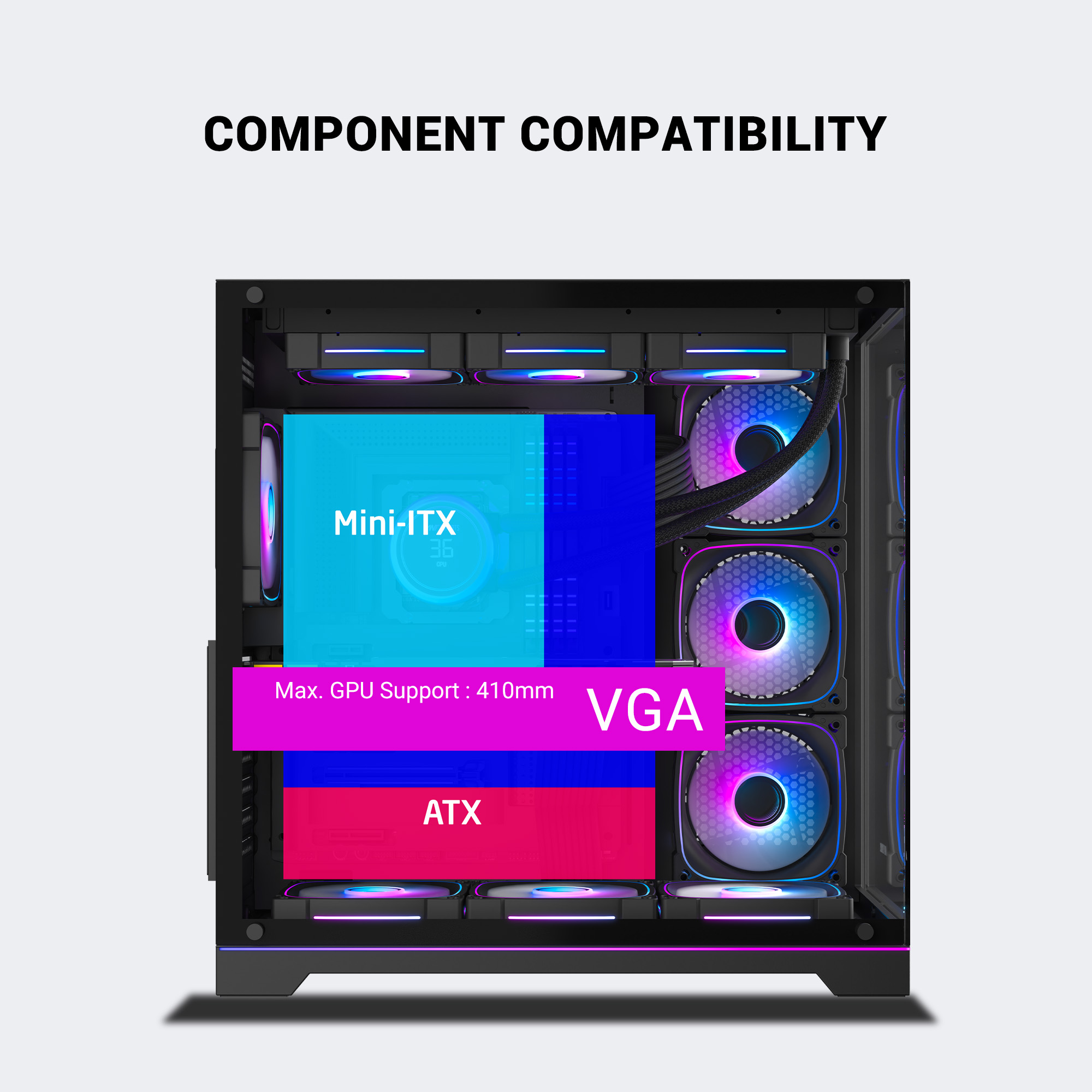

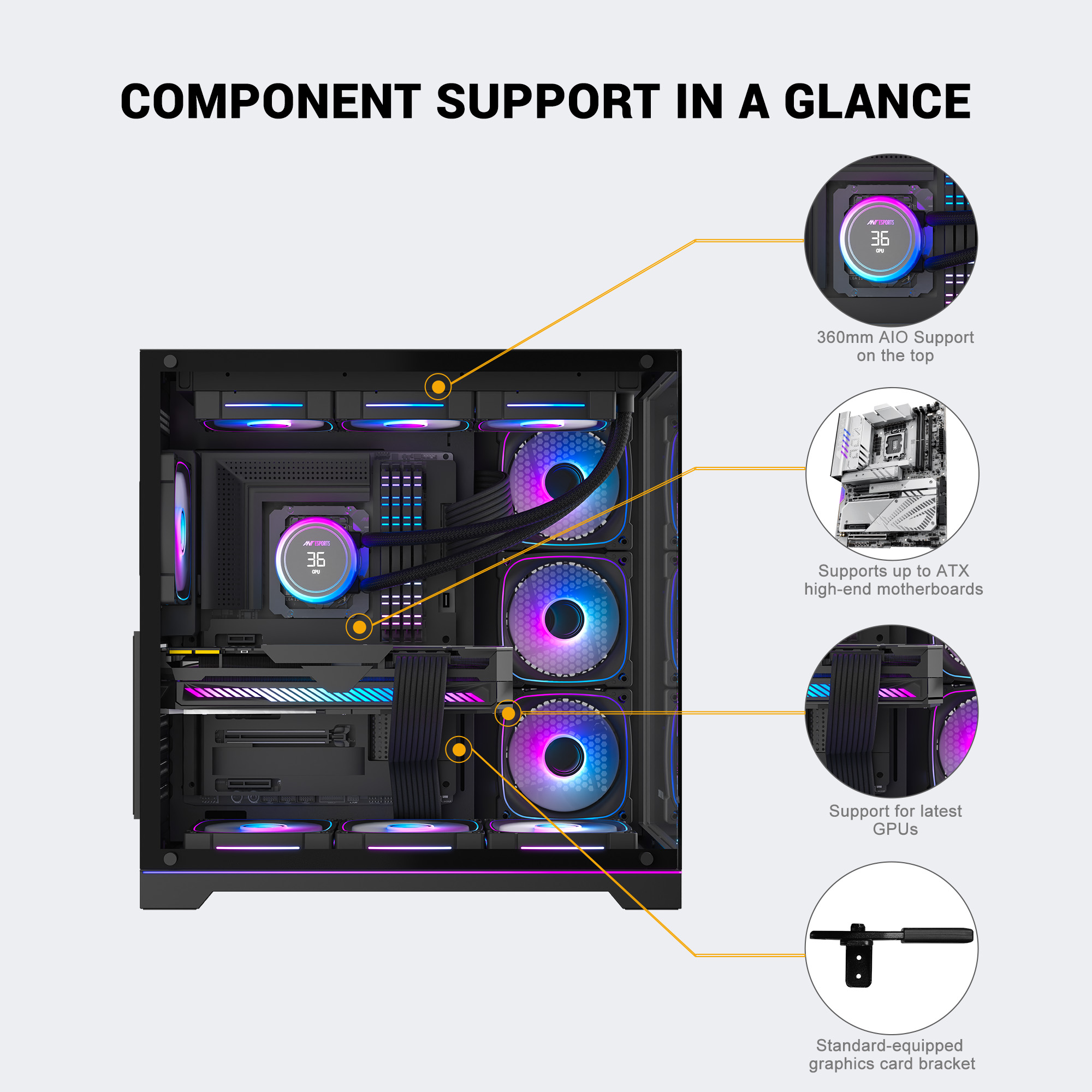

Whether you’re building a high-performance gaming rig or a workstation powerhouse, the Crystal X7 Pro Max provides extensive compatibility:

  • Motherboard: ATX, Micro-ATX, Mini-ITX

  • VGA Card Length: Up to 410mm

  • CPU Cooler Height: Up to 165mm

  • Storage Support: 2 × HDD + 1 × SSD

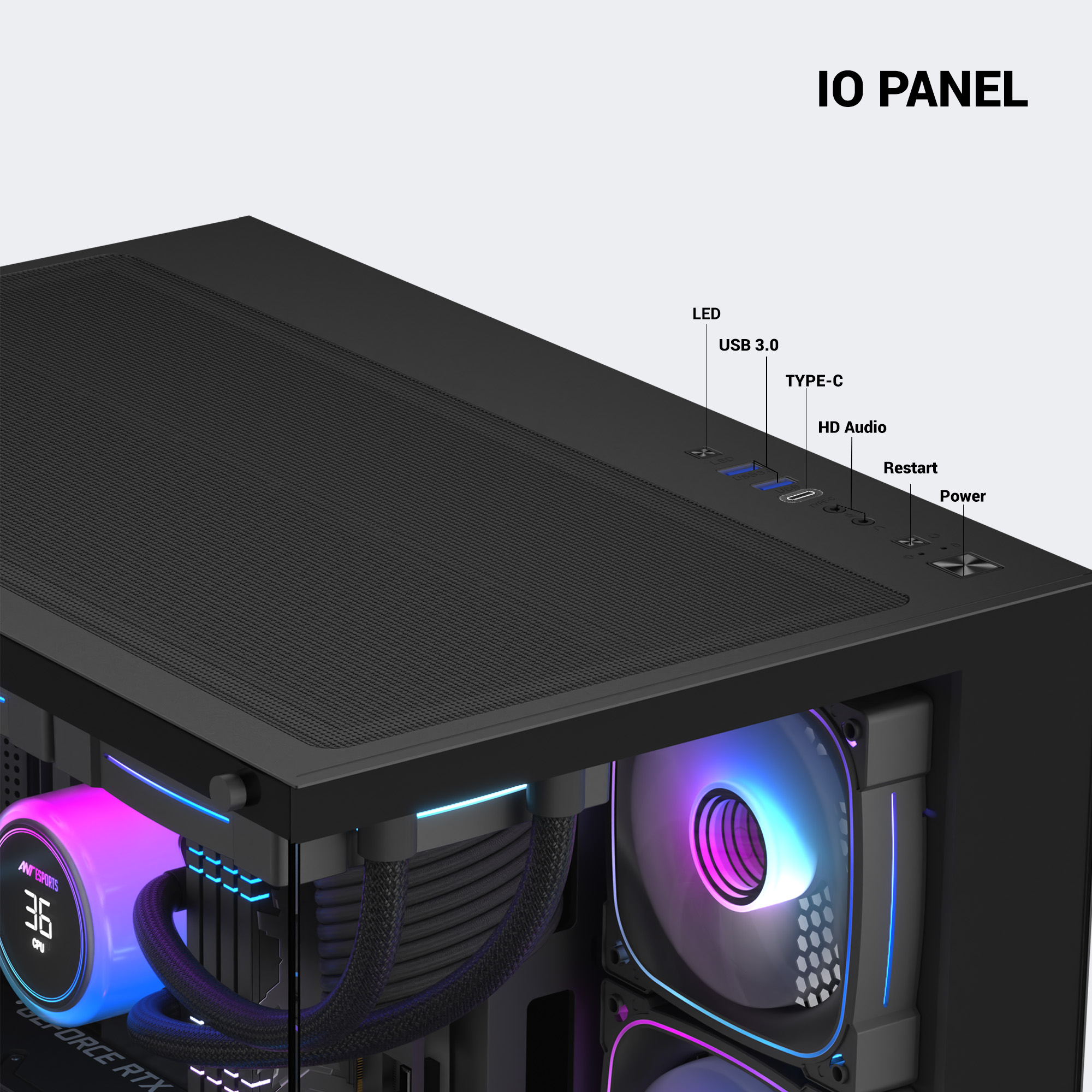

Equipped with a versatile I/O panel, the case ensures easy access and modern connectivity options:

  • 1 × Type-C Port

  • 2 × USB 3.0 Ports

  • Audio TRRS Jack

  • Power Button with LED Indicator

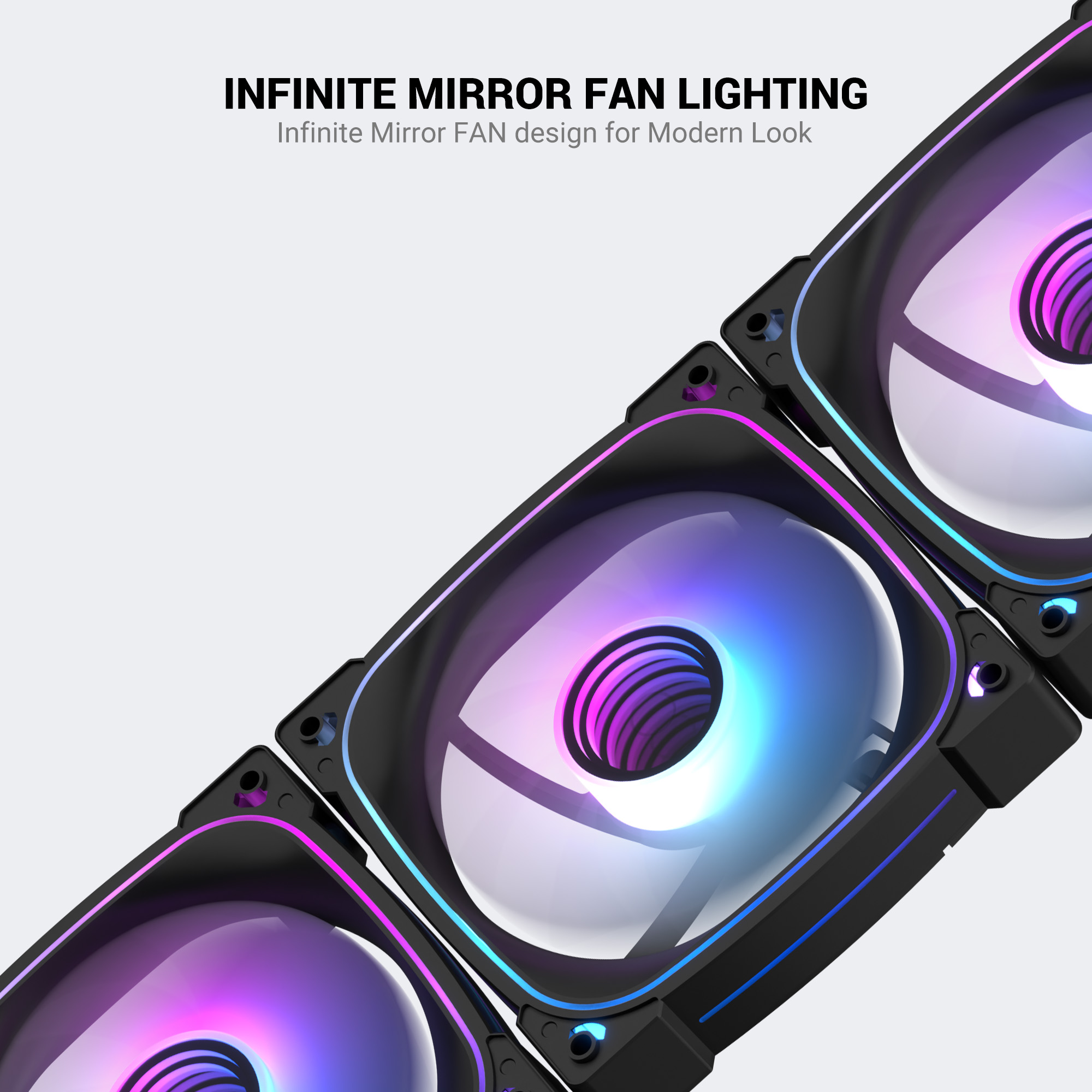

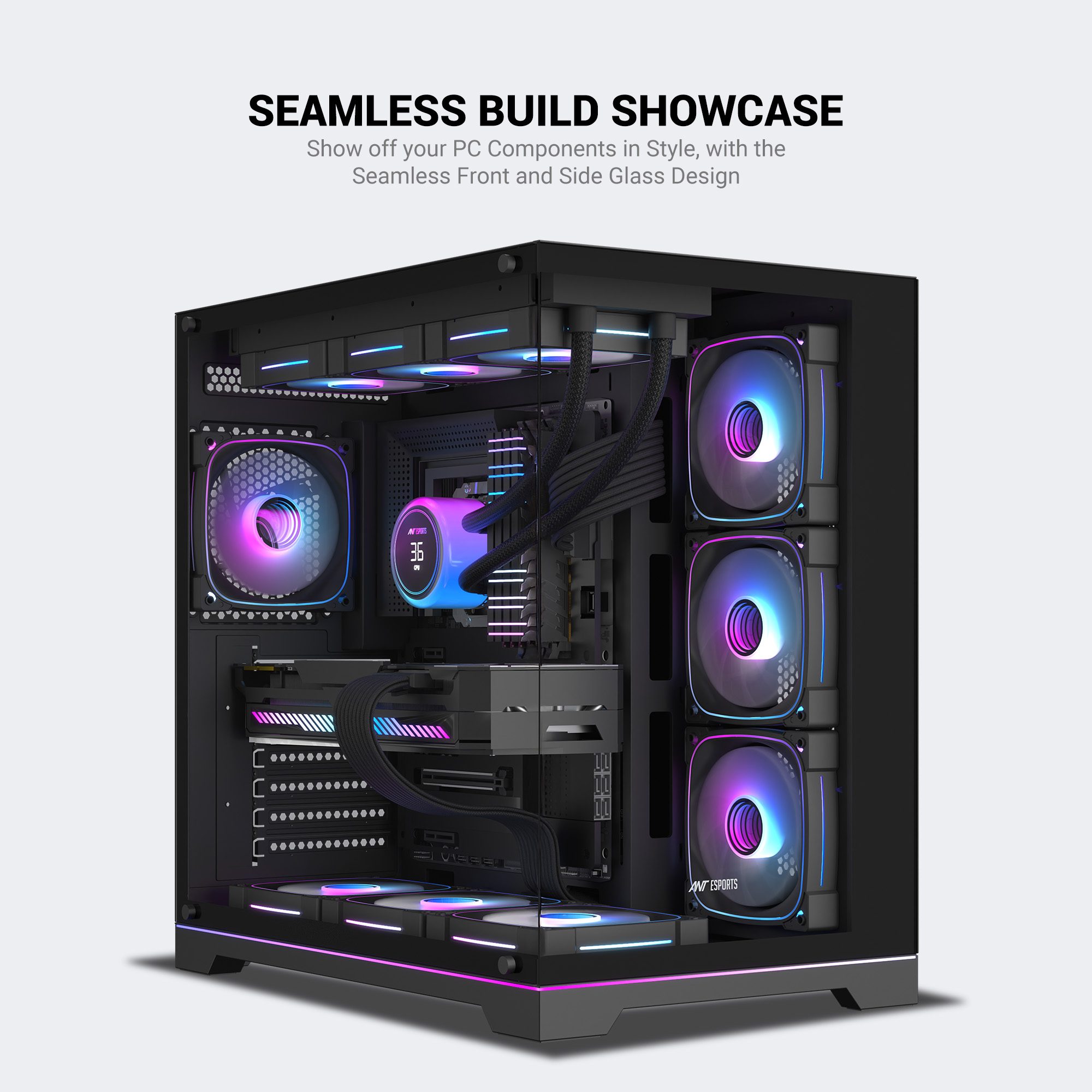

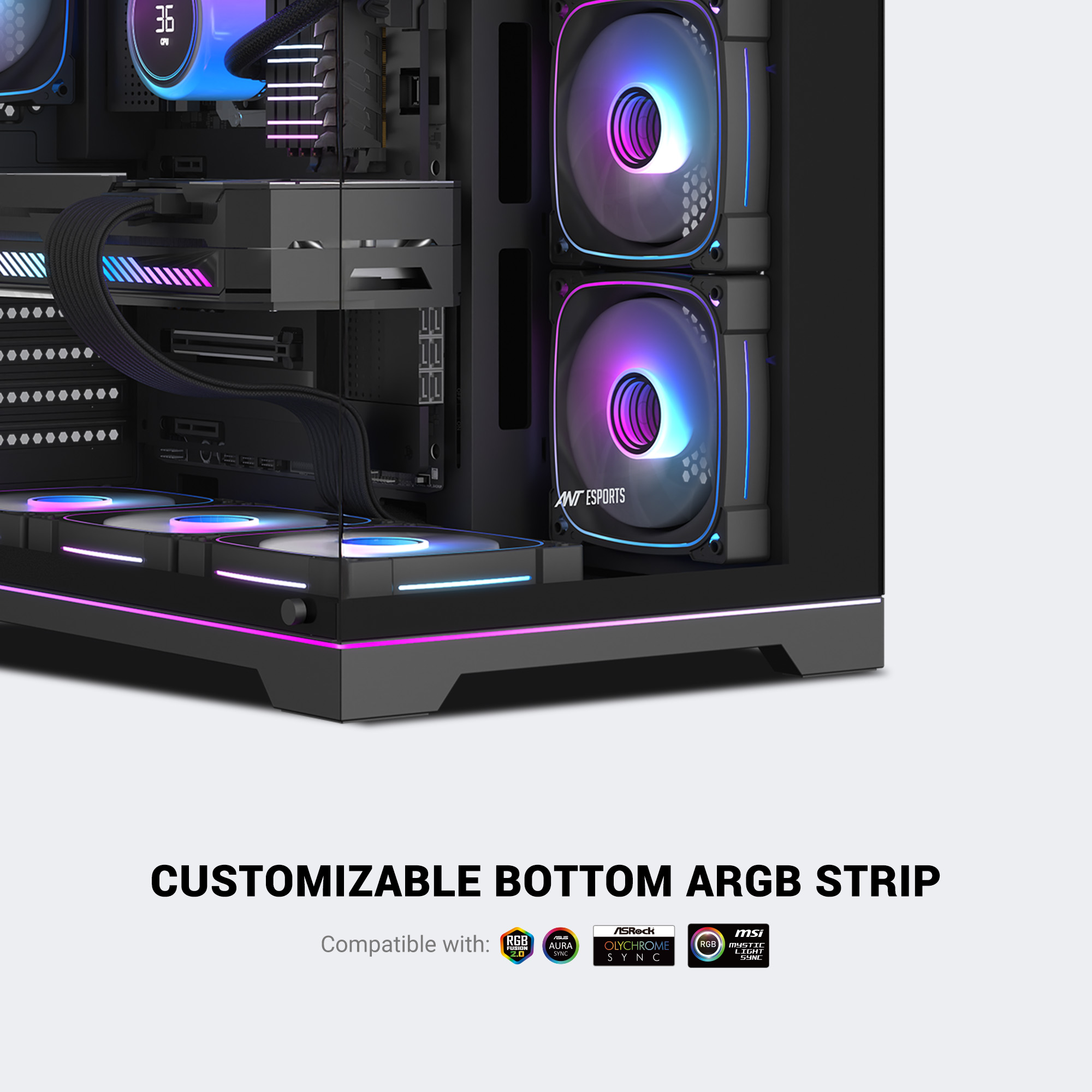

Show off your build with stunning RGB lighting that complements your setup. The clean lines, ambient glow, and futuristic design make the Crystal X7 Pro Max the centerpiece of any gaming station.

Category Specification Details

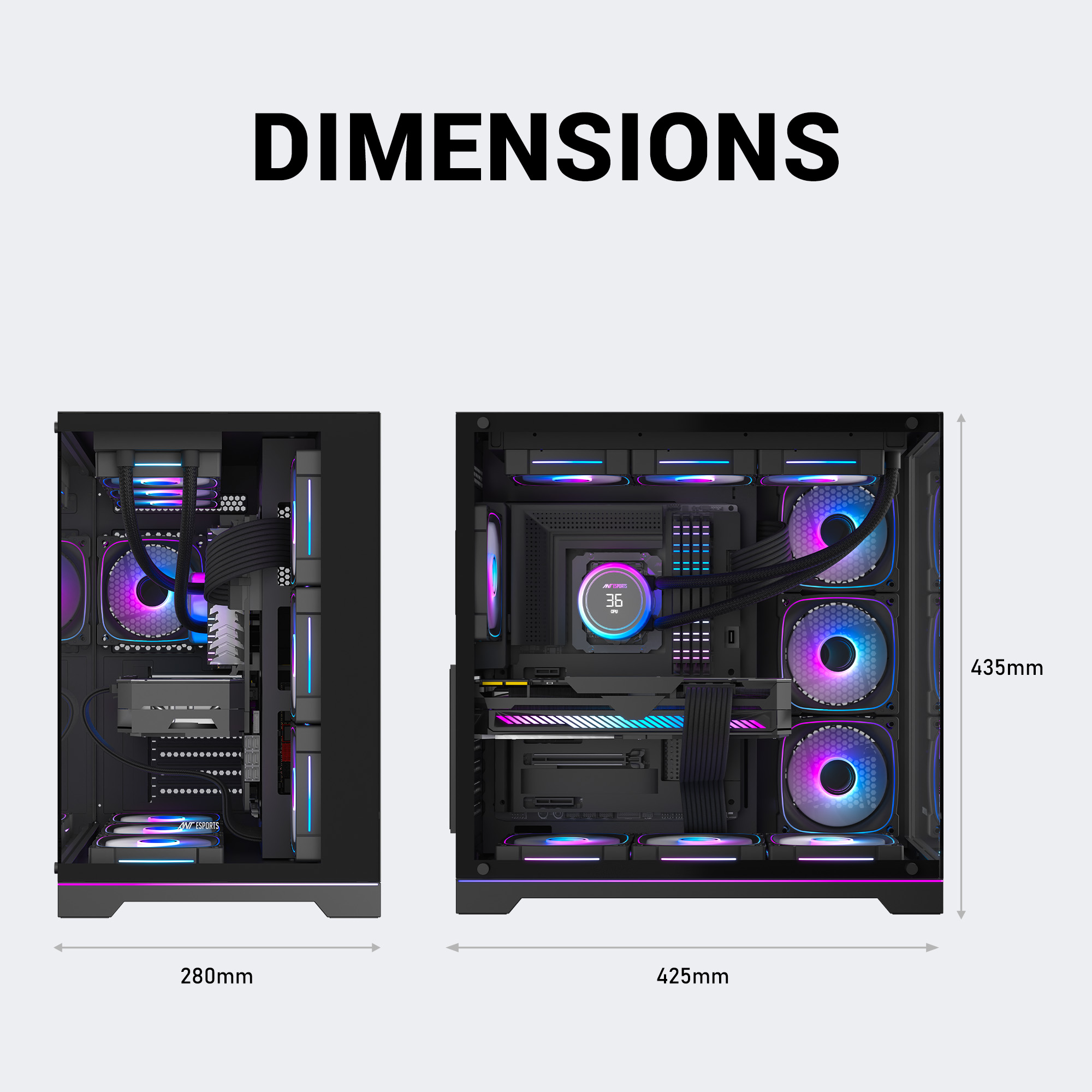

Dimensions (L x W x H) Product Size 425 x 280 x 435 mm
Dimensions (L x W x H) Packing Size 480 x 350 x 505 mm
Motherboard Type ATX, Micro-ATX, Mini-ITX
Materials Steel + Tempered Glass
Drive Bays 3.5 Inch / 2.5 Inch 2 HDD + 1 SSD
Drive Bays 5.25 Inch None
Fan Support Front None
Fan Support Top 120 mm x 3
Fan Support Bottom 120 mm x 3
Fan Support Rear 120 mm x 1
Fan Support Side 120 mm x 3
Liquid Cooling Support (Maximum) Front None
Liquid Cooling Support (Maximum) Top 240 mm / 360 mm
Liquid Cooling Support (Maximum) Bottom None
Liquid Cooling Support (Maximum) Rear / Side 120 mm / 240 mm / 360 mm
Pre-Installed Fans x 3 Side Fans (Reverse Blade), x 1 Rear Fan x 3 Bottom Fans
Compatibility (Maximum) VGA Card Length 410 mm
Compatibility (Maximum) CPU Cooler Height 165 mm (Max)
I/O Panel 1× Type-C, 2× USB 3.0, Audio TRRS, Power, LED Button

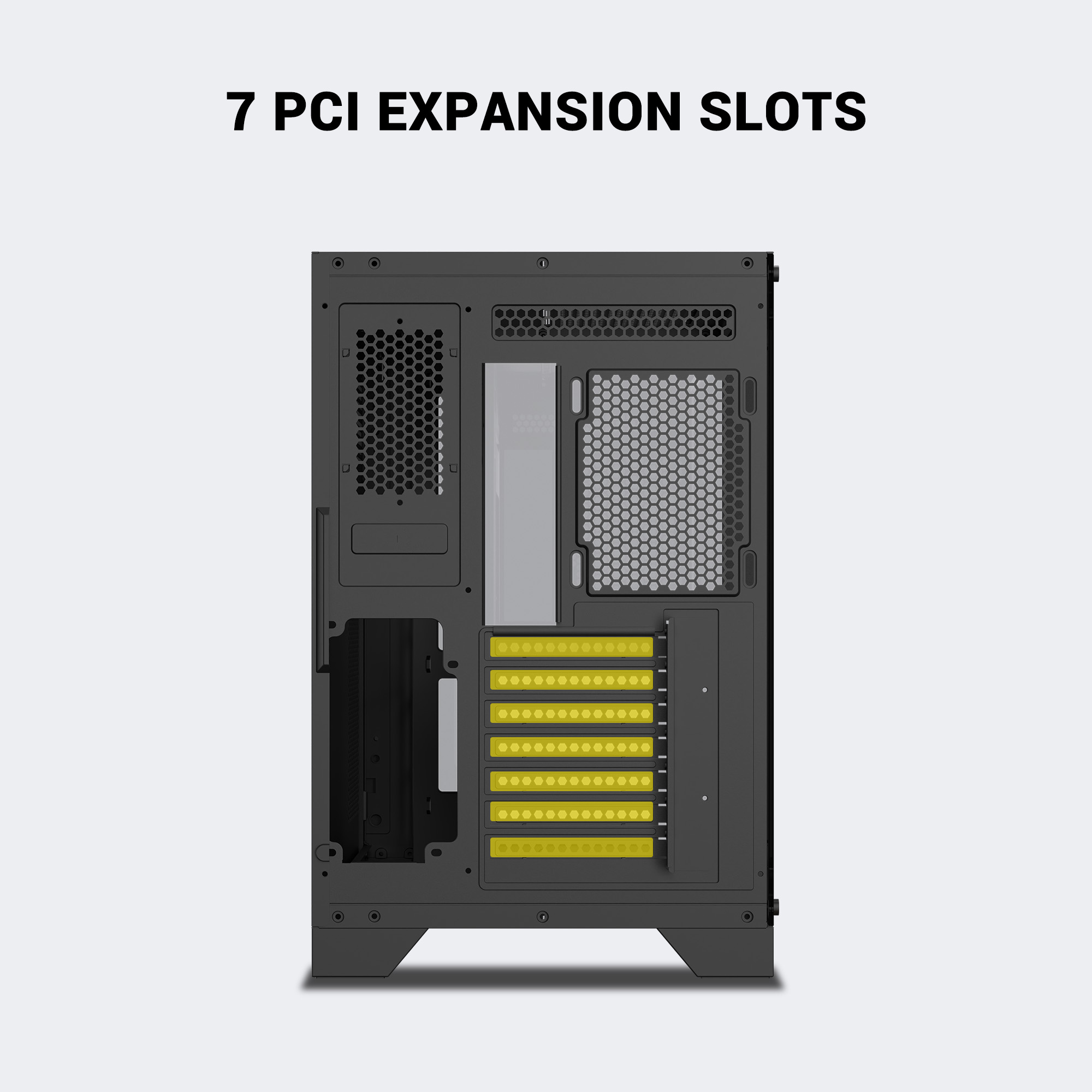

Expansion Slots 7
Warranty Summary
  • 1 Year from the date of purchase
Covered in Warranty
  • Warranty is applicable on manufacturing defects (If any) for 1 Year from the date of purchase.
Not Covered in Warranty
  • Unauthorized tampering, modification or repair physical damage; water Damage or any other damage due to heat, humidity, moisture and mishandling doing operations
Service Type
  • Warranty claim along with the necessary contact information required: RMA Portal – www.acrorma.com
