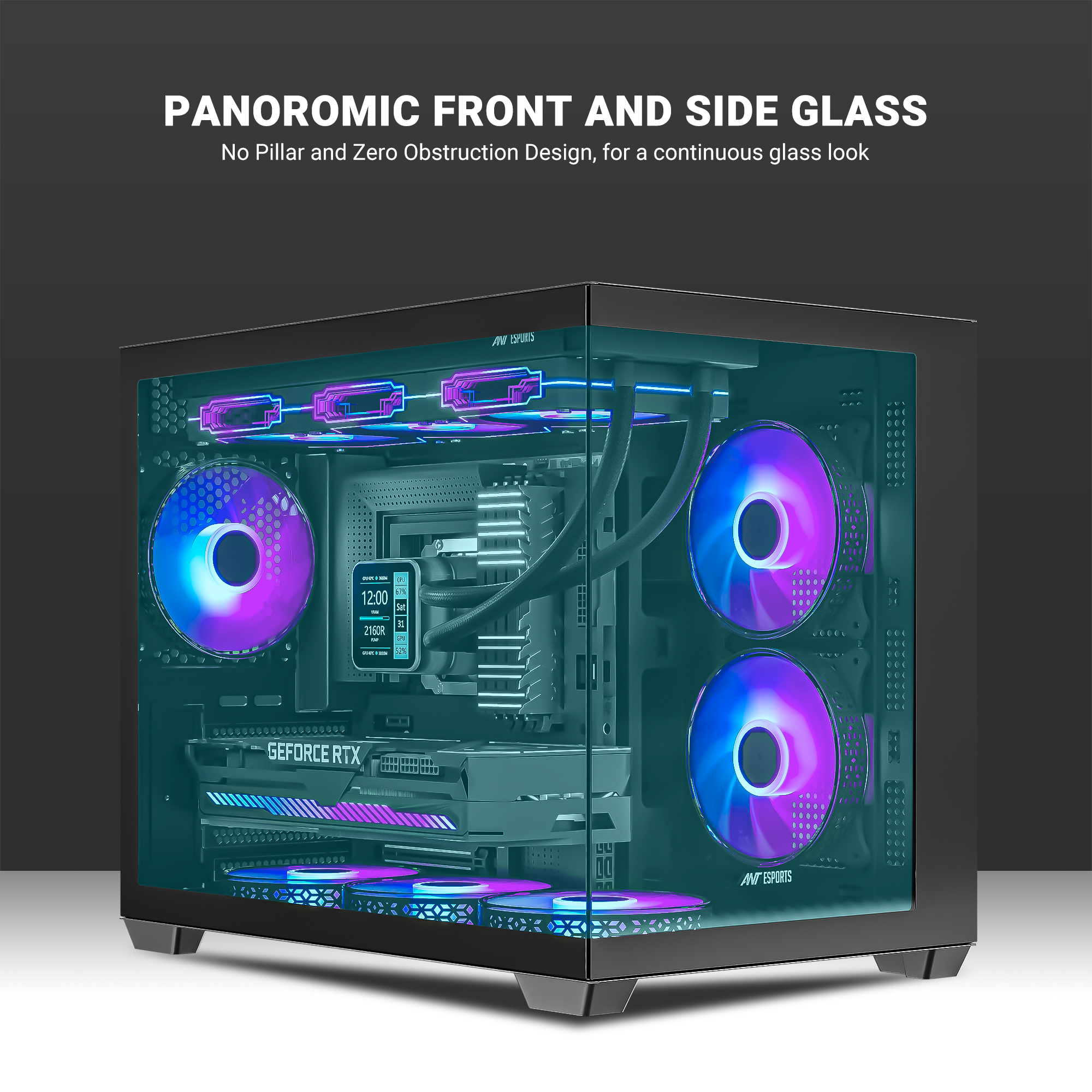

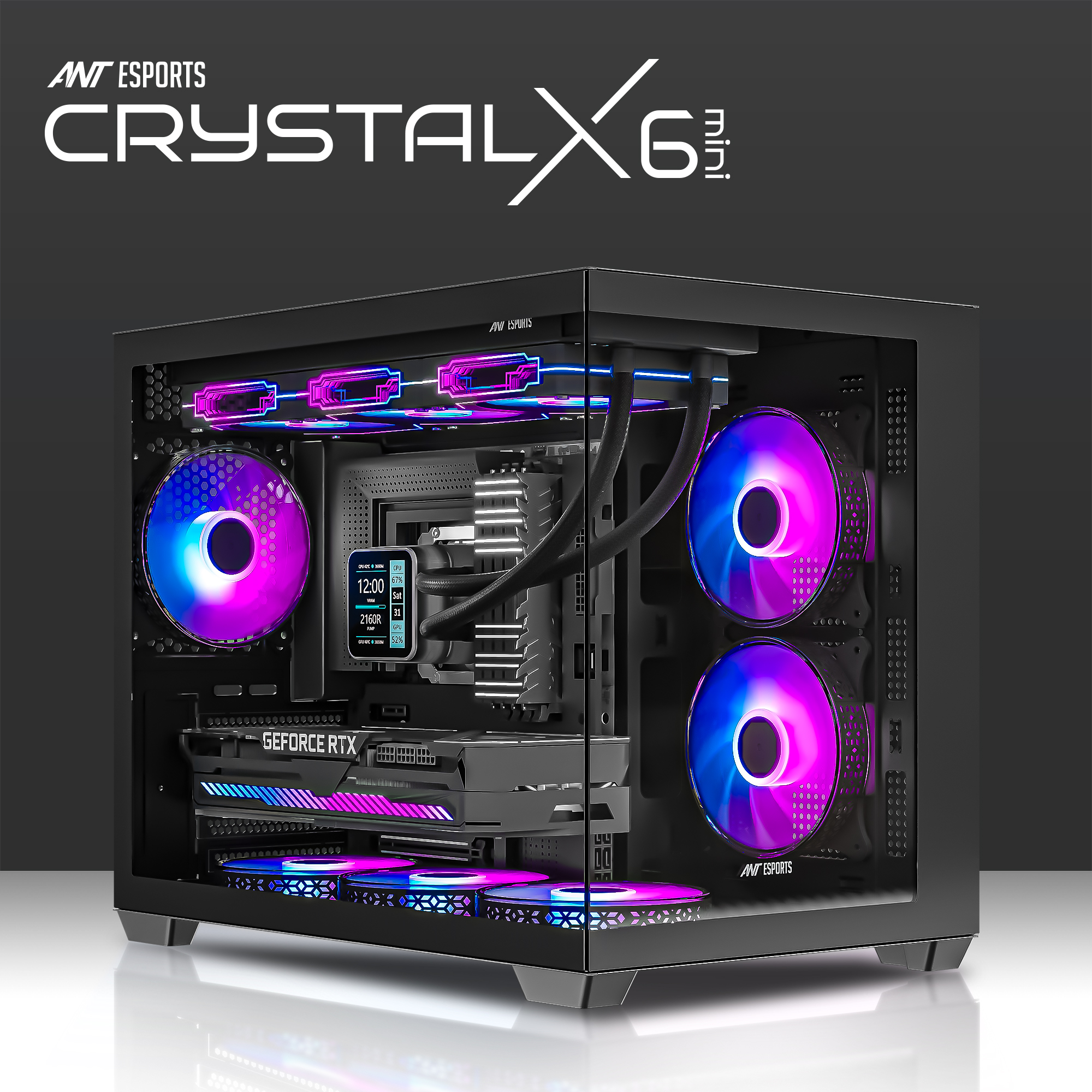

The Ant Esports Crystal X6 Mini features dual tempered glass panels that provide a crystal-clear panoramic view of your PC components, allowing your RGB setup to shine brilliantly while delivering a premium showcase aesthetic.

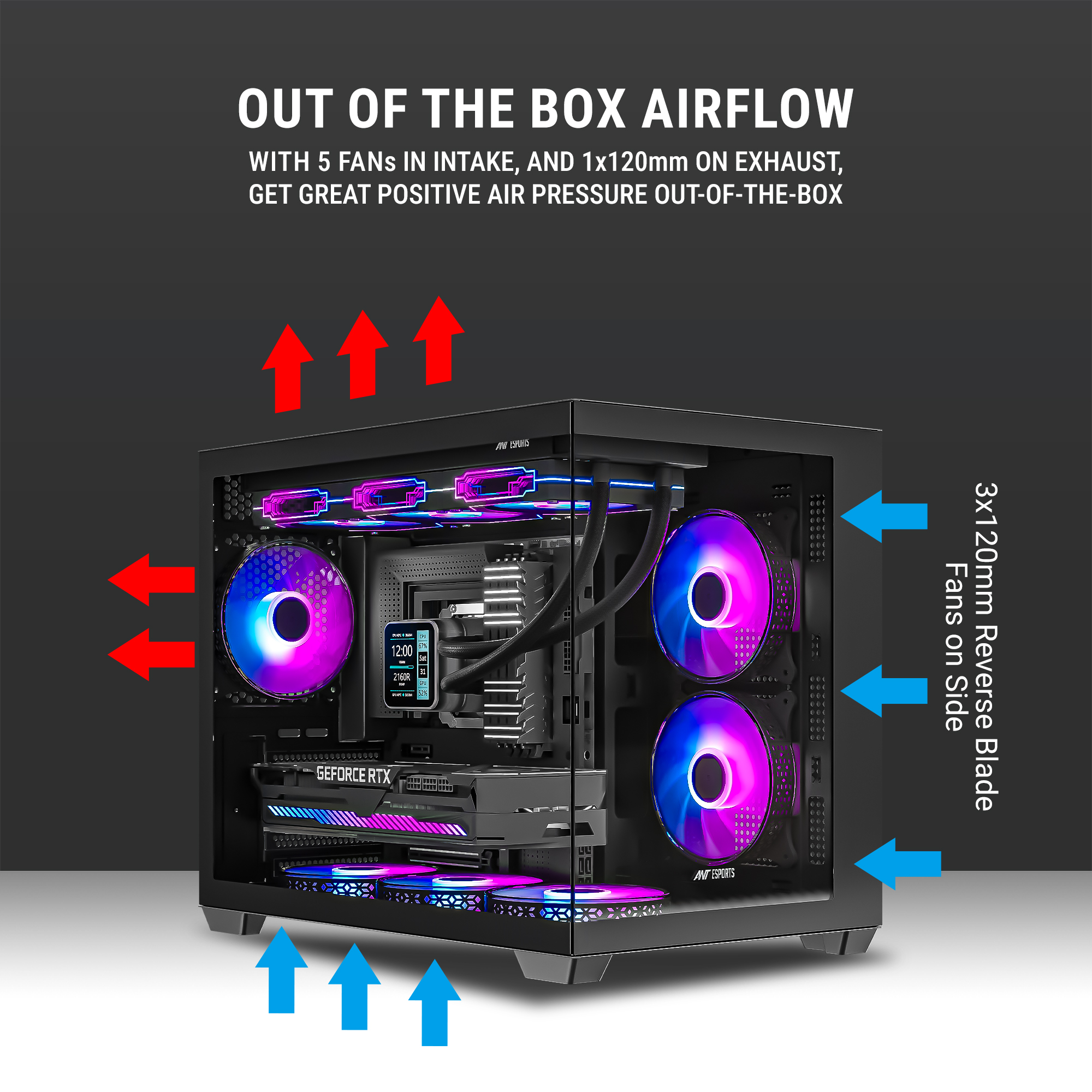

Designed for maximum airflow, the Crystal X6 Mini supports up to nine 120mm fans along with advanced liquid cooling configurations. This ensures optimal heat dissipation, keeping your high-performance components cool under intense workloads.

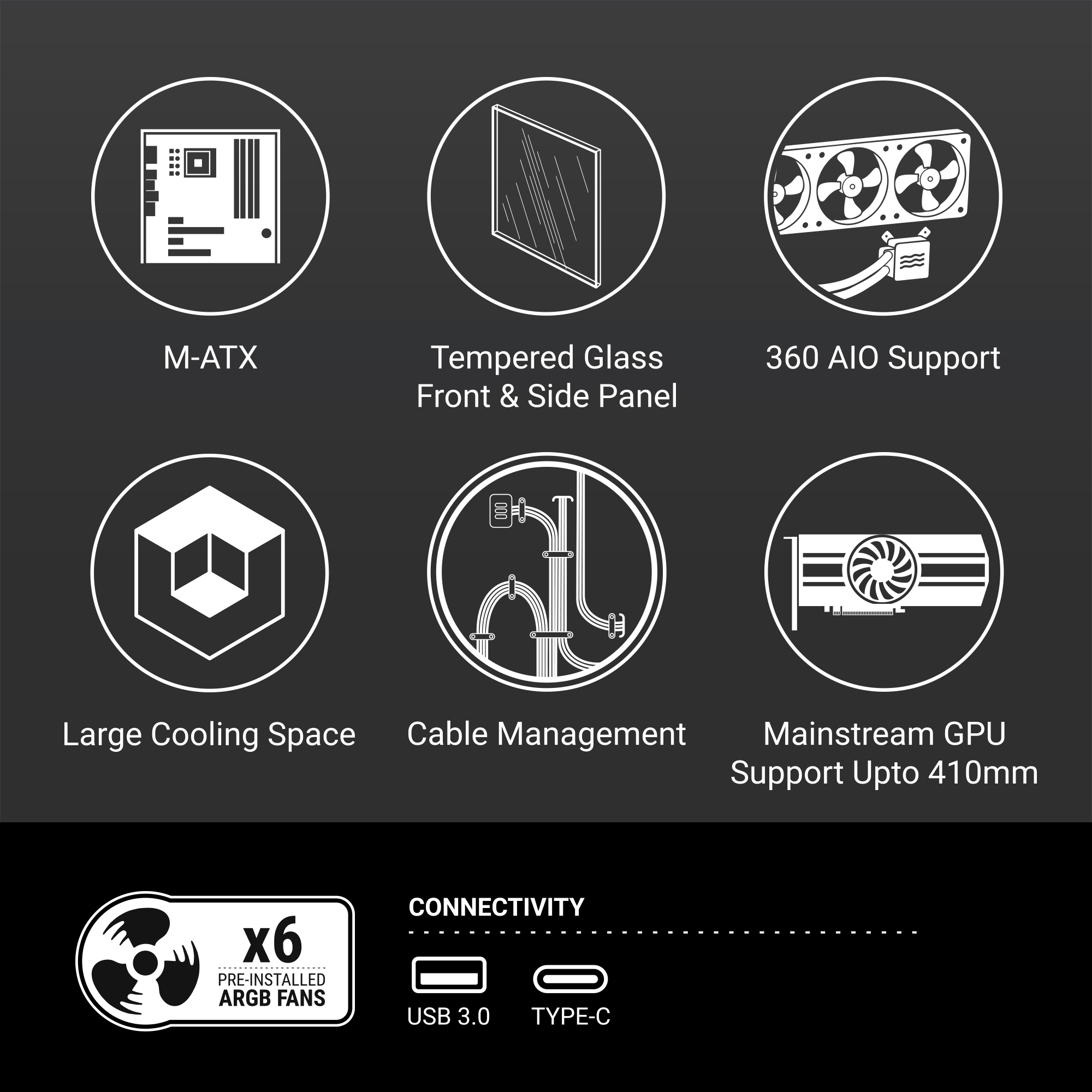

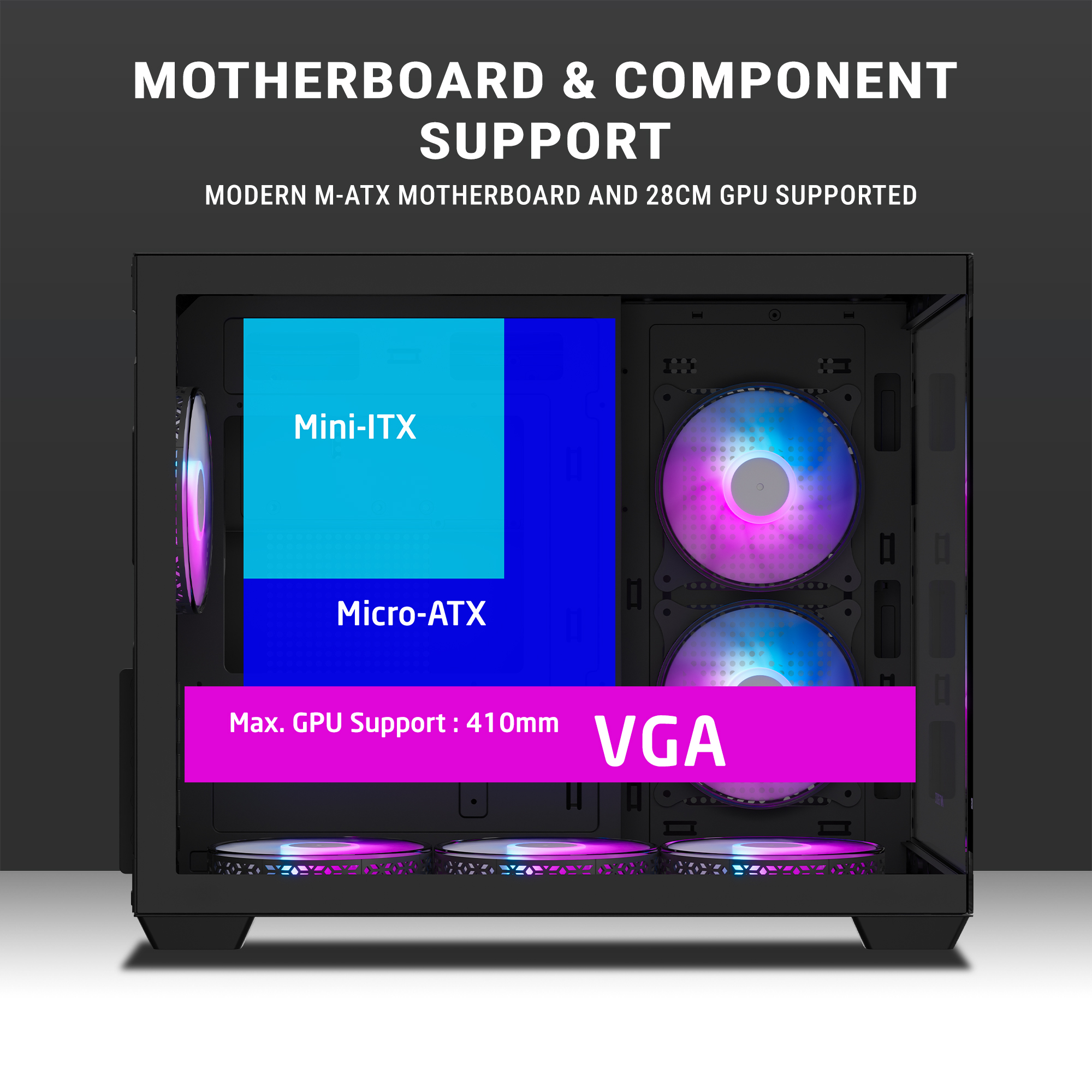

Despite its compact mini tower footprint, the cabinet supports Micro-ATX and Mini-ITX motherboards, long 410mm graphics cards, and tall 160mm CPU coolers, making it perfect for powerful gaming builds. Equipped with six pre-installed fans, including reverse airflow fans, the Crystal X6 Mini ensures immediate cooling performance while maintaining a visually stunning internal airflow pattern.
Featuring a modern I/O panel with USB Type-C, USB 3.0, and HD Audio, combined with premium ABS, SPCC steel, and tempered glass construction, the Crystal X6 Mini offers durability, performance, and style in one compact package.

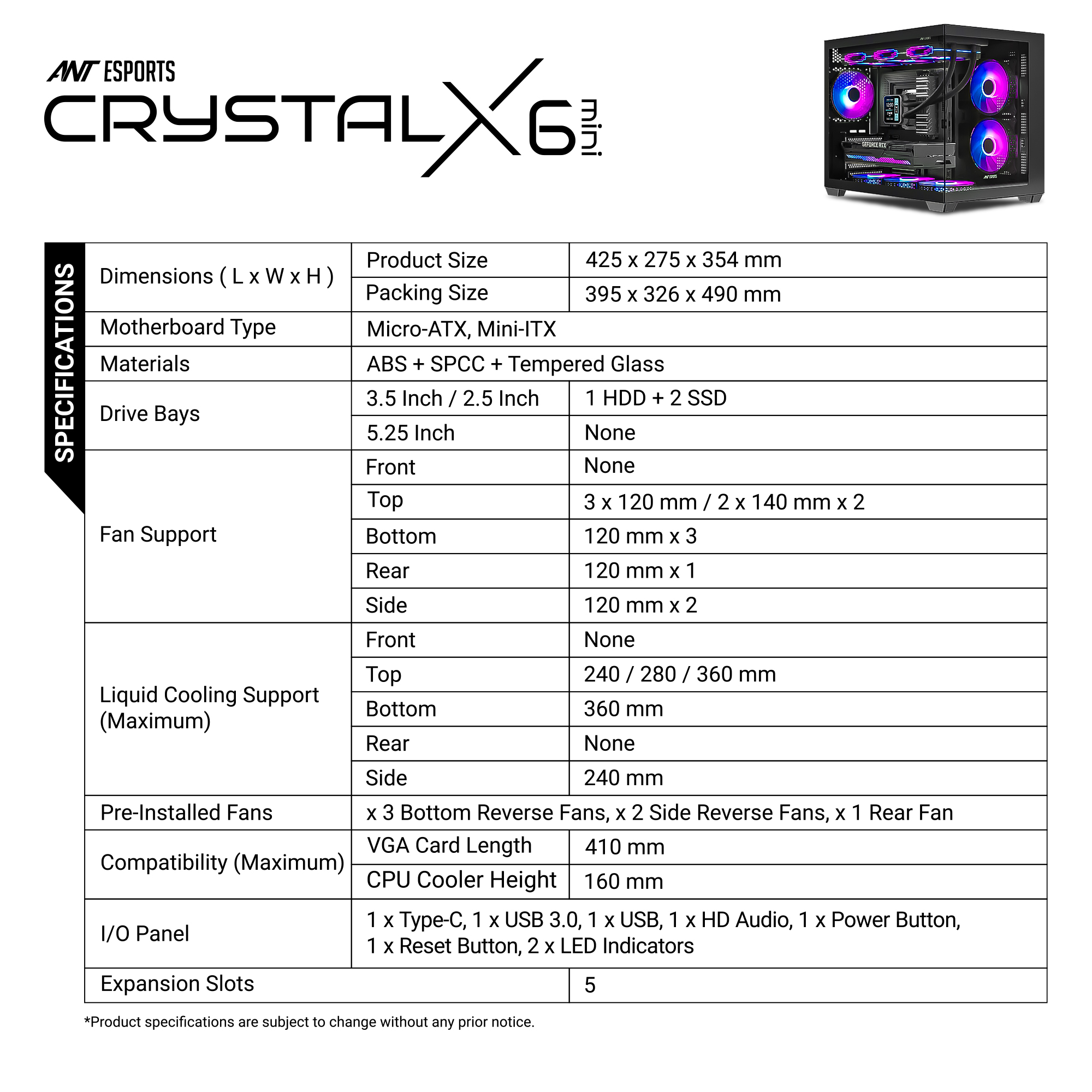

Category Specification
Product Name Ant Esports Crystal X6 Mini
Dimensions (L × W × H) 425 × 275 × 354 mm
Packing Size 395 × 326 × 490 mm
Motherboard Support Micro-ATX, Mini-ITX
Materials ABS + SPCC Steel + Tempered Glass

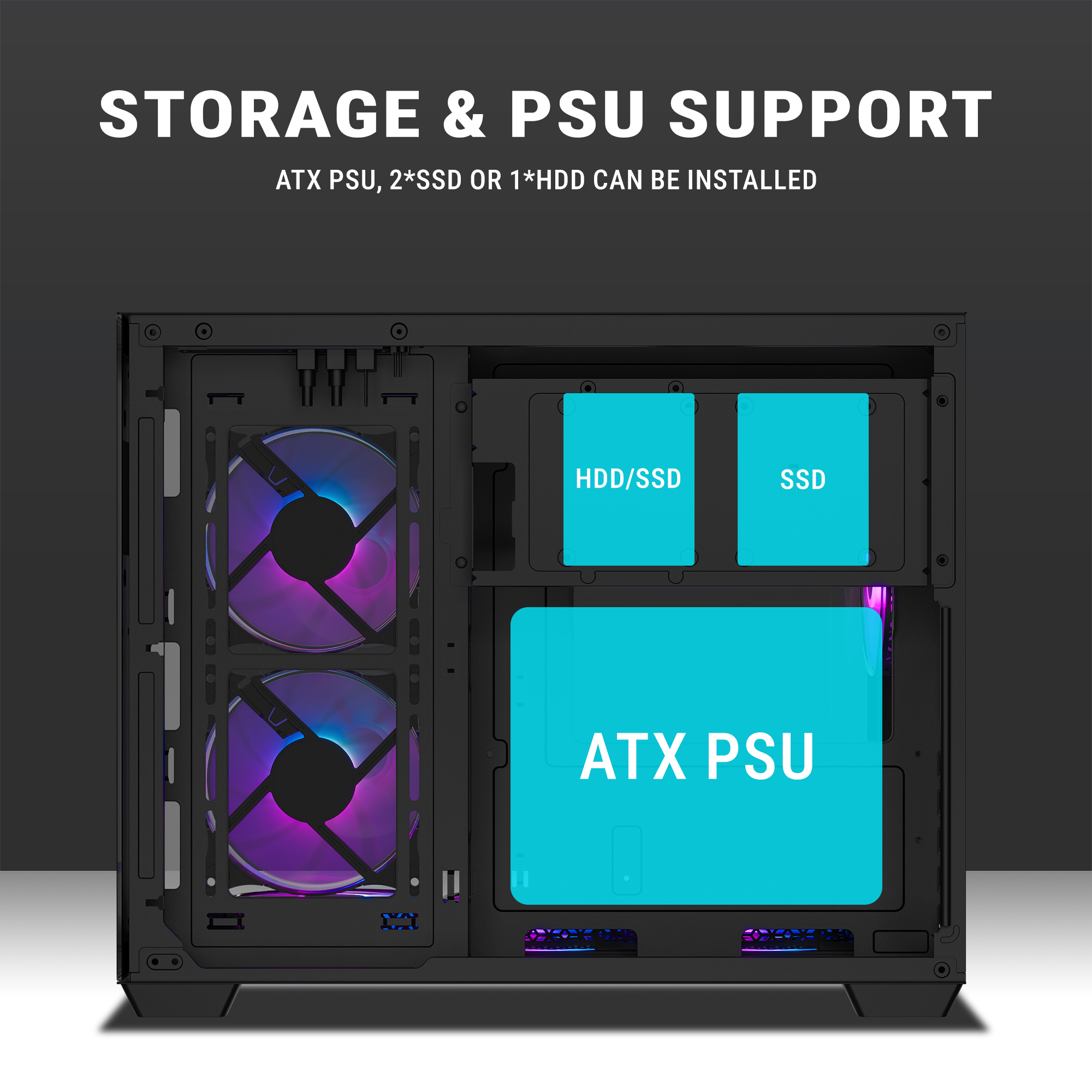

Drive Bays 1 × 3.5” HDD + 2 × 2.5” SSD
5.25” Bay None
Fan Support – Front None
Fan Support – Top 3 × 120mm / 2 × 140mm
Fan Support – Bottom 3 × 120mm
Fan Support – Rear 1 × 120mm
Fan Support – Side 2 × 120mm
Liquid Cooling – Top 240 / 280 / 360 mm
Liquid Cooling – Bottom 360 mm
Liquid Cooling – Rear None
Liquid Cooling – Side 240 mm

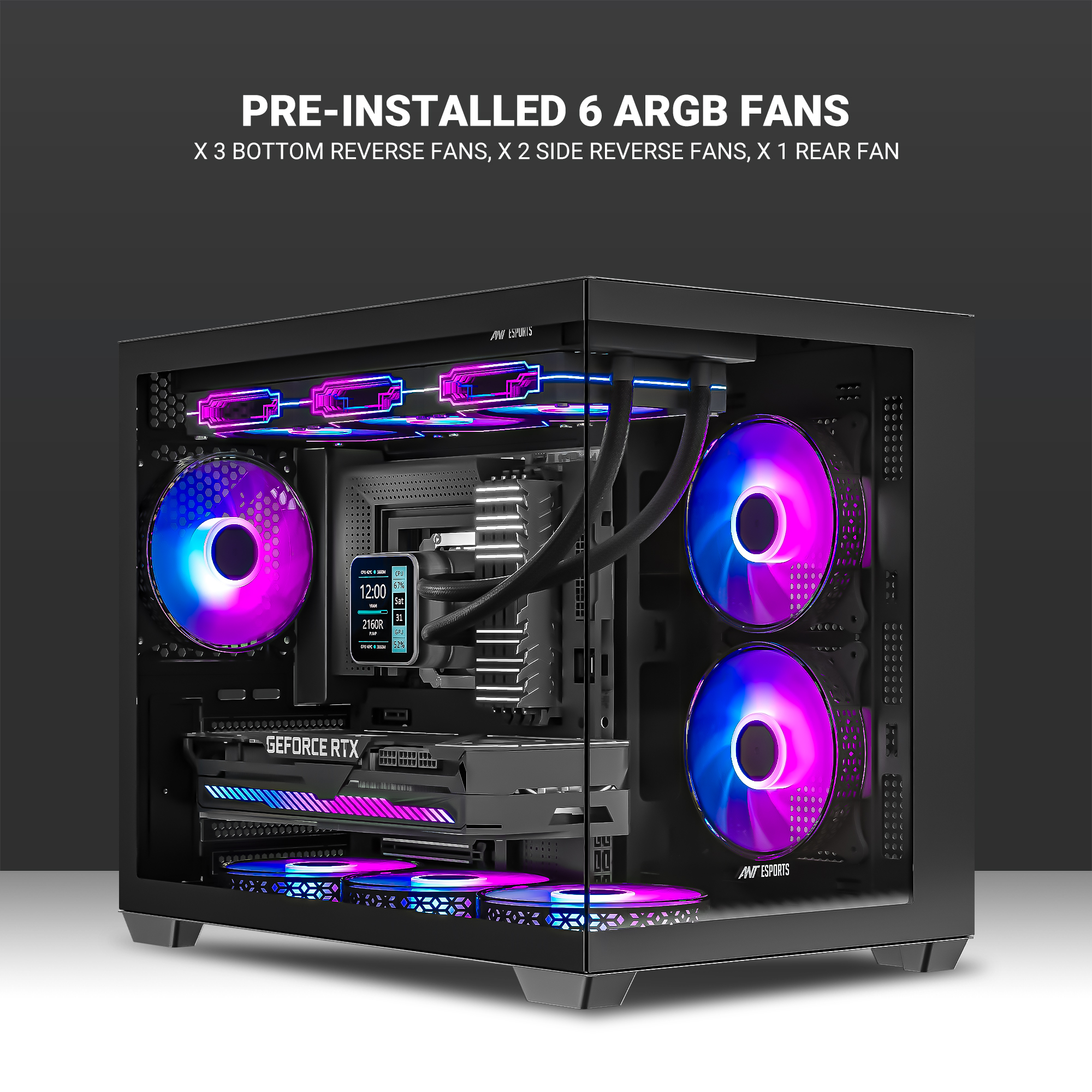

Pre-installed Fans 3 × Bottom Reverse Fans, 2 × Side Reverse Fans, 1 × Rear Fan
Max GPU Length 410 mm
Max CPU Cooler Height 160 mm

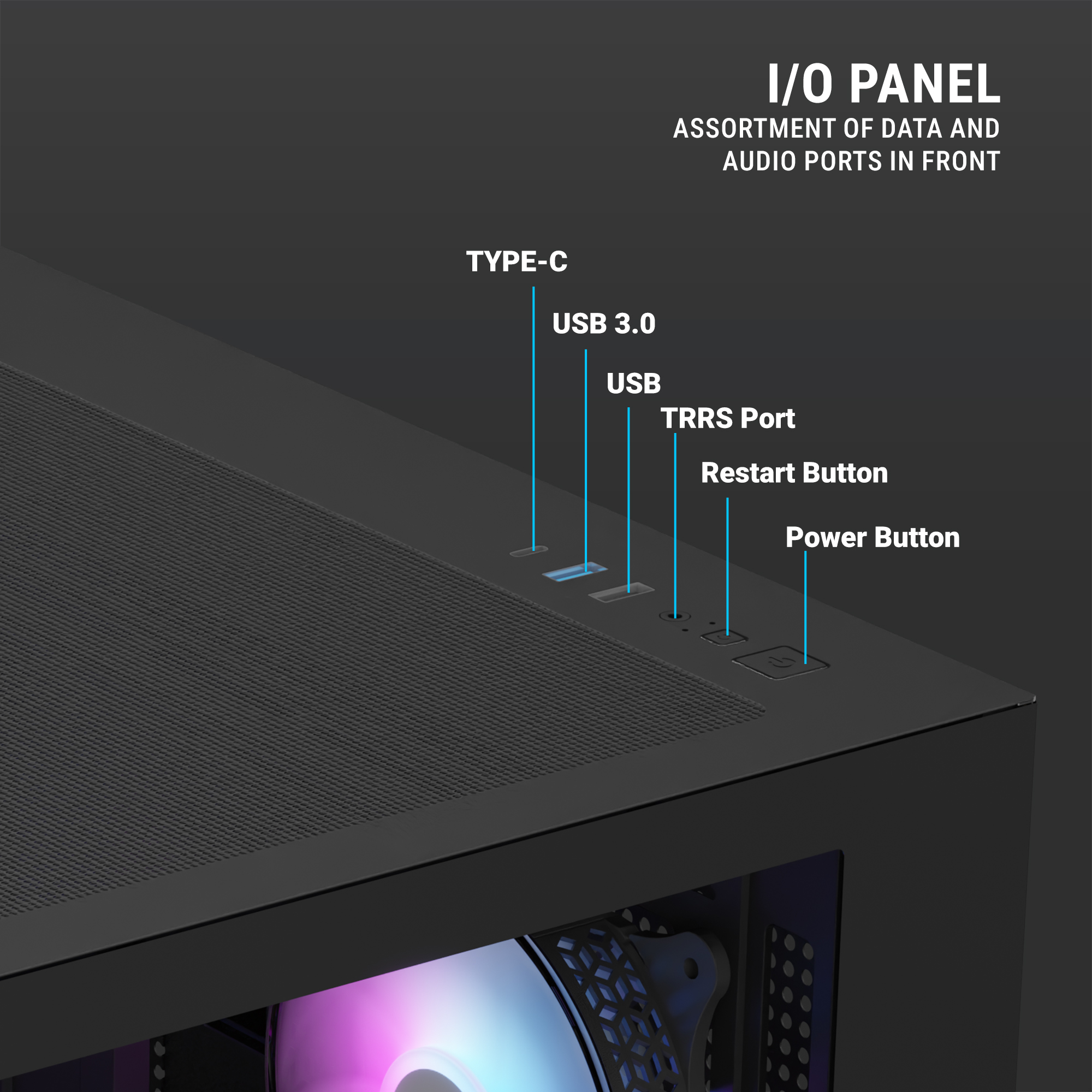

Front I/O Panel 1 × Type-C, 1 × USB 3.0, 1 × USB, 1 × HD Audio, Power Button, Reset Button, 2 × LED Indicators
Expansion Slots 5
Warranty Summary
  • 1 Year from the date of purchase
Covered in Warranty
  • Warranty is applicable on manufacturing defects (If any) for 1 Year from the date of purchase.
Not Covered in Warranty
  • Unauthorized tampering, modification or repair physical damage; water Damage or any other damage due to heat, humidity, moisture and mishandling doing operations
Service Type
  • Warranty claim along with the necessary contact information required: RMA Portal – www.antesportsrma.com
