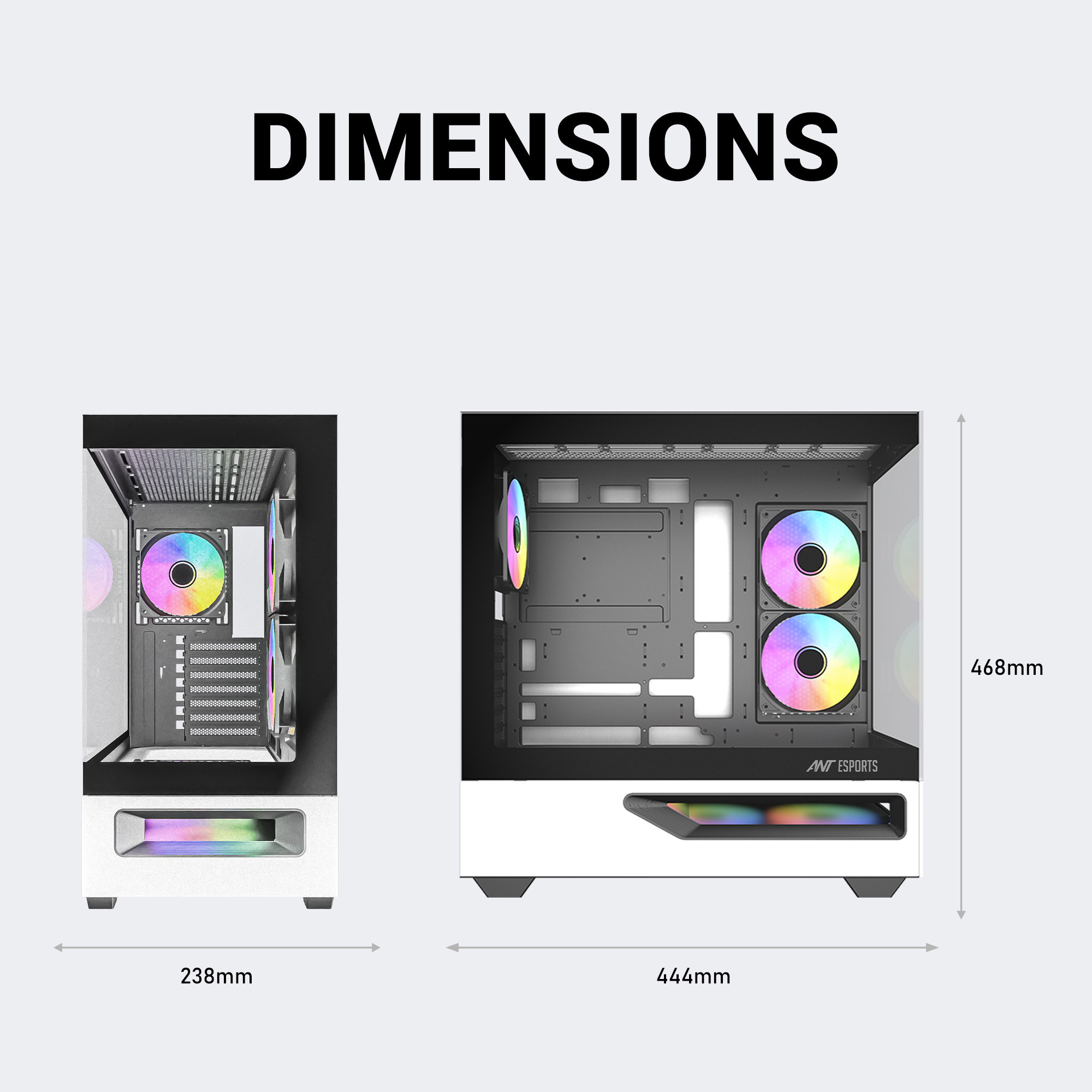

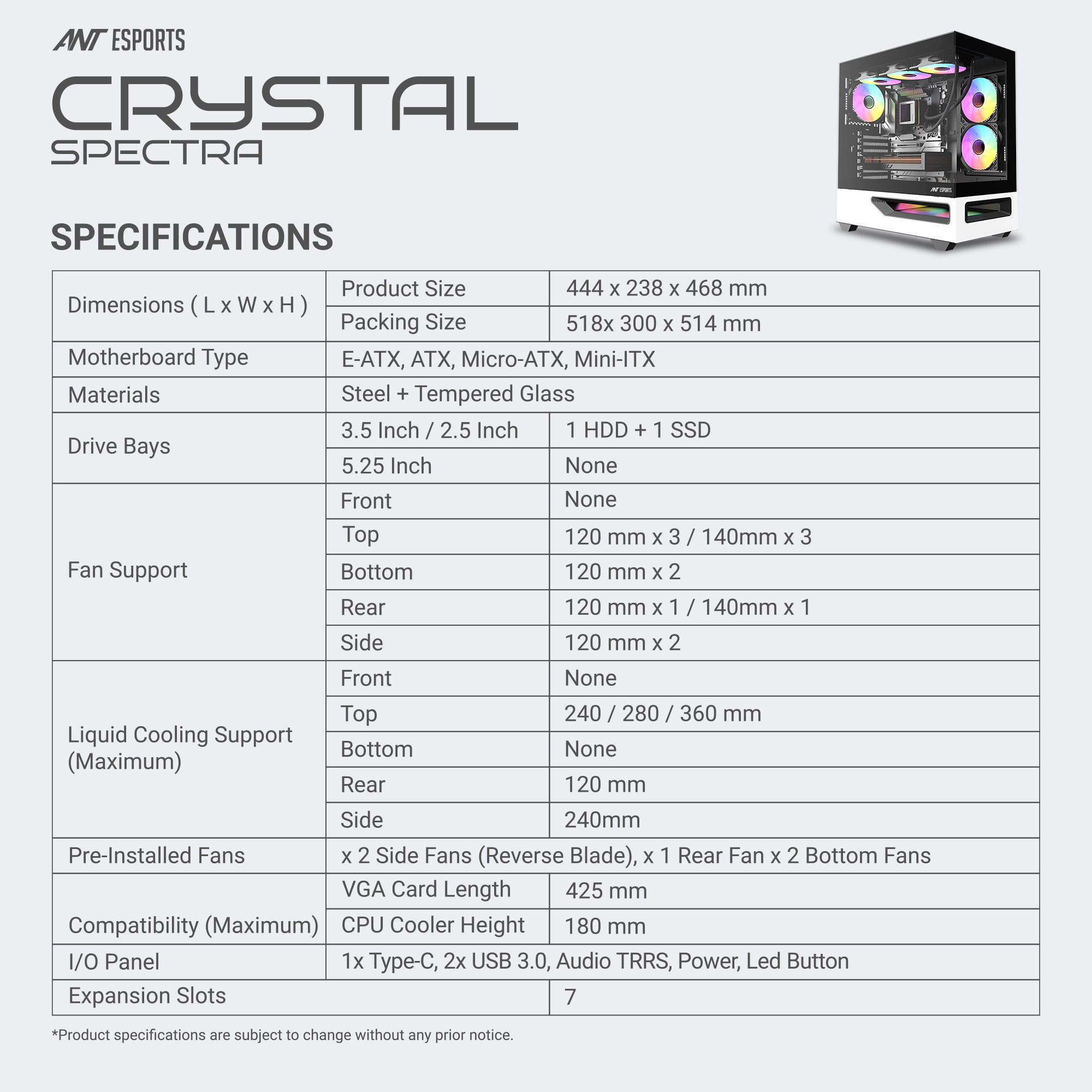

Dimensions (L x W x H)Product Size444 x 238 x 468 mm
Dimensions (L x W x H)Packing Size518 x 300 x 514 mm

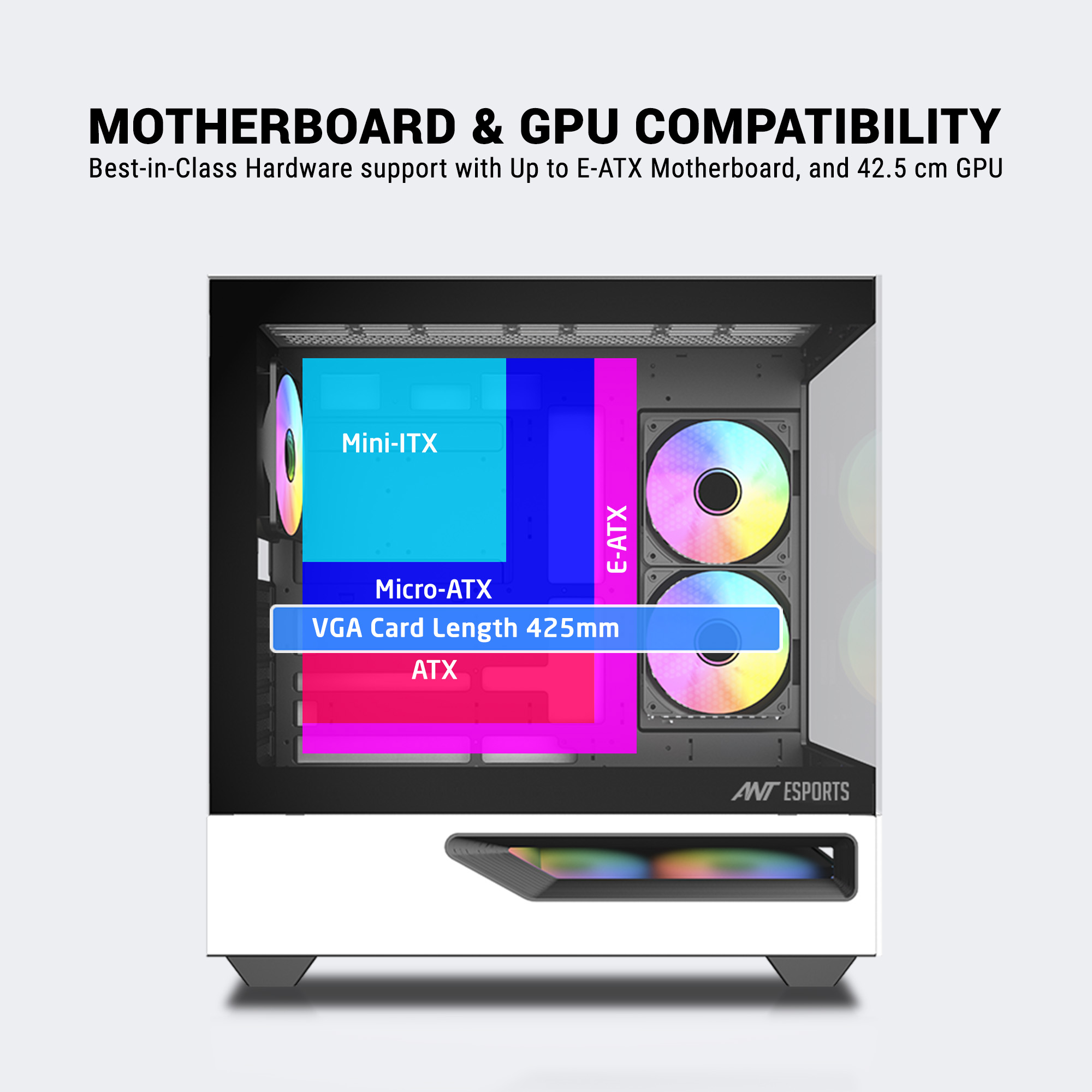

Motherboard TypeE-ATX, ATX, Micro-ATX, Mini-ITX

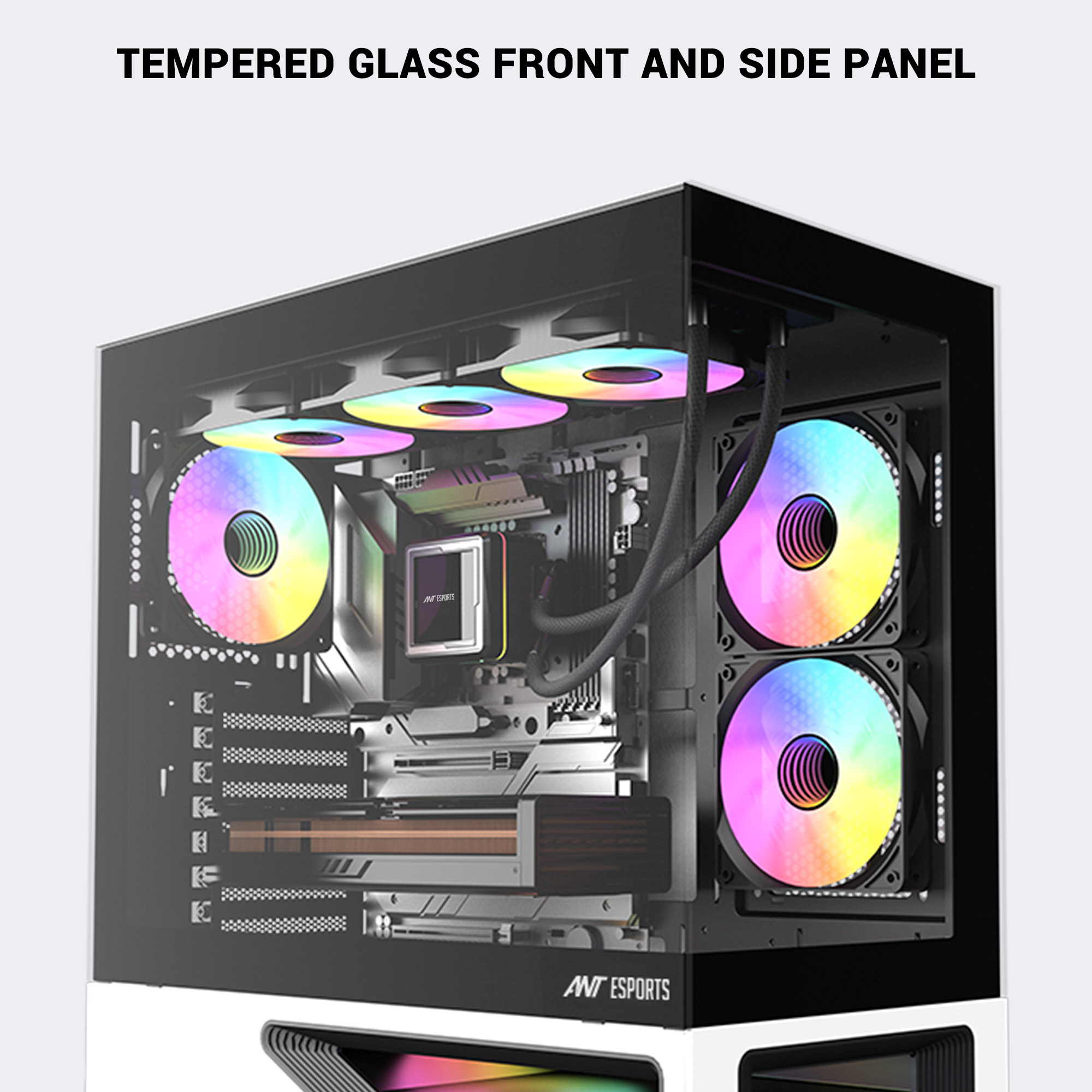

MaterialsSteel + Tempered Glass
Drive Bays3.5 Inch / 2.5 Inch1 HDD + 1 SSD
Drive Bays5.25 InchNone
Fan SupportFrontNone

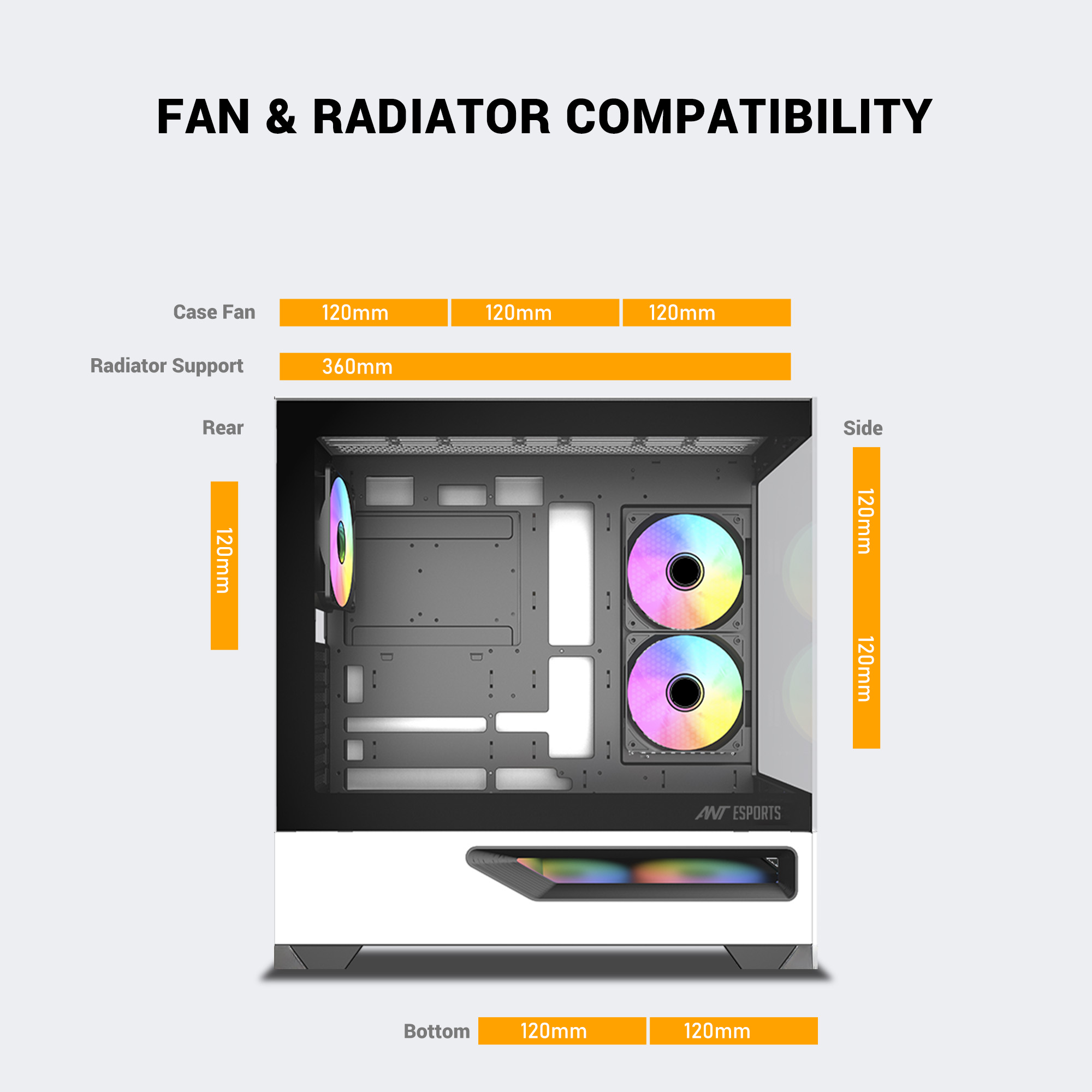

Fan SupportTop120 mm x 3 / 140 mm x 3

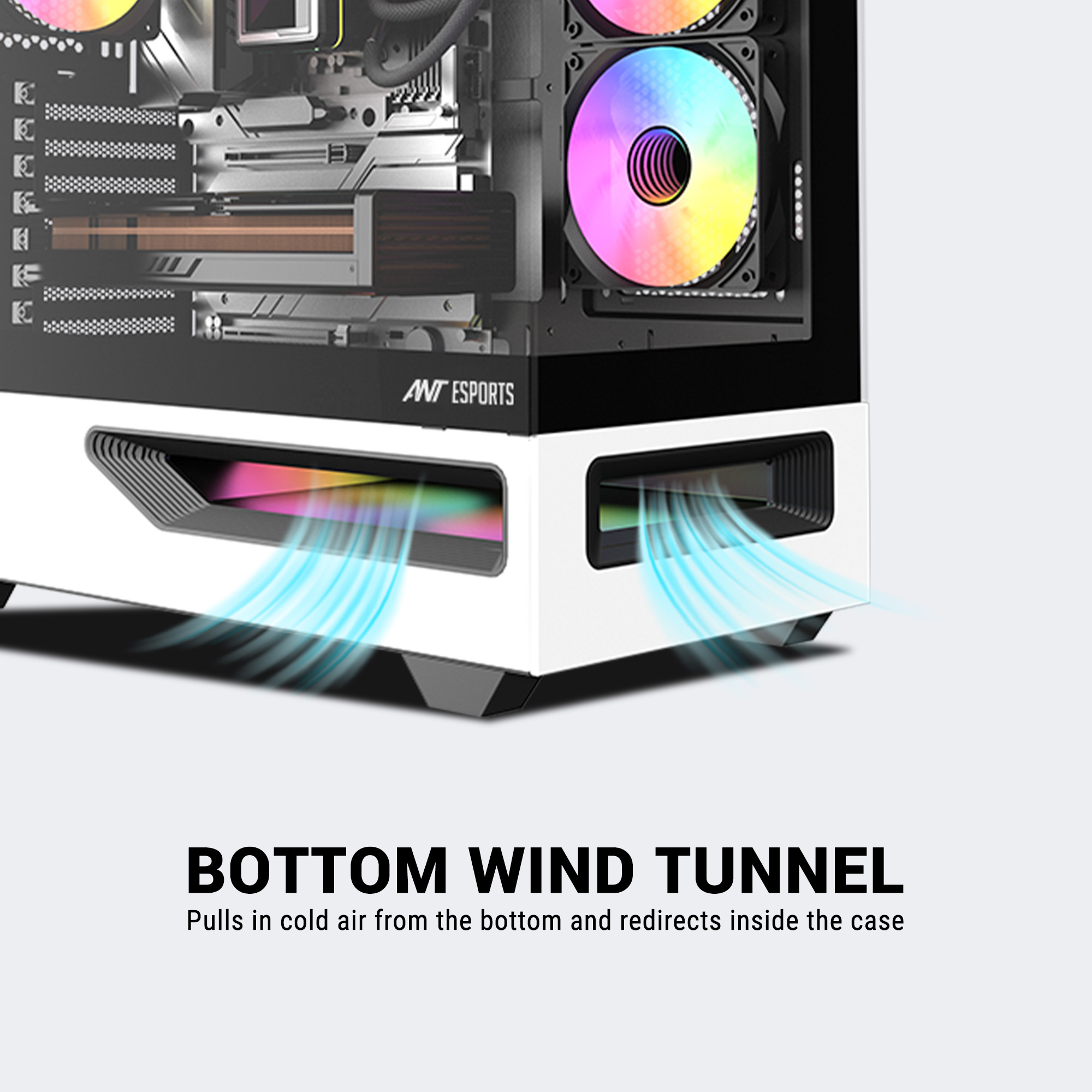

Fan SupportBottom120 mm x 2
Fan SupportRear120 mm x 1 / 140 mm x 1
Fan SupportSide120 mm x 2
Liquid Cooling Support (Maximum)FrontNone
Liquid Cooling Support (Maximum)Top240 / 280 / 360 mm
Liquid Cooling Support (Maximum)BottomNone
Liquid Cooling Support (Maximum)Rear120 mm
Liquid Cooling Support (Maximum)Side240 mm

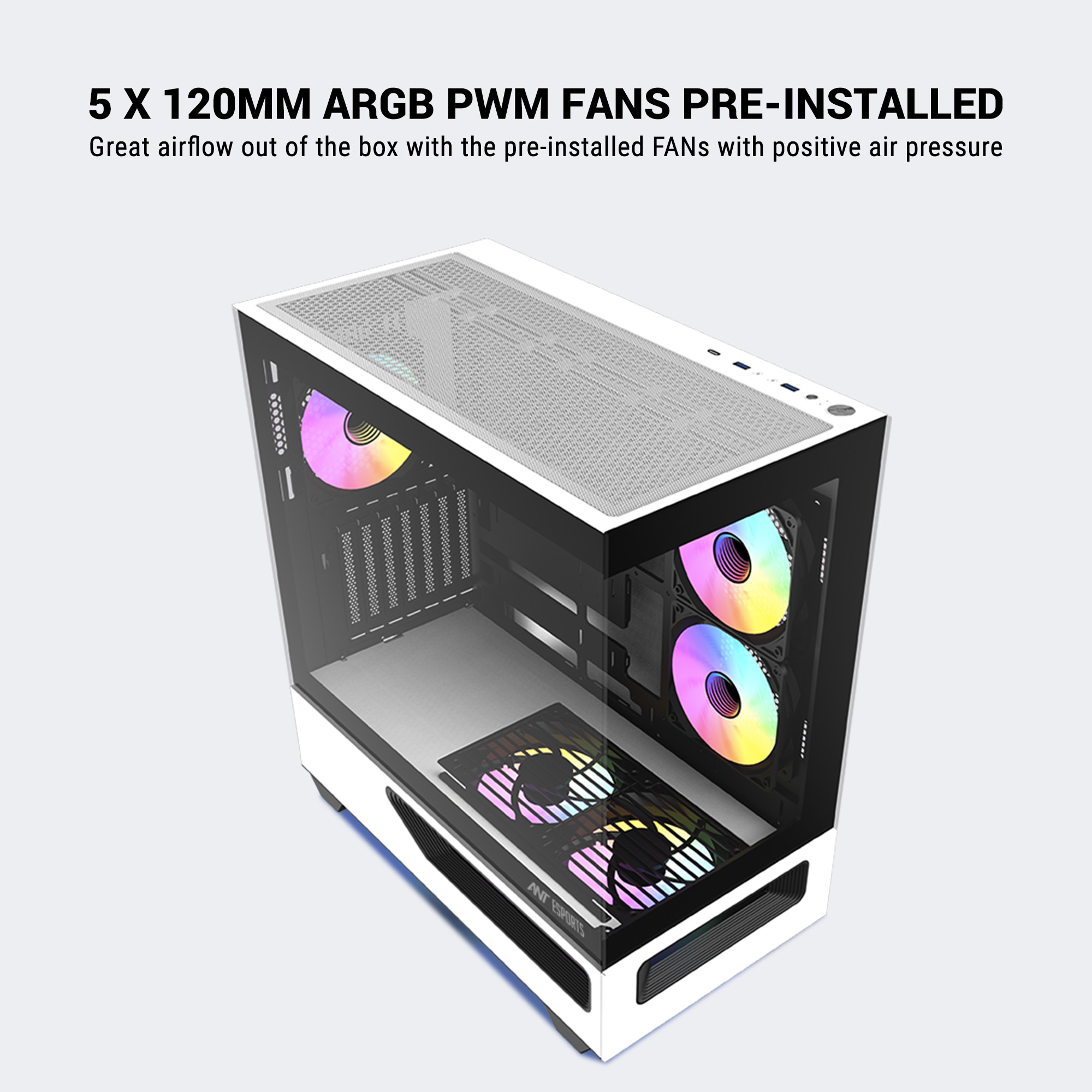

Pre-Installed Fansx 2 Side Fans (Reverse Blade), x 1 Rear Fan, x 2 Bottom Fans
Compatibility (Maximum)VGA Card Length425 mm
Compatibility (Maximum)CPU Cooler Height180 mm

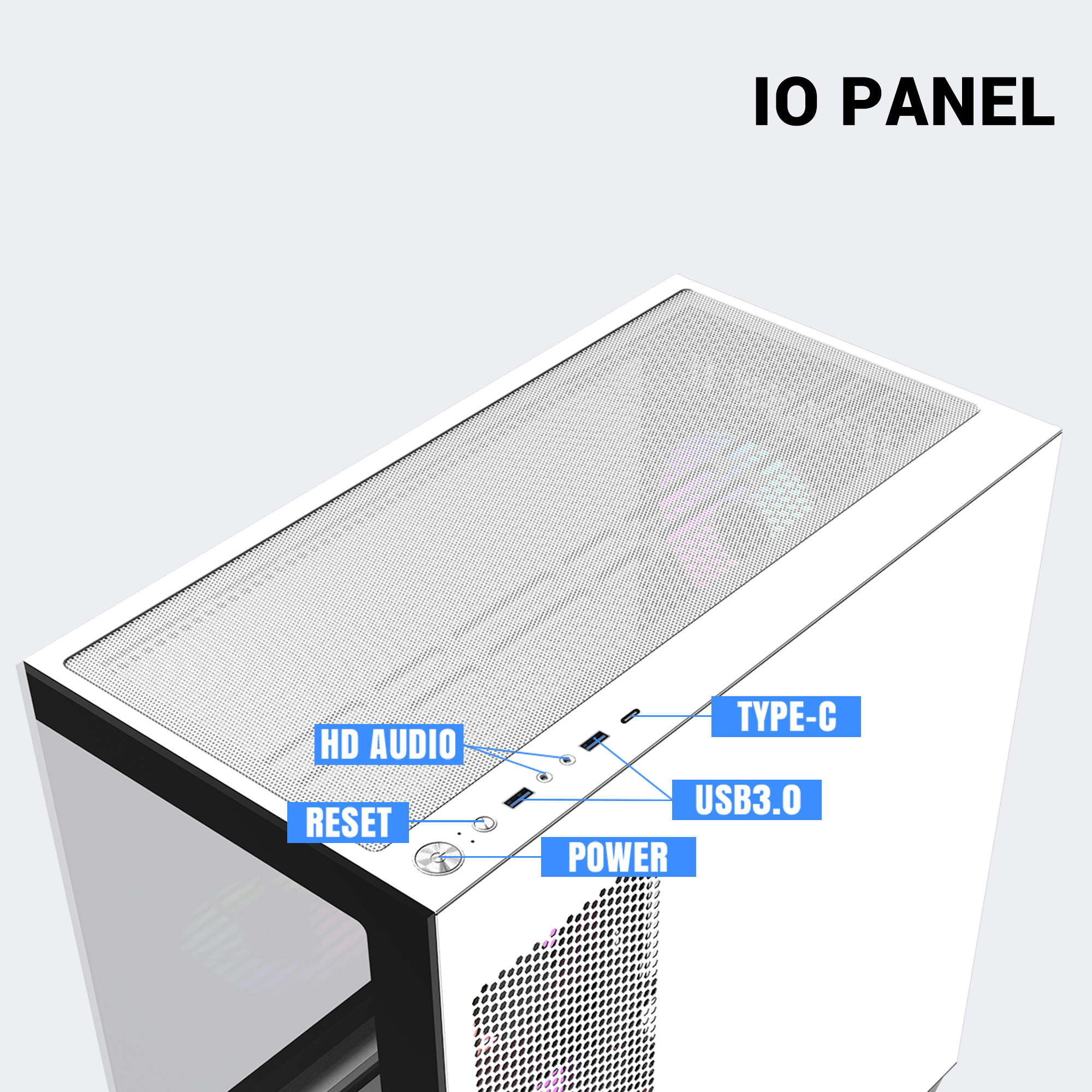

I/O Panel1x Type-C, 2x USB 3.0, Audio TRRS, Power, LED Button

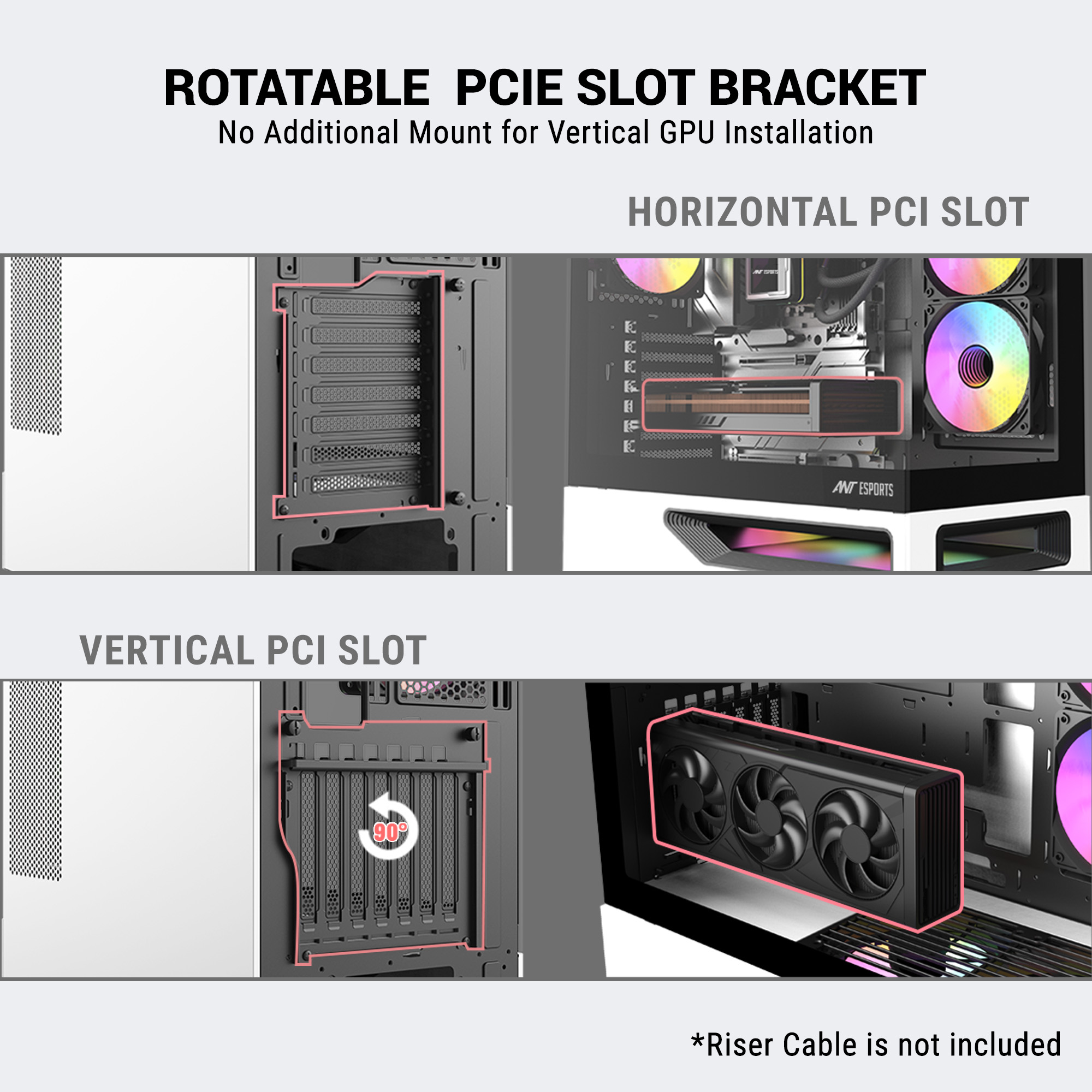

Expansion Slots7
Warranty Summary
  • 1 Year from the date of purchase
Covered in Warranty
  • Warranty is applicable on manufacturing defects (If any) for 1 Year from the date of purchase.
Not Covered in Warranty
  • Unauthorized tampering, modification or repair physical damage; water Damage or any other damage due to heat, humidity, moisture and mishandling doing operations
Service Type
  • Warranty claim along with the necessary contact information required: RMA Portal – www.antesportsrma.com
