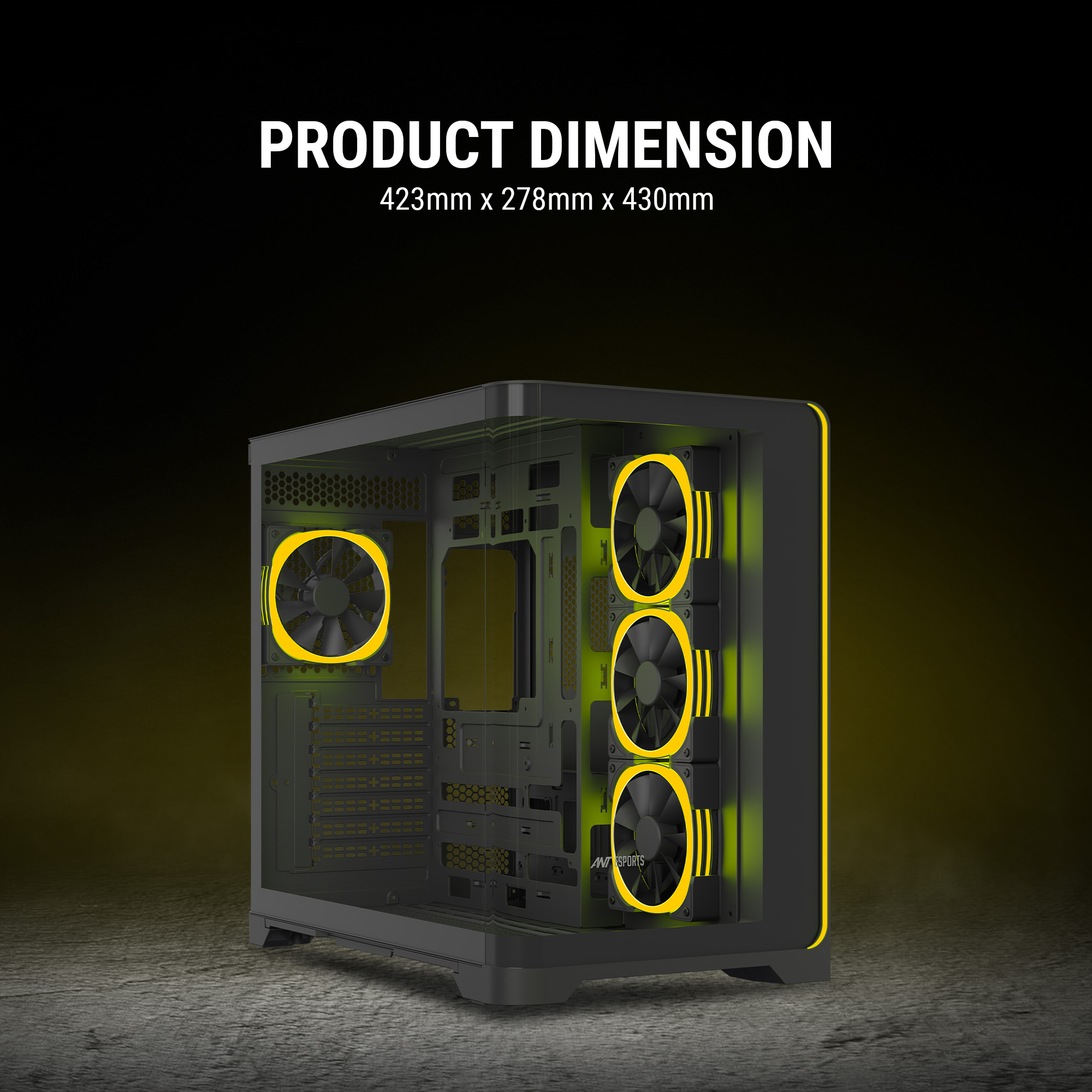

Dimensions (L x W x H)Chassis Size: 423 x 278 x 430 mm
Packing Size: 495 x 340 x 520 mm

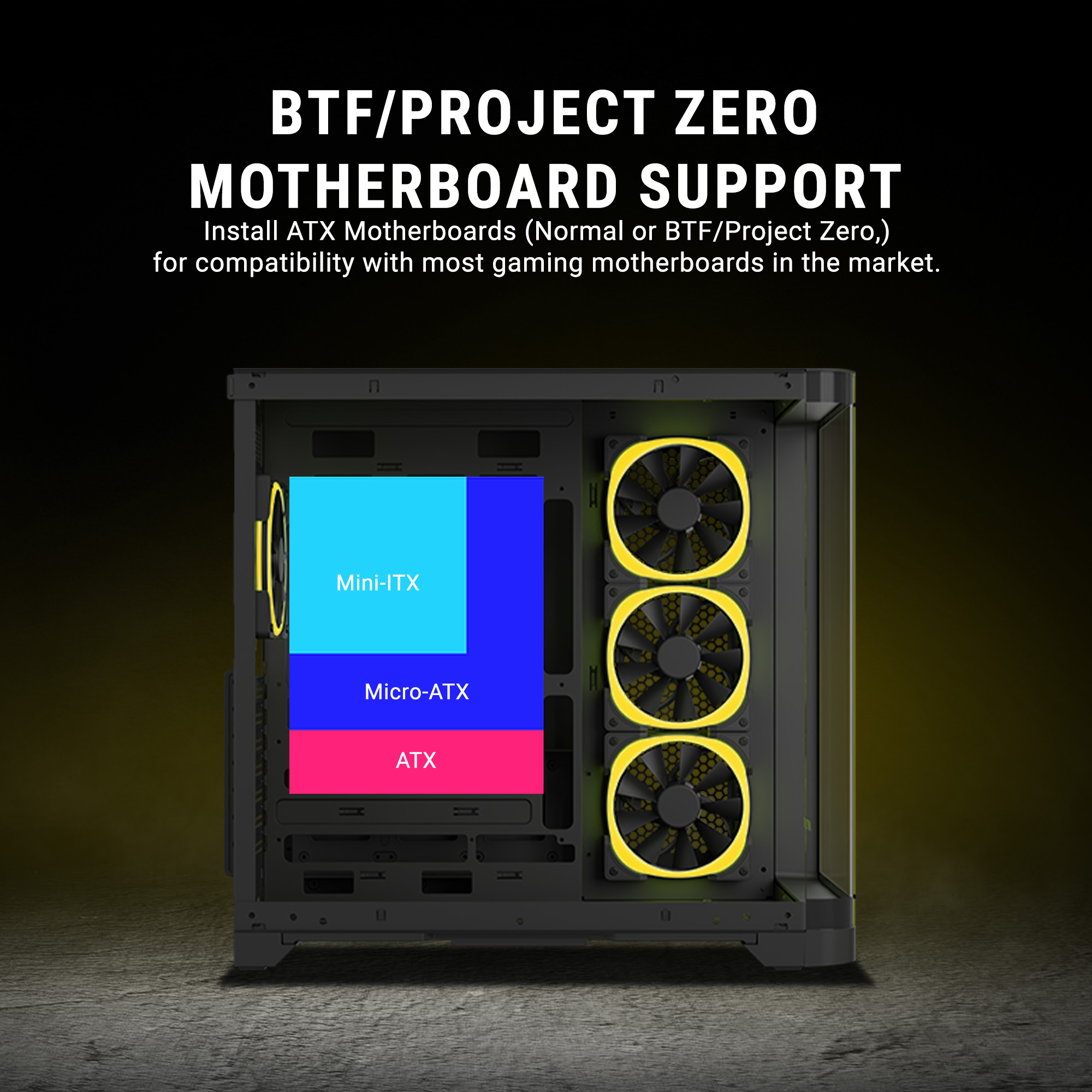

Motherboard TypeATX, Micro-ATX, Mini-ITX (BTF SUPPORTED)

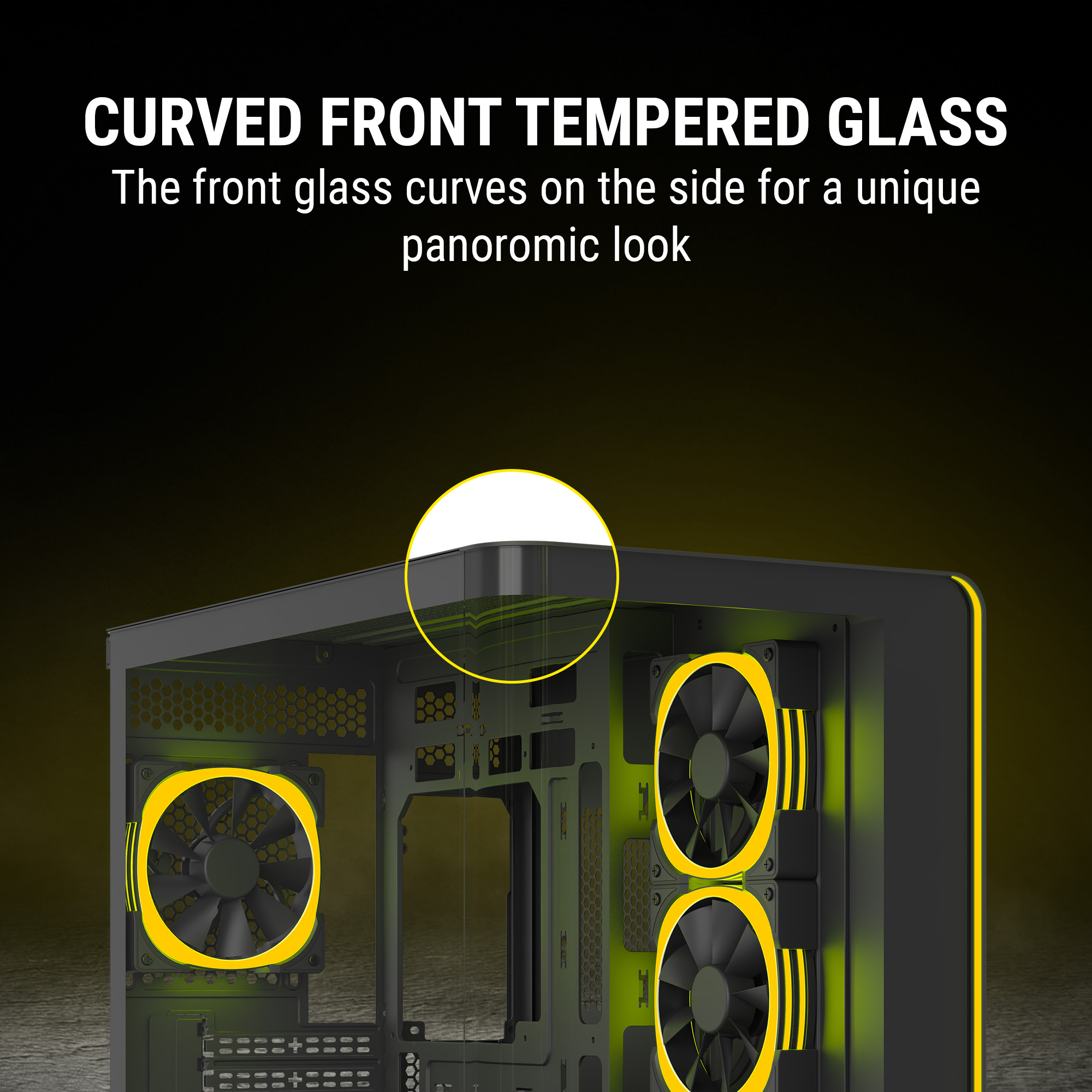

MaterialsABS + SPCC + Tempered Glass
Drive Bays3.5 Inch / 2.5 Inch: 1 HDD + 3 SSD
5.25 Inch: None

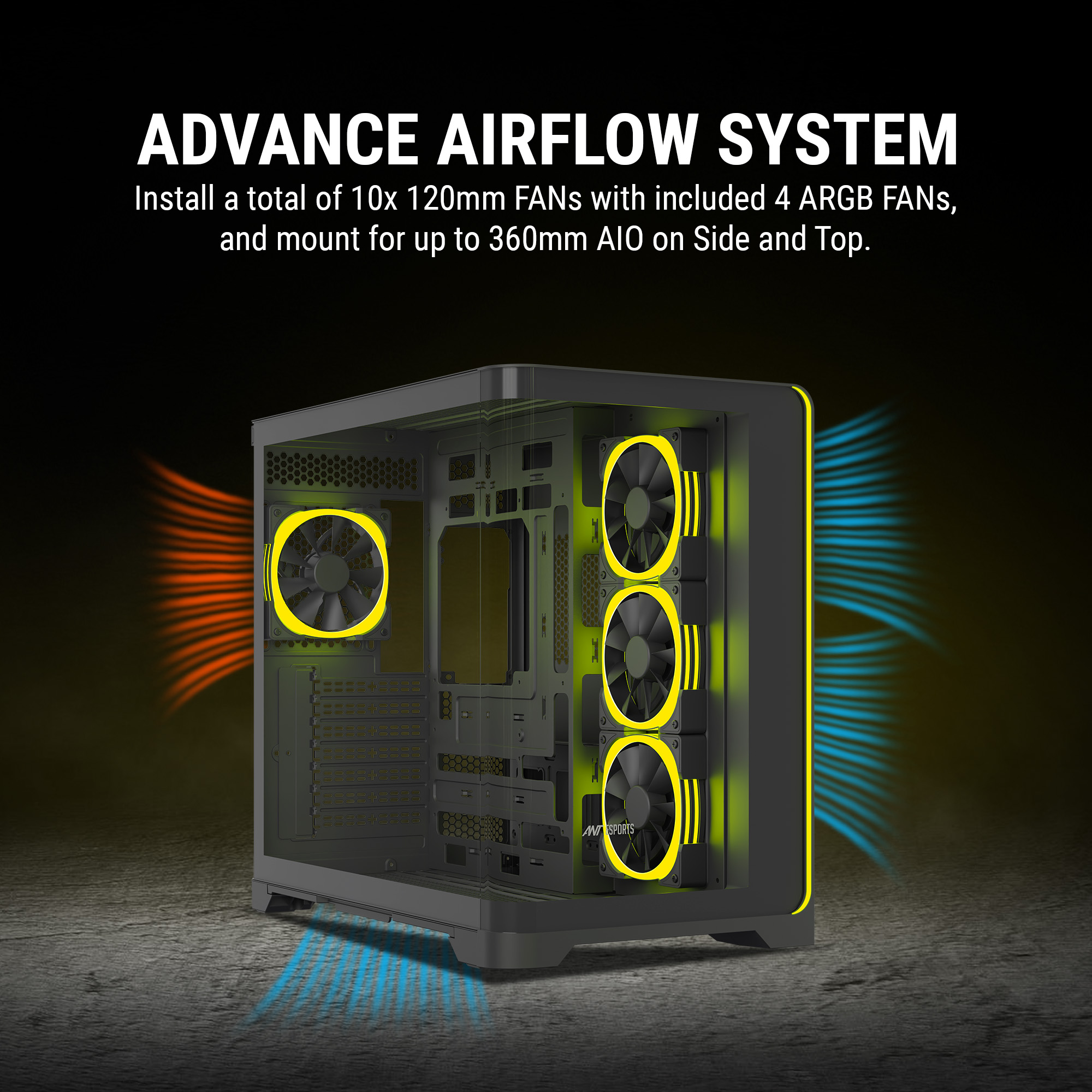

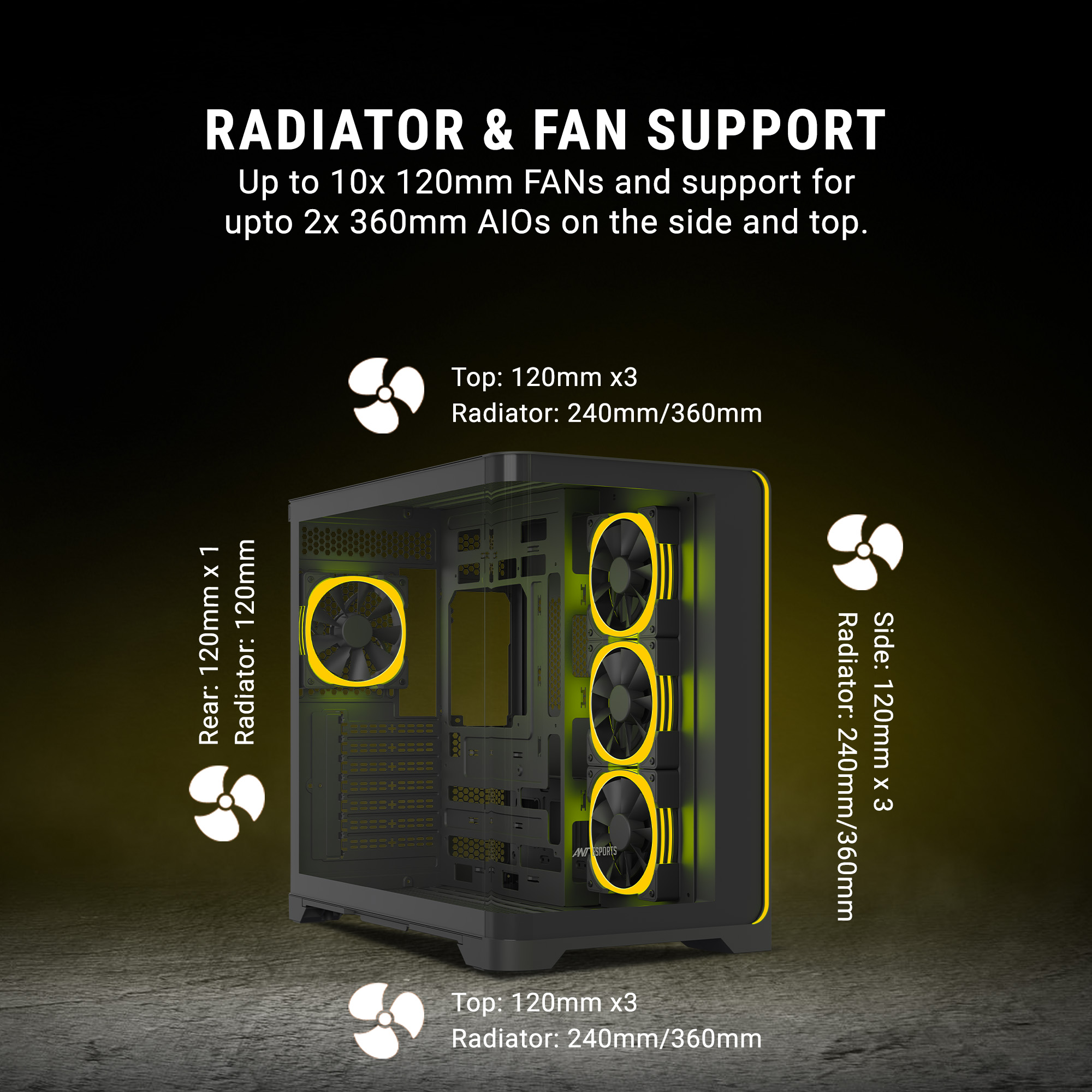

Fan SupportFront: None
Top: 120 mm x 3
Bottom: 120 mm x 3
Rear: 120 mm x 1
Side: 120 mm x 3
Liquid Cooling Support (Maximum)Front: None
Top: 120 / 240 / 280 / 360 mm
Bottom: None
Rear: 120 mm
Side: 120 / 240 / 280 / 360 mm
Pre-Installed Fans3 x Side Fans, 1 x Rear Fan

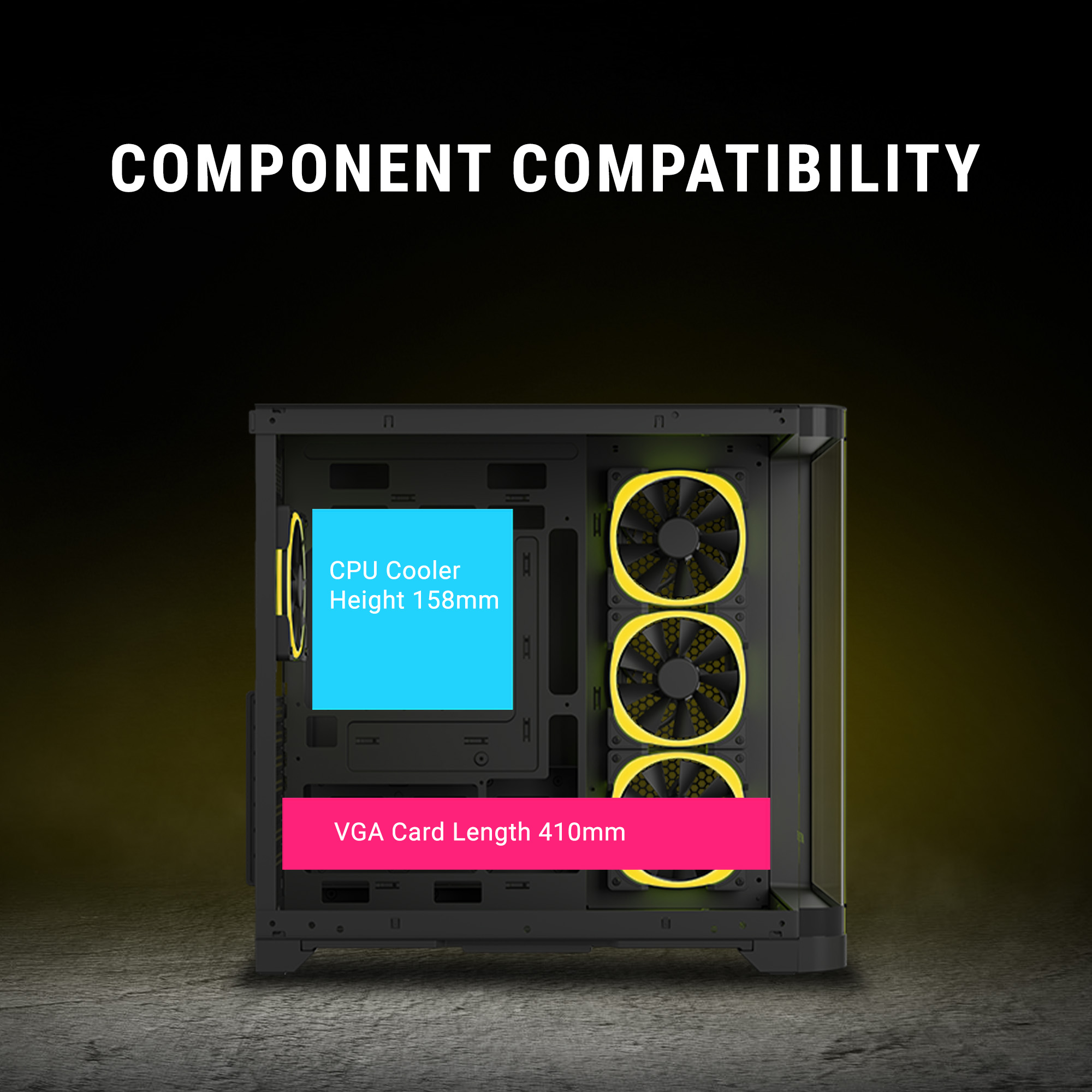

Compatibility (Maximum)VGA Card Length: 410 mm
CPU Cooler Height: 158 mm

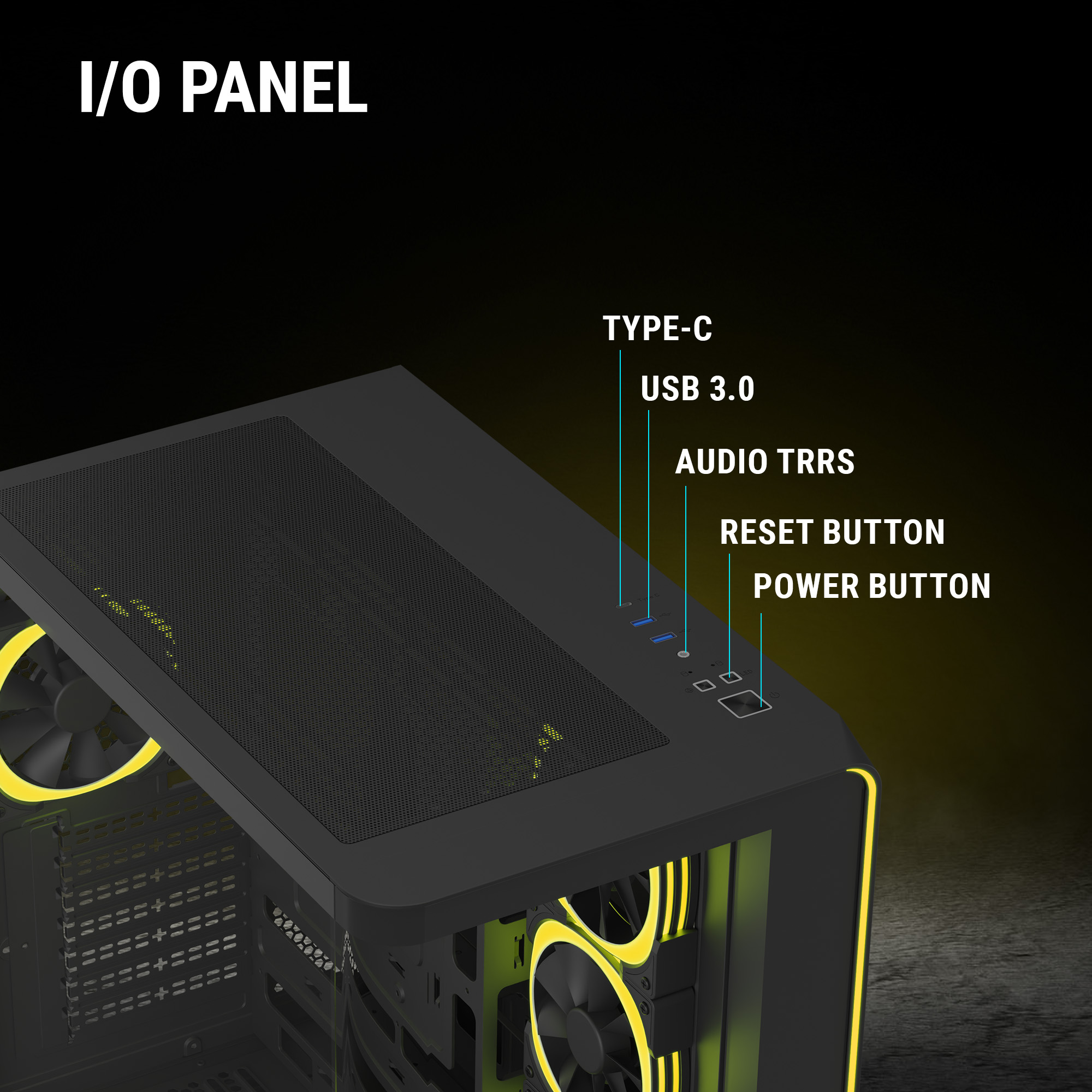

I/O Panel2 x USB 3.0
1 x Type-C
1 x HD Audio
LED Button, Indicators, Power & Reset Button

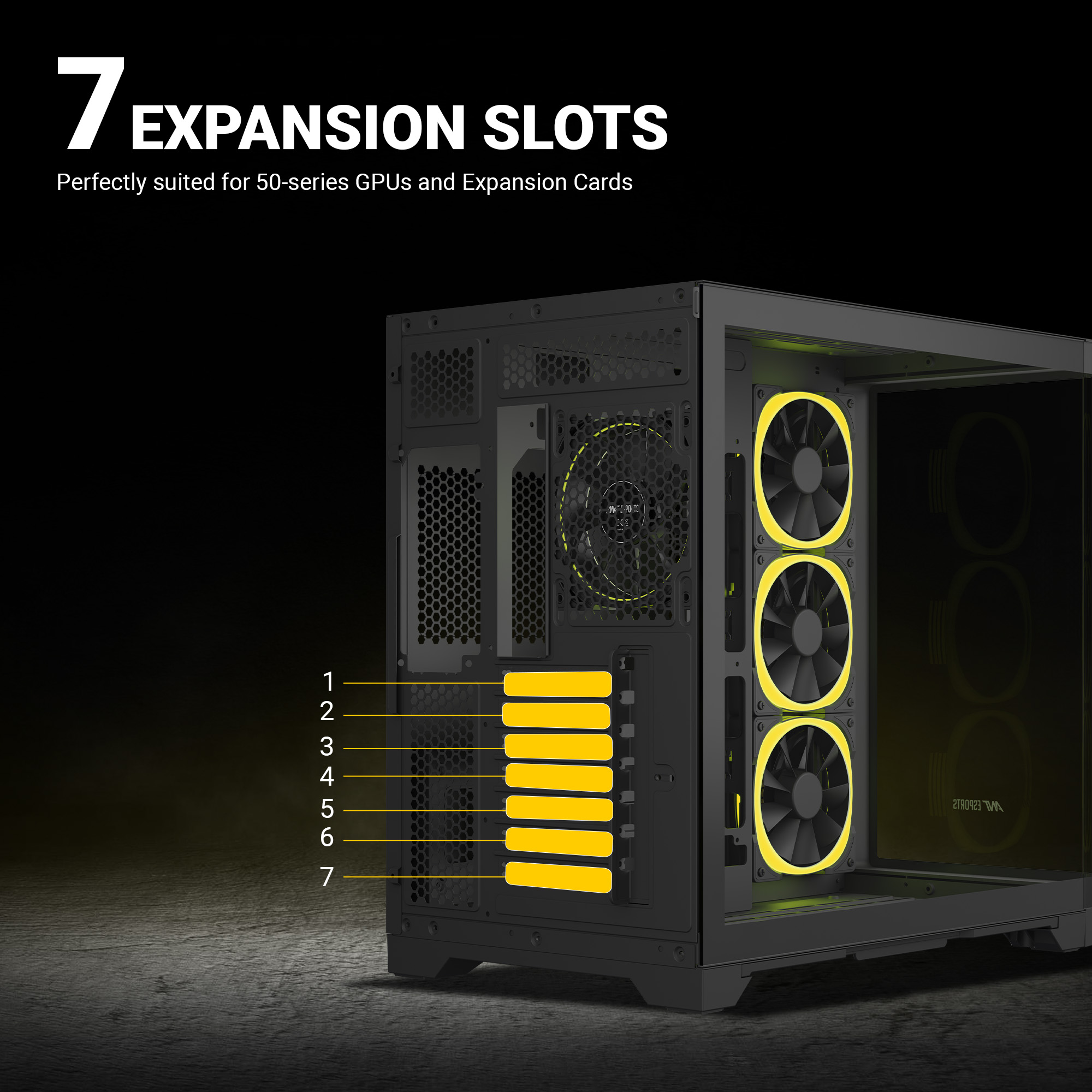

Expansion Slots7
Warranty Summary
  • 1 Year from the date of purchase
Covered in Warranty
  • Warranty is applicable on manufacturing defects (If any) for 1 Year from the date of purchase.
Not Covered in Warranty
  • Unauthorized tampering, modification or repair physical damage; water Damage or any other damage due to heat, humidity, moisture and mishandling doing operations
Service Type
  • Warranty claim along with the necessary contact information required: RMA Portal – www.antesportsrma.com
